Installing the SG6000-CN controller in a cabinet or rack
You must install a set of rails for the SG6000-CN controller in your cabinet or rack, and then slide
the controller onto the rails.
Before you begin
• You have reviewed the Safety Notices document included in the box, and understand the
precautions for moving and installing hardware.
• You have the instructions packaged with the rail kit.
• You have installed the E2860 controller shelf and drives.
About this task
Caution: Install hardware from the bottom to the top of the rack or cabinet to prevent the
equipment from tipping over. To ensure that the heaviest equipment is at the bottom of the cabinet
or rack, install the SG6000-CN controller above the E2860 controller shelf.
Attention: If you are installing multiple SG6060 appliances in the same rack, consider installing
all the E2860 controller shelves toward the bottom, and the SG6000-CN controllers toward the top.
Before committing to the installation, verify that the 0.5m optic cables shipped with the SG6060
appliance, or cables that you supply, are long enough for the planned layout.
Steps
1. Carefully follow the instructions for the rail kit to install the rails in your cabinet or rack.

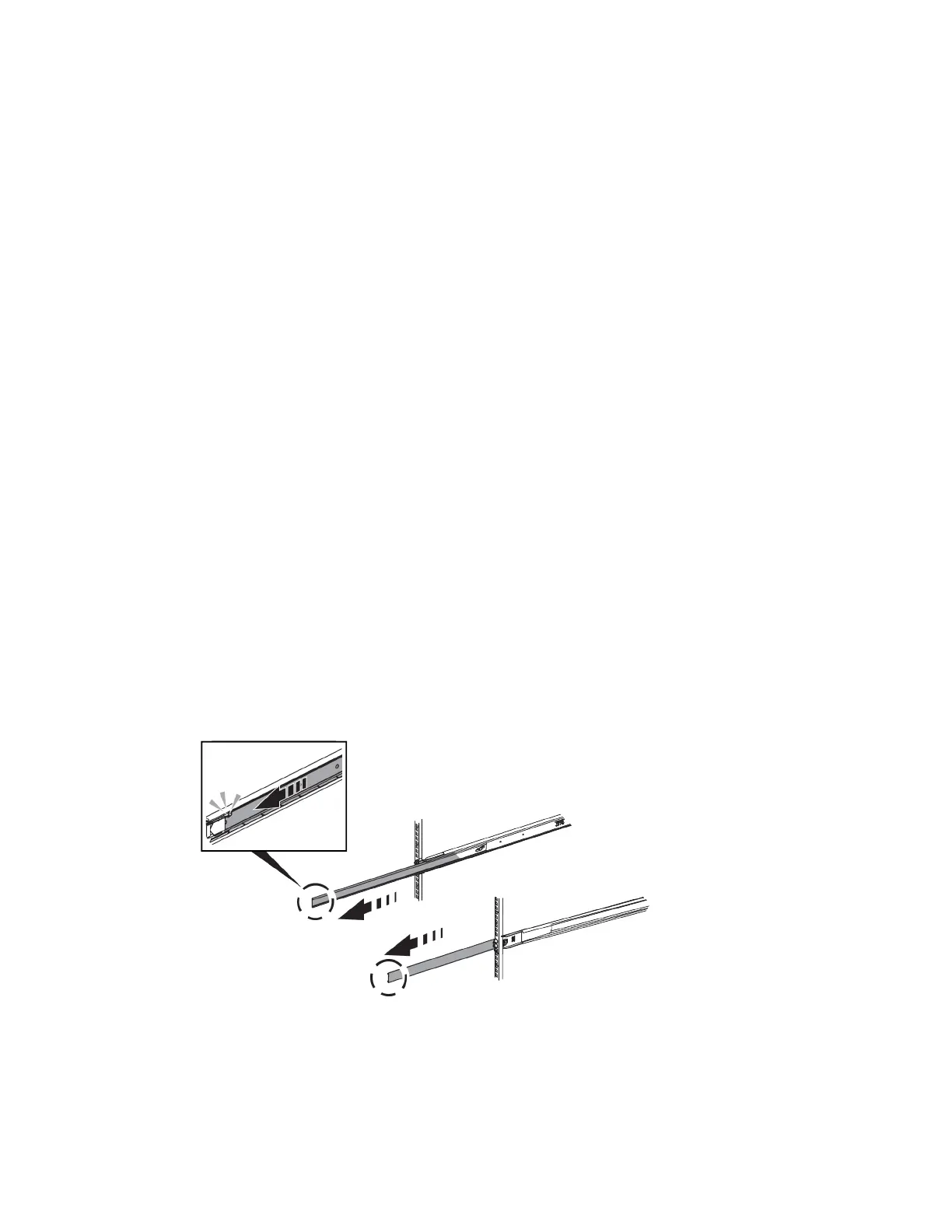

2. On the two rails installed in the cabinet or rack, extend the movable parts of the rails until you
hear a click.
3. Insert the SG6000-CN controller into the rails.
4. Slide the controller into the cabinet or rack.
When you cannot move the controller any further, pull the blue latches on both sides of the
chassis to slide the controller all the way in.
28
| Hardware Installation and Maintenance Guide for SG6000 Appliances
