g. Insert the battery into the controller at a slight downward angle.
You must insert the metal flange at the front of the battery into the slot on the bottom of the
controller, and slide the top of the battery beneath the small alignment pin on the left side of
the controller.
h. Move the battery latch up to secure the battery.
When the latch clicks into place, the bottom of the latch hooks into a metal slot on the chassis.
i. Turn the controller over to confirm that the battery is installed correctly.
Attention: Possible hardware damage – The metal flange at the front of the battery must
be completely inserted into the slot on the controller (as shown in the first figure). If the
battery is not installed correctly (as shown in the second figure), the metal flange might
contact the controller board, causing damage.
•

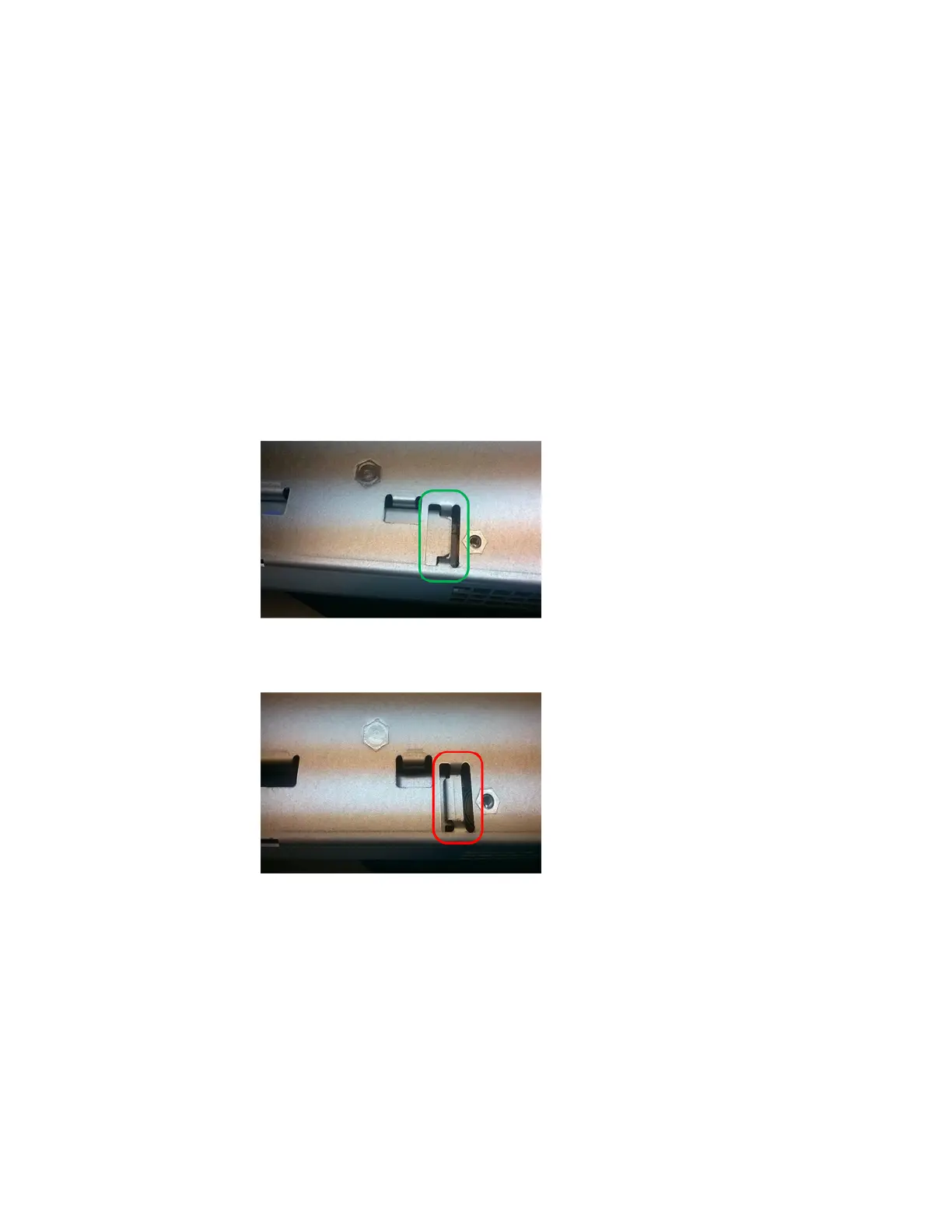

Correct – The battery's metal flange is completely inserted in the slot on the
controller:
• Incorrect – The battery's metal flange is not inserted into the slot on the controller:
j. Replace the controller cover.
6. Install the replacement controller into the appliance.
a. Turn the controller over, so that the removable cover faces down.
b. With the cam handle in the open position, slide the controller all the way into the appliance.
c. Move the cam handle to the left to lock the controller in place.
d. Replace the cables and SFPs.
e. If the original controller used DHCP for the IP address, locate the MAC address on the label
on the back of the replacement controller. Ask your network administrator to associate the
