NETGEAR D6300 User Manual

Hardware Setup
13
D6300 WiFi DSL Modem Router
Back Panel
The back panel has the Power On/Off button and port connections shown in the figure:
4. Gigabit Ethernet
7. Power 1. USB port
6. AC power
2. ADSL line
3. Gigabit Ethernet
5. Reset button
On/Off button
adapter input
WAN port
LAN ports

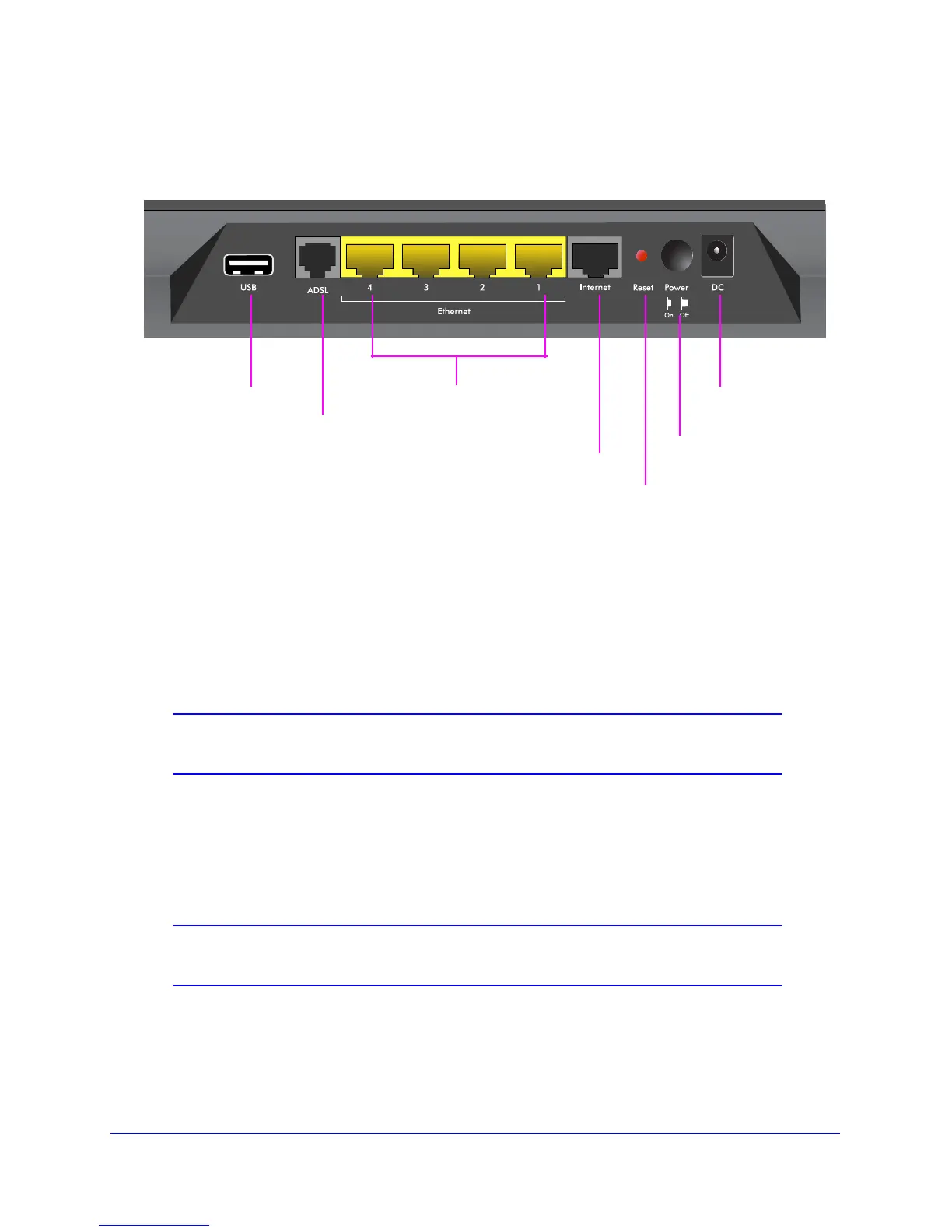

Figure 3. Back panel port connections
Viewed from left to right, the back panel contains the following elements:
1. USB port for conn
ecting USB storage devices like flash drives, hard drives, or USB
printers.
2. RJ-11 asynchronous DSL (ADSL) port for connect
ing the WiFi modem router to an ADSL
line
Note: An ADSL port can send data over an ADSL line at one speed and
receive it at another speed.
3. Four Gigabit Ethernet RJ-45 LAN ports for cabling the WiFi modem router to the local
computers
4. One Gigabit Ethernet WAN port for connecting the WiFi modem router to a fiber or cable
modem
Note: You can use either the ADSL or Gigabit Ethernet port for WAN
connectivity.
5. Reset button
See Factory Settings on page 131
for information about the Restore Factory Settings
button and the factory setting values.

NETGEAR D6300 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Channels quantity	2 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Rack mounting	-
Frequency range	2.4 - 5 GHz
USB ports quantity	2
Minimum system requirements	Internet Explorer 5.0, Firefox 2.0, Safari 1.4, Google Chrome 11.0
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPA2-PSK, WPS
Product color	Black
Flash memory	128 MB
Certification	RoHS, CEC, WEEE, Wi-Fi
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	255 mm
Width	205 mm
Height	77 mm
Weight	654 g
