NETGEAR D6300 User Manual

Administration
86
D6300 WiFi DSL Modem Router

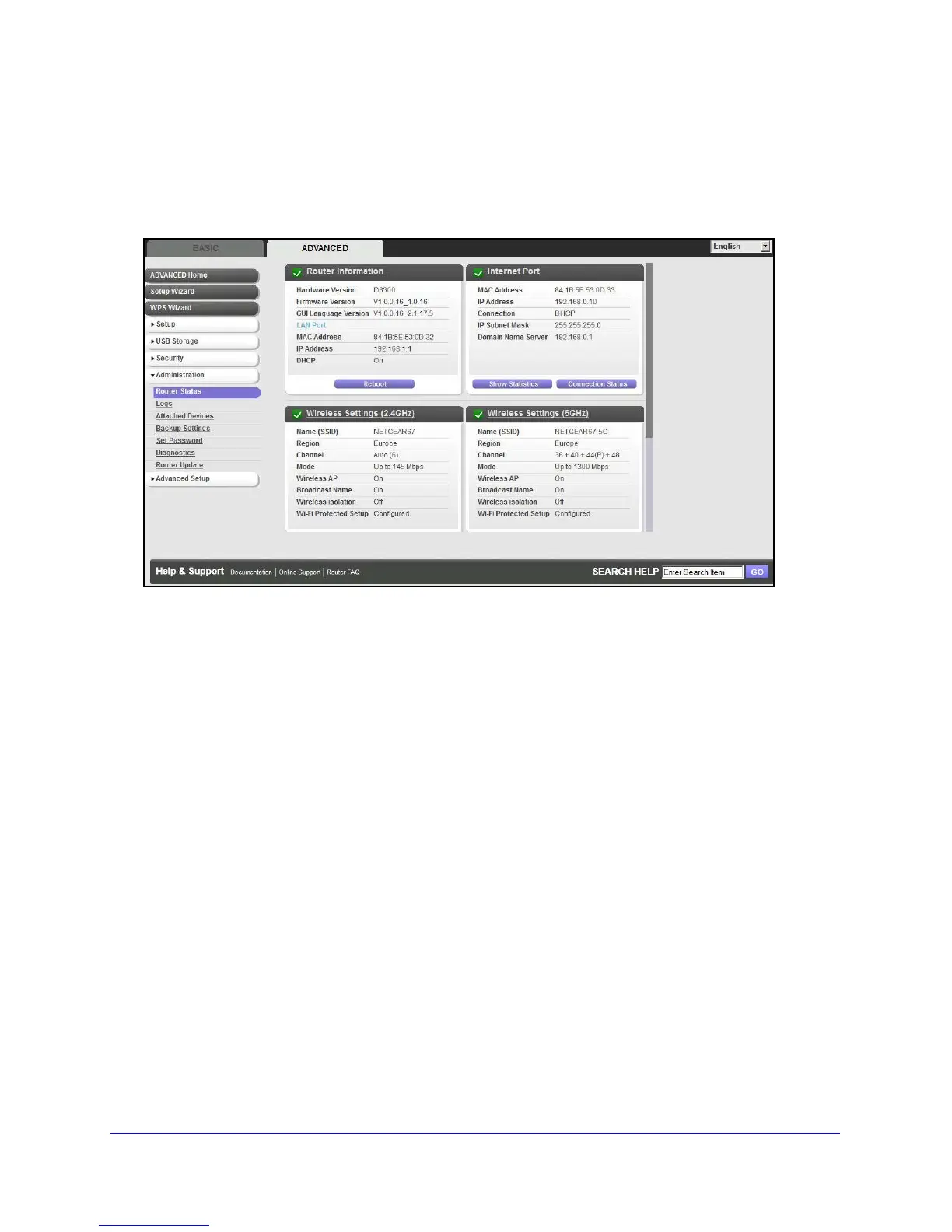

View WiFi DSL Modem Router Status
To view WiFi modem router status and usage information, select ADVANCED Home, or
select Administration > Router Status to display the following screen:
Router Information
Hardware Version. The WiFi modem router model.
Firmware Version. The version of the WiFi modem router firmware. It changes if you
upgra
de the WiFi modem router firmware.
GUI Language Version. Th
e localized
language of the user interface.
LAN Port.
• MAC Address. The Media
Access Control address. This address is the unique physical
address being used by the Ethernet (LAN) port of the WiFi modem router.
• IP Address. The IP add
ress being used by the Ethernet (LAN) port of the WiFi modem
router. The default is 192.168.1.1.
• DHCP Server. Identifies whether the Wi
Fi modem router’s built-in DHCP server is active
for the LAN-attached devices.
Internet Port
MAC Address. The Media Access Control address. This address is the unique physical
address being used by the Internet (WAN) port of the WiFi modem router.

NETGEAR D6300 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Channels quantity	2 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Rack mounting	-
Frequency range	2.4 - 5 GHz
USB ports quantity	2
Minimum system requirements	Internet Explorer 5.0, Firefox 2.0, Safari 1.4, Google Chrome 11.0
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPA2-PSK, WPS
Product color	Black
Flash memory	128 MB
Certification	RoHS, CEC, WEEE, Wi-Fi
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	255 mm
Width	205 mm
Height	77 mm
Weight	654 g
