NETGEAR D6300

Administration
87
D6300 WiFi DSL Modem Router
IP Address. The IP address being used by the Internet (WAN) port of the WiFi modem
router. If no address is shown or the address is 0.0.0, the WiFi modem router cannot connect
to the Internet.
Active Connection. This shows if the WiFi modem router is using a
fixed IP add
ress on the
WAN. If the value is DHCP Client, the WiFi modem router obtains an IP address dynamically
from the ISP.
IP Subnet Mask. The IP su
bnet mask being used by the Internet (WAN) port of the WiFi
modem router.
Domain Name Server. T
he Domain Name Server addresses being used by the WiFi modem
router. A Domain Name Server translates human-language URLs such as www.netgear.com
into IP addresses.
Show Statistics Button
On the Router Status screen, in the Internet Port pane, click the Show Statistics button to
display the following screen:

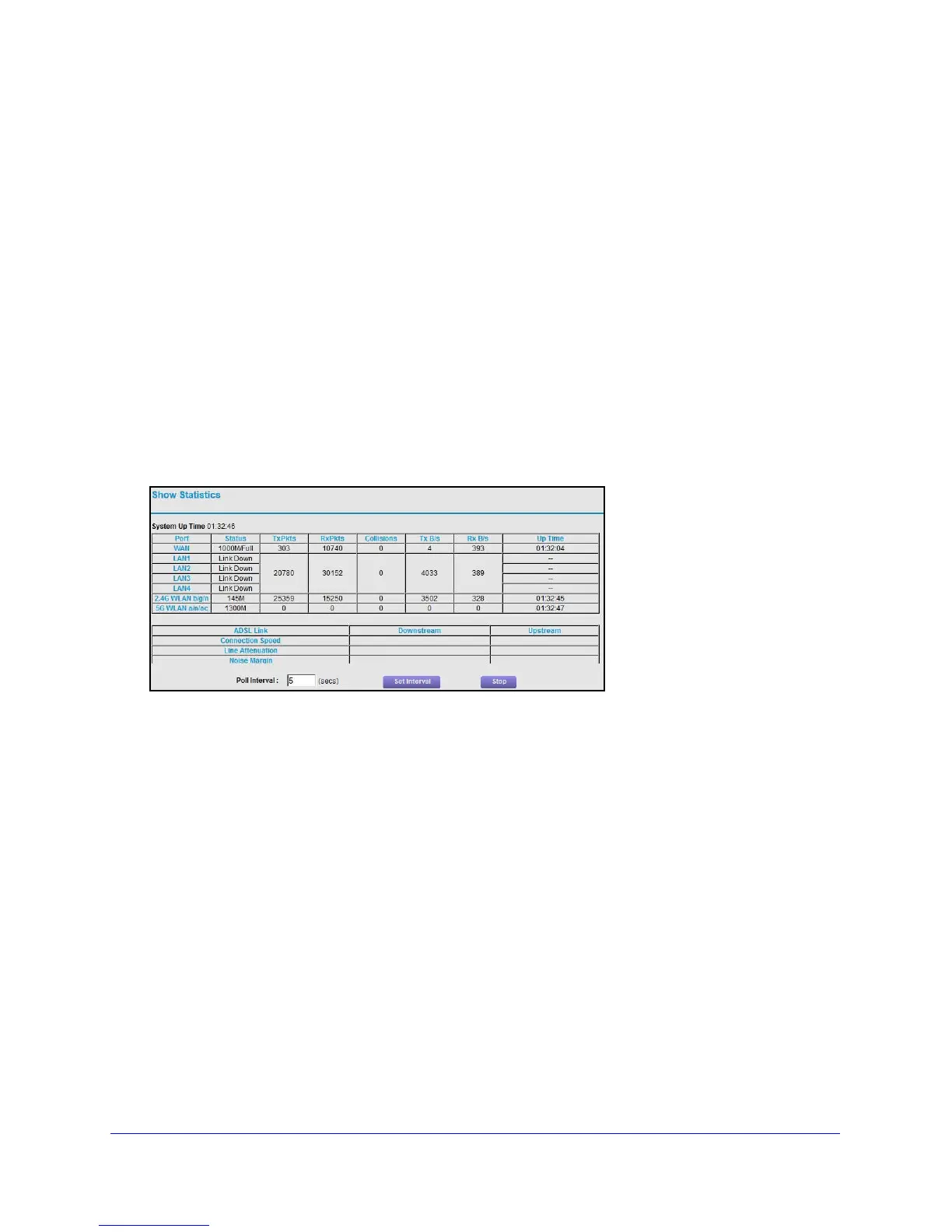

Figure 10. System up time and poll interval statistics
System Up Time. The time elapsed since the WiFi modem router was last restarted.
Port. The statistics for the WAN (Internet) and LAN (Ethernet) ports. For each port, the
scre
en displays:
• Status. The link status of the port.
• TxPkts. Th
e number of packets transmitted on this port since reset or manual clear.
• RxPkts. The
number of packets received on this port since reset or manual clear.
• Collisions.
The number of collisions on this port since reset or manual clear.
• Tx B/s. The cu
rrent transmission (outbound) bandwidth used on the WAN and LAN ports.
• Rx B/s. The current
reception (inbound) bandwidth used on the WAN and LAN ports.
• Up Time. The time elapsed since this port acquired the link.
• Poll Interval.
The interval at which the statistics are updated in this screen.
To change the polling frequency, enter a time in seconds in the Poll Inte
rval field, and click
Set Interval.
