NETGEAR D6300 User Manual

Hardware Setup
20
D6300 WiFi DSL Modem Router
Summary
• One-line ADSL microfilter (not included). Use with a phone or fax machine.
• Splitter (not included). Use with a one-line ADSL microfilter to share an outlet with a
phon
e and the WiFi modem router.
• Two-line ADSL microfilter with bu
ilt-in splitter (included). Use to share an outlet with a
phone and the WiFi modem router.
Cable Your D6300 WiFi DSL Modem Router
WARNING:
DO not stack equipment, or place equipment in tight spaces, or in
drawers. Be sure that your equipment is surrounded by at least
2
inches of air space. The unit should not be wall mounted.

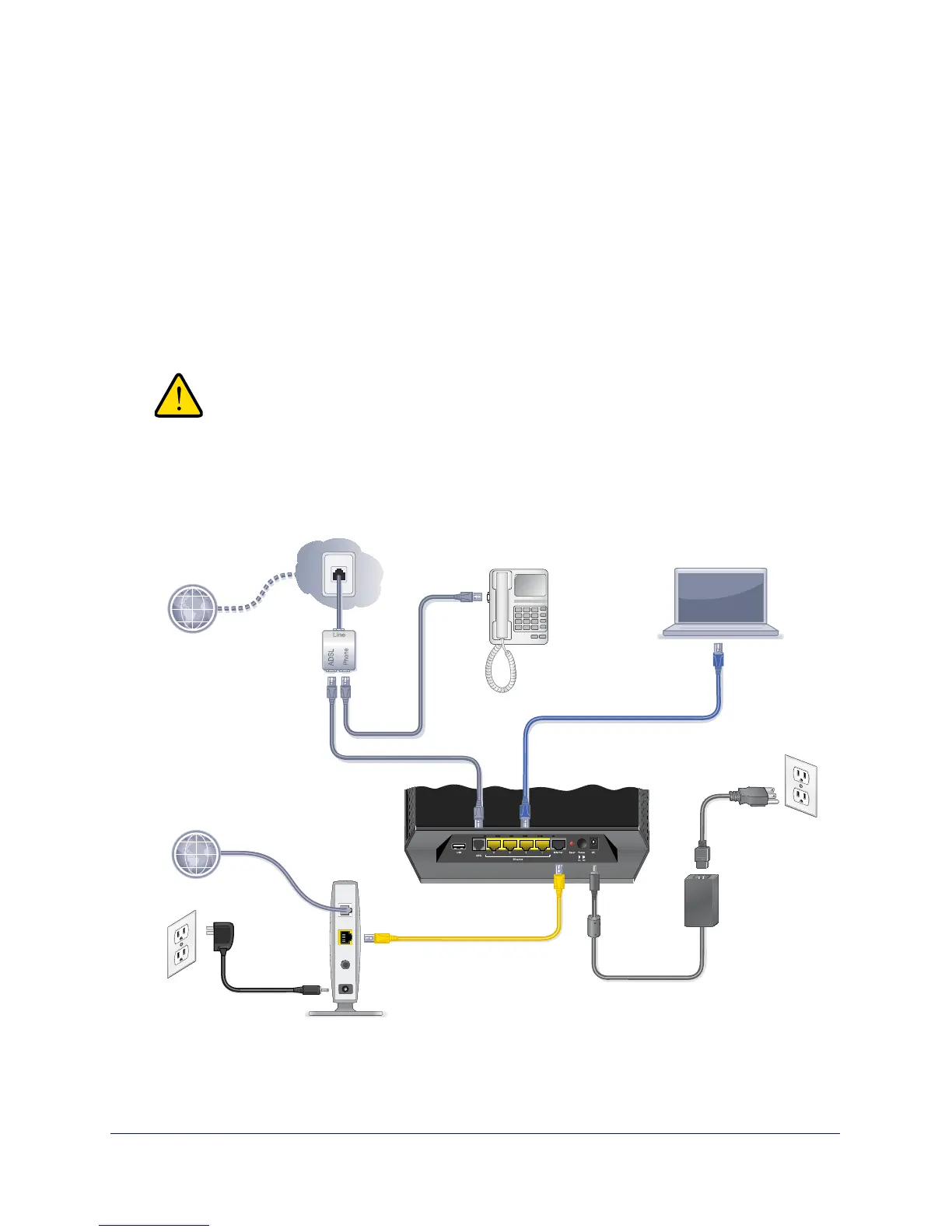

The installation guide that came in the box has a cabling diagram on the second page.
1 ADSL or
Cable Fiber
Modem
2 Power
3 Computer
4 Browser
Figure 8. Cabling diagram

NETGEAR D6300 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Channels quantity	2 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Rack mounting	-
Frequency range	2.4 - 5 GHz
USB ports quantity	2
Minimum system requirements	Internet Explorer 5.0, Firefox 2.0, Safari 1.4, Google Chrome 11.0
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPA2-PSK, WPS
Product color	Black
Flash memory	128 MB
Certification	RoHS, CEC, WEEE, Wi-Fi
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	255 mm
Width	205 mm
Height	77 mm
Weight	654 g
