NETGEAR D6300 User Manual

Administration
90
D6300 WiFi DSL Modem Router

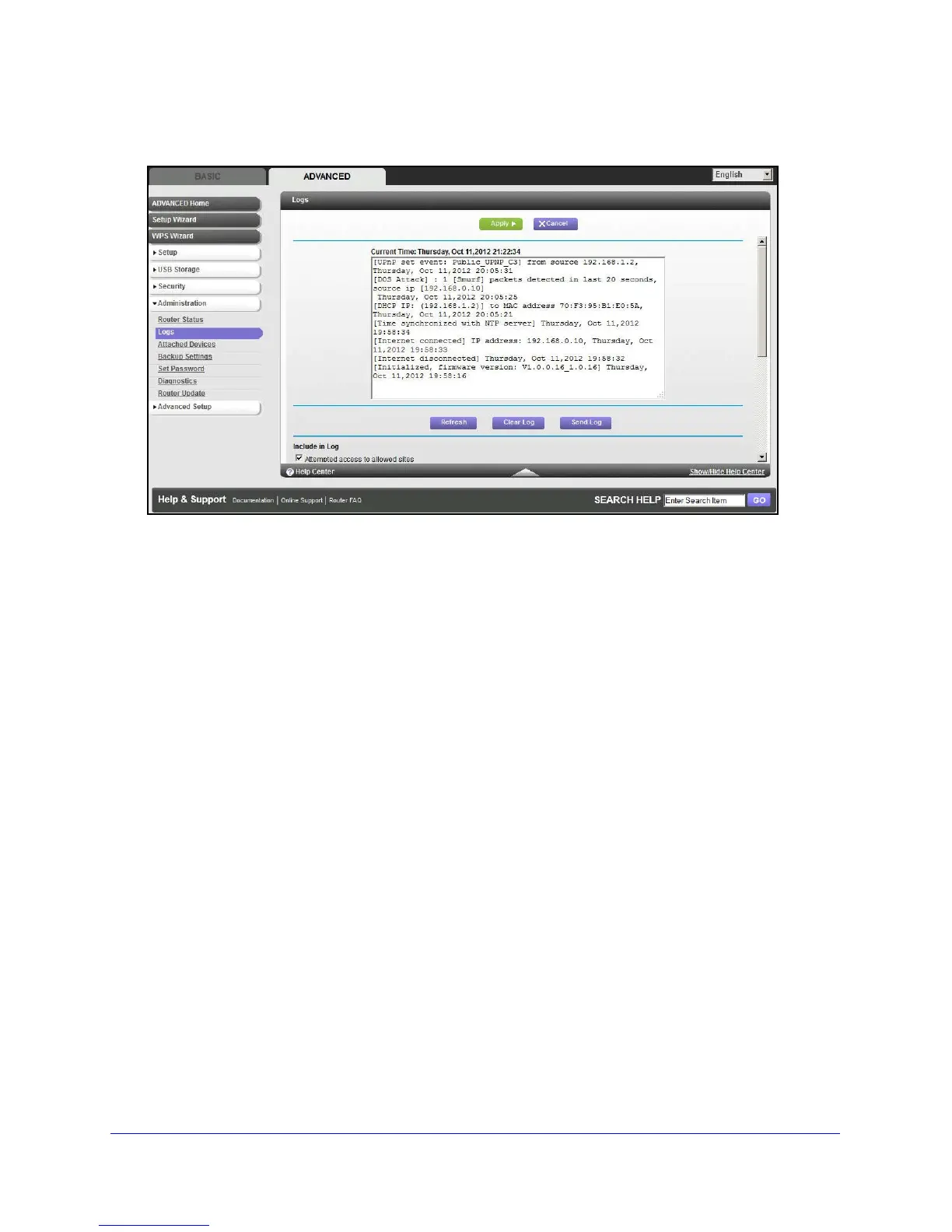

Select ADVANCED > Administration > Logs. The Logs screen displays.
The Logs screen shows the following information:
• Date and time. The date
and time the log entry was recorded.
• Source IP. The IP
address of the initiating device for this log entry.
• Target address. Th
e name or IP address of the website or news group visited or to which
access was attempted.
• Action. Whether t
he access was blocked or allowed.
To refresh the log screen, click the Refre
sh button.
To clear the log entries, click the Clear Log bu
tton.
To email the log immediately, click the Send Log bu
tton.
Attached Devices
See Attached Devices on page 32.
Manage the Configuration File
The configuration settings of the WiFi DSL Modem Router are stored within the WiFi modem
router in a configuration file. You can back up (save) this file to your computer, restore it, or
reset it to the factory default settings.

NETGEAR D6300 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Channels quantity	2 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Rack mounting	-
Frequency range	2.4 - 5 GHz
USB ports quantity	2
Minimum system requirements	Internet Explorer 5.0, Firefox 2.0, Safari 1.4, Google Chrome 11.0
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPA2-PSK, WPS
Product color	Black
Flash memory	128 MB
Certification	RoHS, CEC, WEEE, Wi-Fi
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	255 mm
Width	205 mm
Height	77 mm
Weight	654 g
