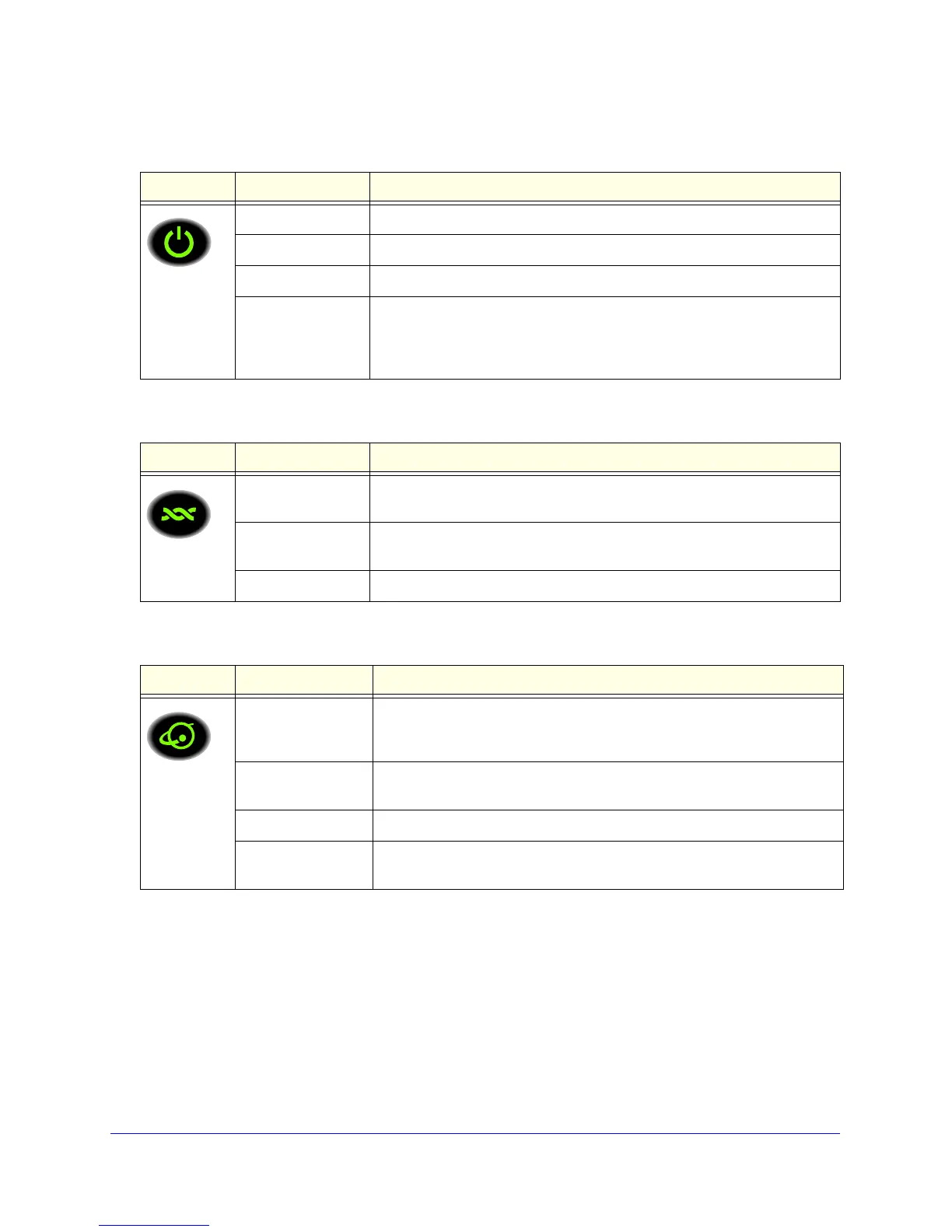

Table 1. Power On/Off LED
Icon LED Activity Description
Solid green Power is supplied to the router.
Solid red POST (power-on self-test) failure or a device malfunction has occurred.
Off Power is not supplied to the router.
Restore Factory
Settings
LED blinks momentarily when the Restore Facto
ry Settings button on the
bottom of the unit is pressed for 6 seconds. The Power LED then blinks red
three times when the Restore Factory Settings button is released and then
turns green as the gateway resets to the factory defaults.
Table 2. DSL LED
Icon LED Activity Description
Solid green You have an ADSL connection. In technical terms, the ADSL port is
synchronized with an ISP’s network-access device.
Blinking green Indicates that the WiFi modem router is negotiating the best possible
speed on the ADSL line.
Off The unit is off or there is no ADSL connection.
Table 3. Internet LED
Icon LED Activity Description
Solid green You have an Internet connection. If this connection is dropped due to an
idle time-out but the connection is still present, the LED stays green. If the
Internet connection is dropped for any other reason, the LED turns off.
Solid red The Internet (IP) connection failed. See Cannot Access the Internet on
p
age 124 for troubleshooting information.
Blinking green Data is being transmitted over the Inte
rnet connection.
Off No Internet connection is detected or the device is in bridge mode (an
external device handles the ISP connection).
Hardware Setup
15
D6300 WiFi DSL Modem Router
