Bridging from 10BASE-T to 100BASE-TX Networks
The Model FS562/FS566 switch can function as a bridge connecting traditional 10BASE-T
Ethernet networks to 100BASE-TX Fast Ethernet networks. Users requiring increased network
bandwidth can be upgraded to 100 Mbps while remaining connected to the rest of the network.

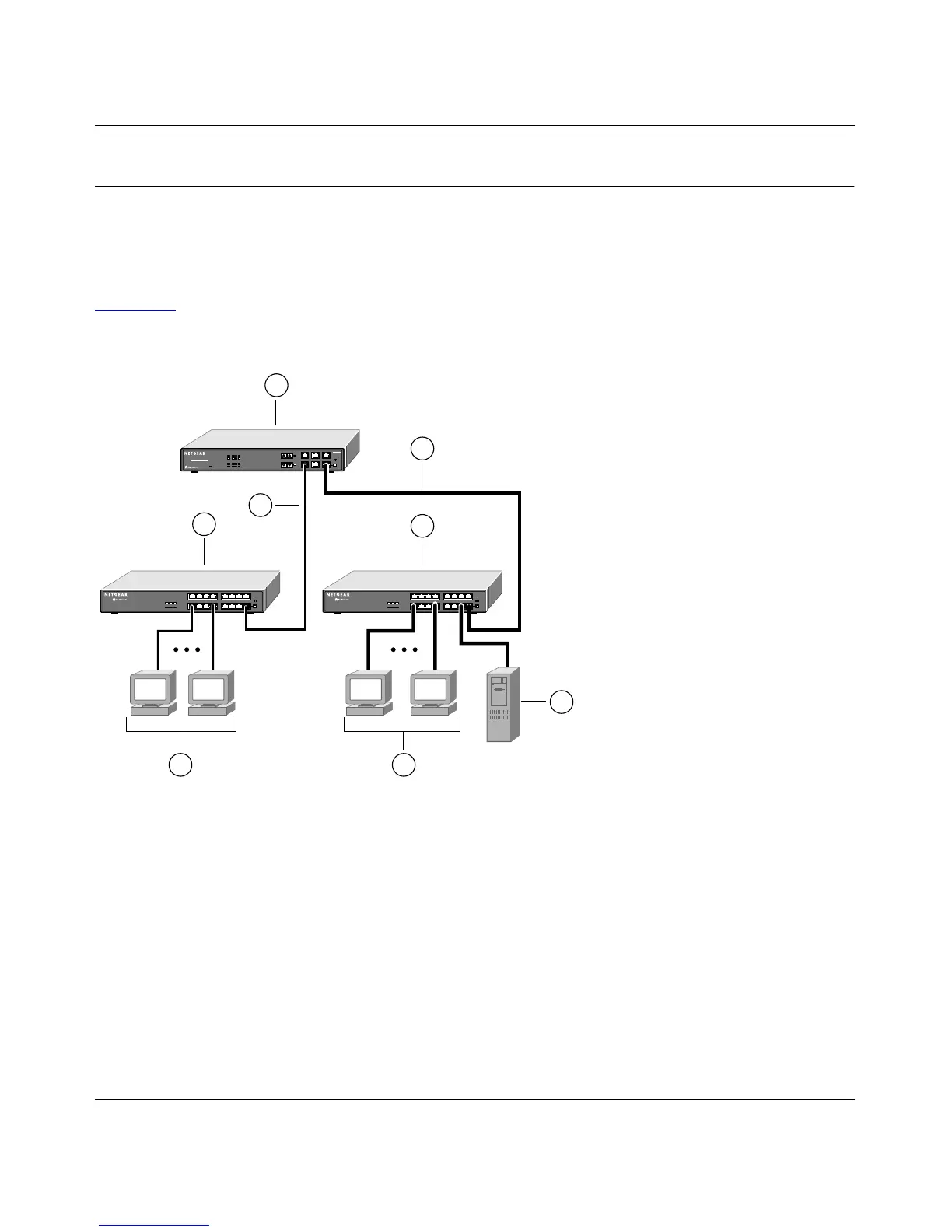

Figure 3-4 illustrates the Model FS562 Fiber Switch integrated with the NETGEAR Model EN516
Ethernet Hub and the NETGEAR Model FE516 Fast Ethernet Hub.
Key:
1 = Model FS562 Fiber Switch (Both Normal/Uplink push buttons set to Normal position)
2 = 10 Mbps connection
3 = 100 Mbps connection
4 = Model EN516 Ethernet Hub (Normal/Uplink push button set to Uplink position)
5 = Model FE516 Fast Ethernet Hub (Normal/Uplink push button set to Uplink position)
6 = PCs with 10 Mbps connection
7 = PCs with 100 Mbps connection
8 = Server with 100 Mbps connection
Figure 3-4. Bridging 10 Mbps Networks to 100 Mbps Networks
