The PC must have the NETGEAR ProSafe VPN Client program installed that supports IPSec. Go
to the NETGEAR Web site (http://www.netgear.com) and select VPN01L_VPN05L in the Product
Quick Find drop down menu for information on how to purchase the NETGEAR ProSafe VPN
Client.
VPN Consortium Scenario 1:
Gateway-to-Gateway with Preshared Secrets
The following is a typical gateway-to-gateway VPN that uses a preshared secret for authentication.

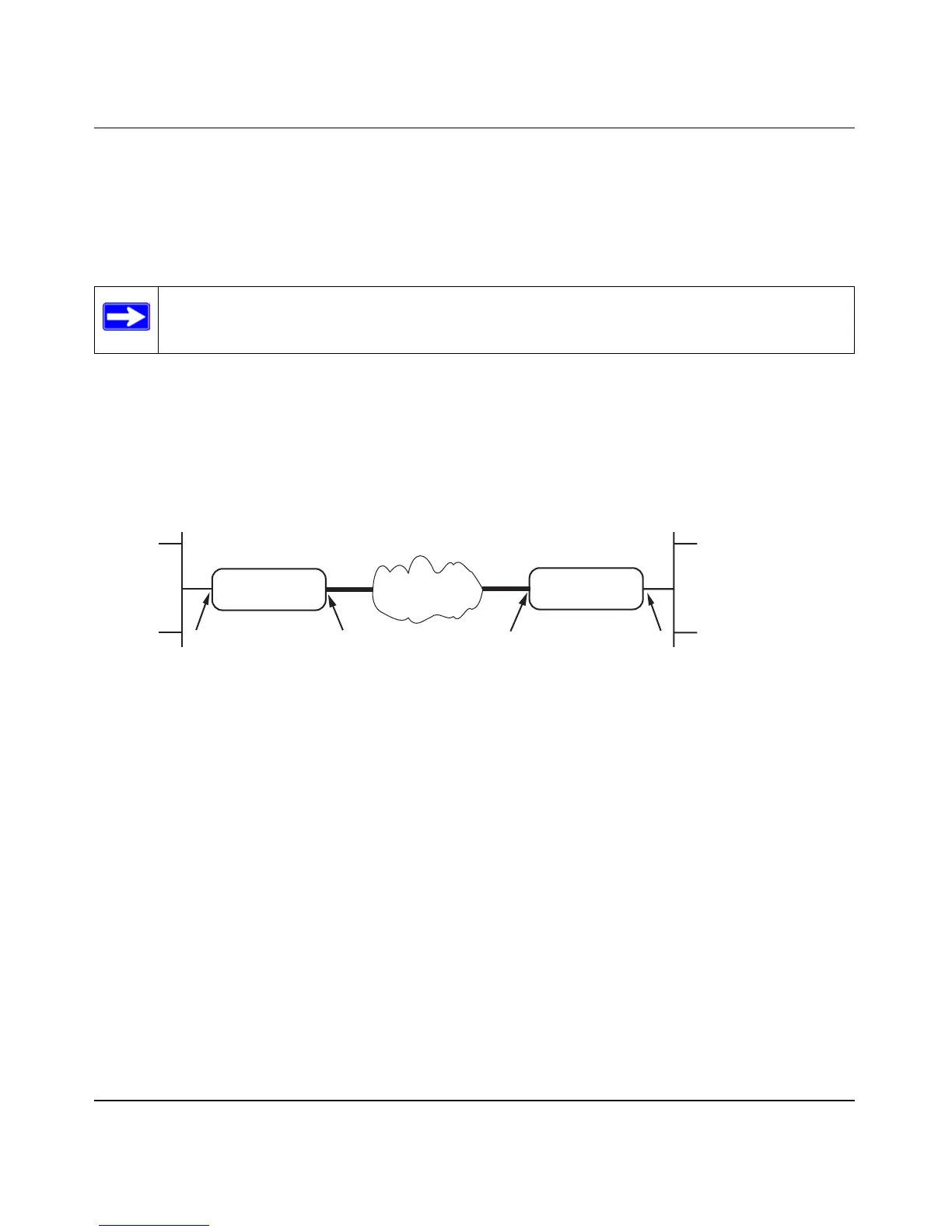

Figure 6-5: VPN Consortium Scenario 1
Gateway A connects the internal LAN 10.5.6.0/24 to the Internet. Gateway A's LAN interface has
the address 10.5.6.1, and its WAN (Internet) interface has the address 14.15.16.17.
Gateway B connects the internal LAN 172.23.9.0/24 to the Internet. Gateway B's WAN (Internet)
interface has the address 22.23.24.25. Gateway B's LAN interface address, 172.23.9.1, can be used
for testing IPsec but is not needed for configuring Gateway A.
The IKE Phase 1 parameters used in Scenario 1 are:
•Main mode
• TripleDES
• SHA-1
• MODP group 2 (1024 bits)
• pre-shared secret of “hr5xb84l6aa9r6”
• SA lifetime of 28800 seconds (eight hours) with no kilobytes rekeying
Note: Before installing the NETGEAR ProSafe VPN Client software, be sure to turn off
any virus protection or firewall software you may be running on your PC.
10.5.6.0/24
10.5.6.1
Gateway A
14.15.16.17 22.23.24.25
172.23.9.0/24
Internet
Gateway B
172.23.9.1
