Reference Manual for the ProSafe VPN Firewall FVS114
5-8 Basic Virtual Private Networking
202-10098-01, April 2005
To view the VPNC recommended authentication and encryption settings used by the VPN
Wizard, click the here link (see Figure 5-6). Click Back to return to the Summary screen.

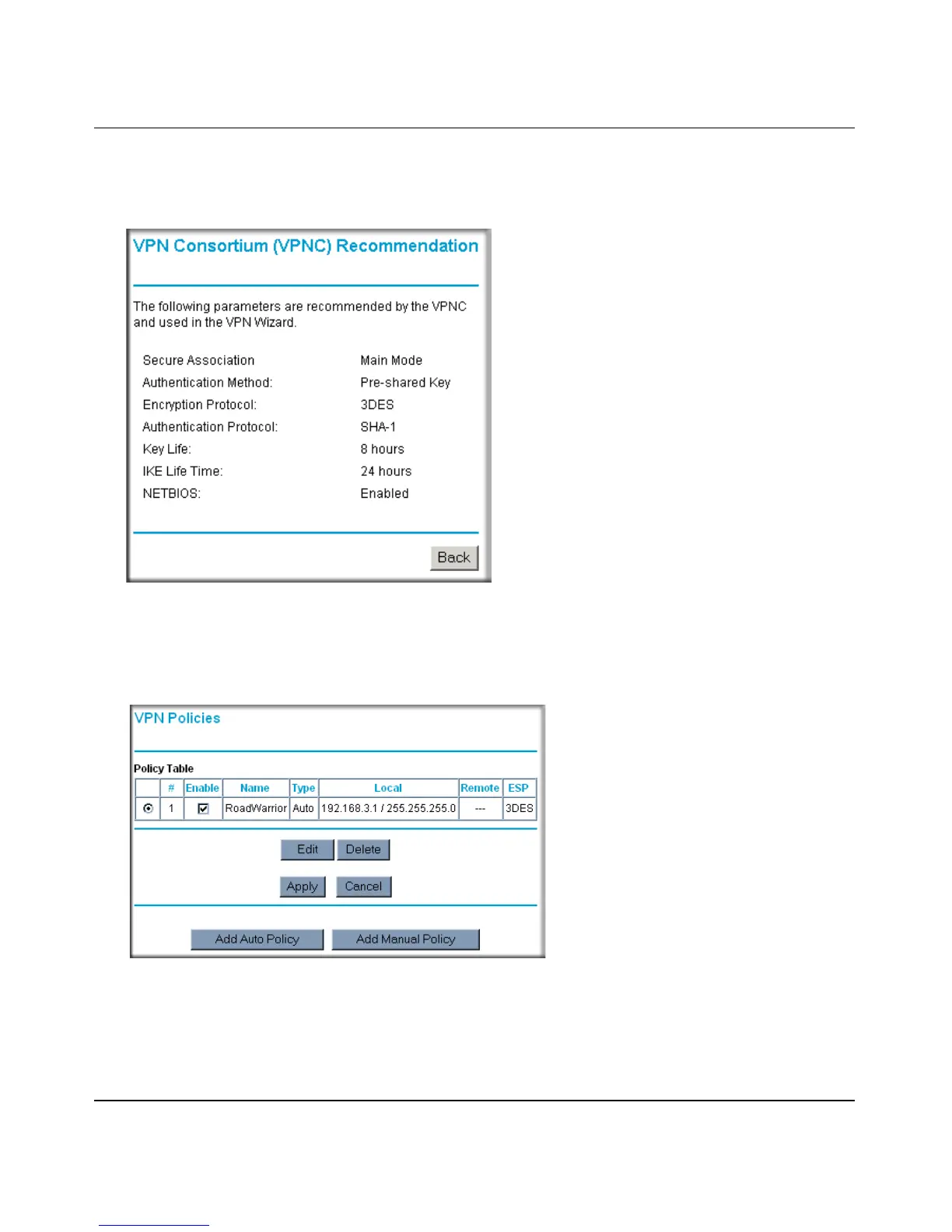

Figure 5-7: VPNC Recommended Settings
3.
Click Done on the Summary screen (see Figure 5-6) to complete the configuration procedure.
The VPN Policies menu below displays showing that the new tunnel is enabled.
Figure 5-8: VPN Policies
To view or modify the tunnel settings, select the radio button next to the tunnel entry and click
Edit.
