NETGEAR ProSafe FVS114 User Manual

Reference Manual for the ProSafe VPN Firewall FVS114
5-12 Basic Virtual Private Networking
202-10098-01, April 2005
In this step, you will provide information about the remote VPN client PC. You will need to
provide:
— The Pre-Shared Key that you configured in the FVS114.
— Either a fixed IP address or a “fixed virtual” IP address of the VPN client PC.
a. In the Network Security Policy list on the left side of the Security Policy Editor window,
click on My Identity.

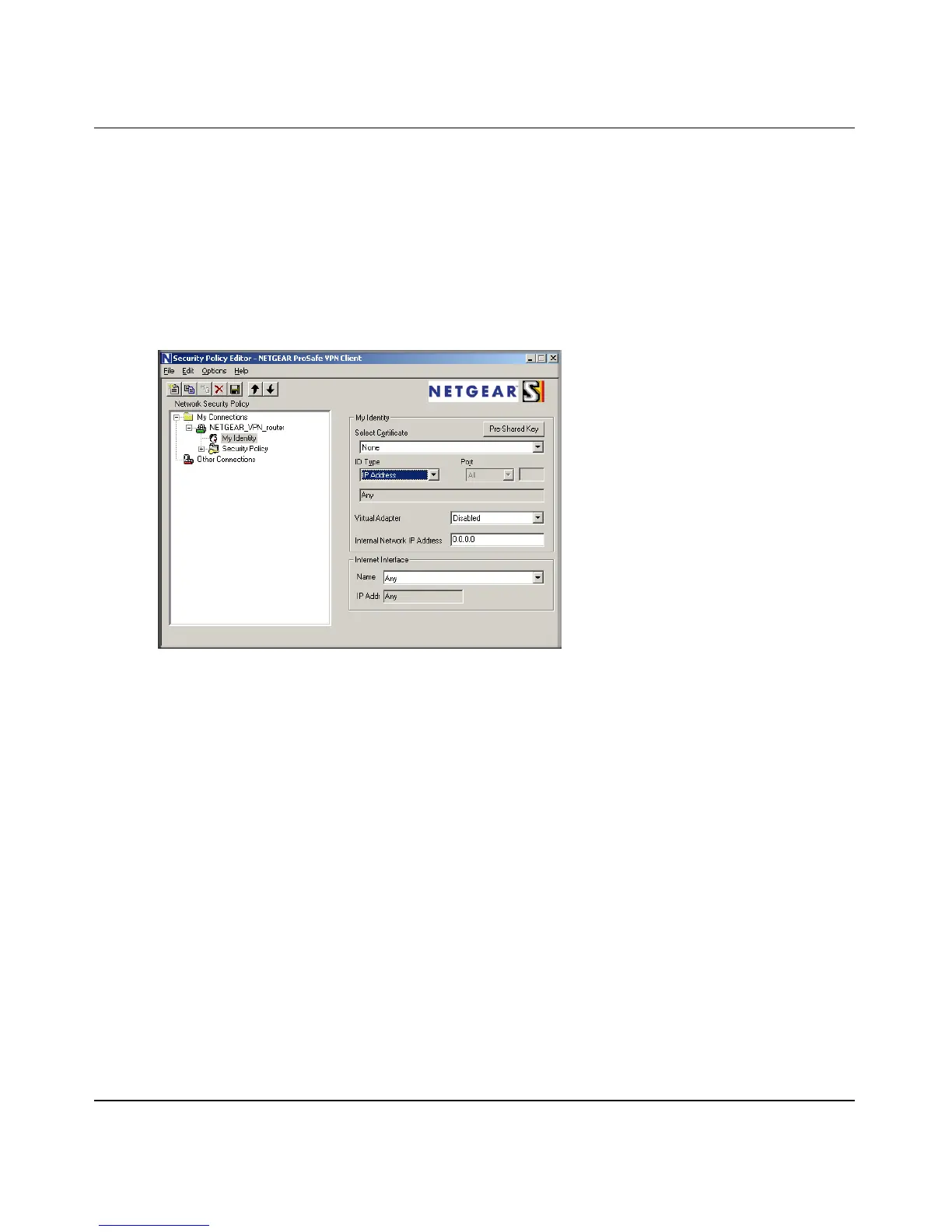

Figure 5-12: Security Policy Editor My Identity
b.
Choose None in the Select Certificate box.
c. Select IP Address in the ID Type box. If you are using a virtual fixed IP address, enter this
address in the Internal Network IP Address box. Otherwise, leave this box empty.
d. In the Internet Interface box, select the adapter you use to access the Internet. Select PPP
Adapter in the Name menu if you have a dial-up Internet account. Select your Ethernet
adapter if you have a dedicated Cable or DSL line. You may also choose Any if you will
be switching between adapters or if you have only one adapter.
e. Click the Pre-Shared Key button. In the Pre-Shared Key dialog box, click the Enter Key
button. Enter the FVS114's Pre-Shared Key and click OK. In this example, 12345678 is
entered. This field is case sensitive.

NETGEAR ProSafe FVS114 Specifications

General

Brand	NETGEAR
Model	ProSafe FVS114
Category	Firewall
Language	English
