Reference Manual for the ProSafe VPN Firewall FVS114
5-24 Basic Virtual Private Networking
202-10098-01, April 2005
To view the VPNC recommended authentication and encryption settings used by the VPN
Wizard, click the here link (see Figure 5-27). Click Back to return to the Summary screen.

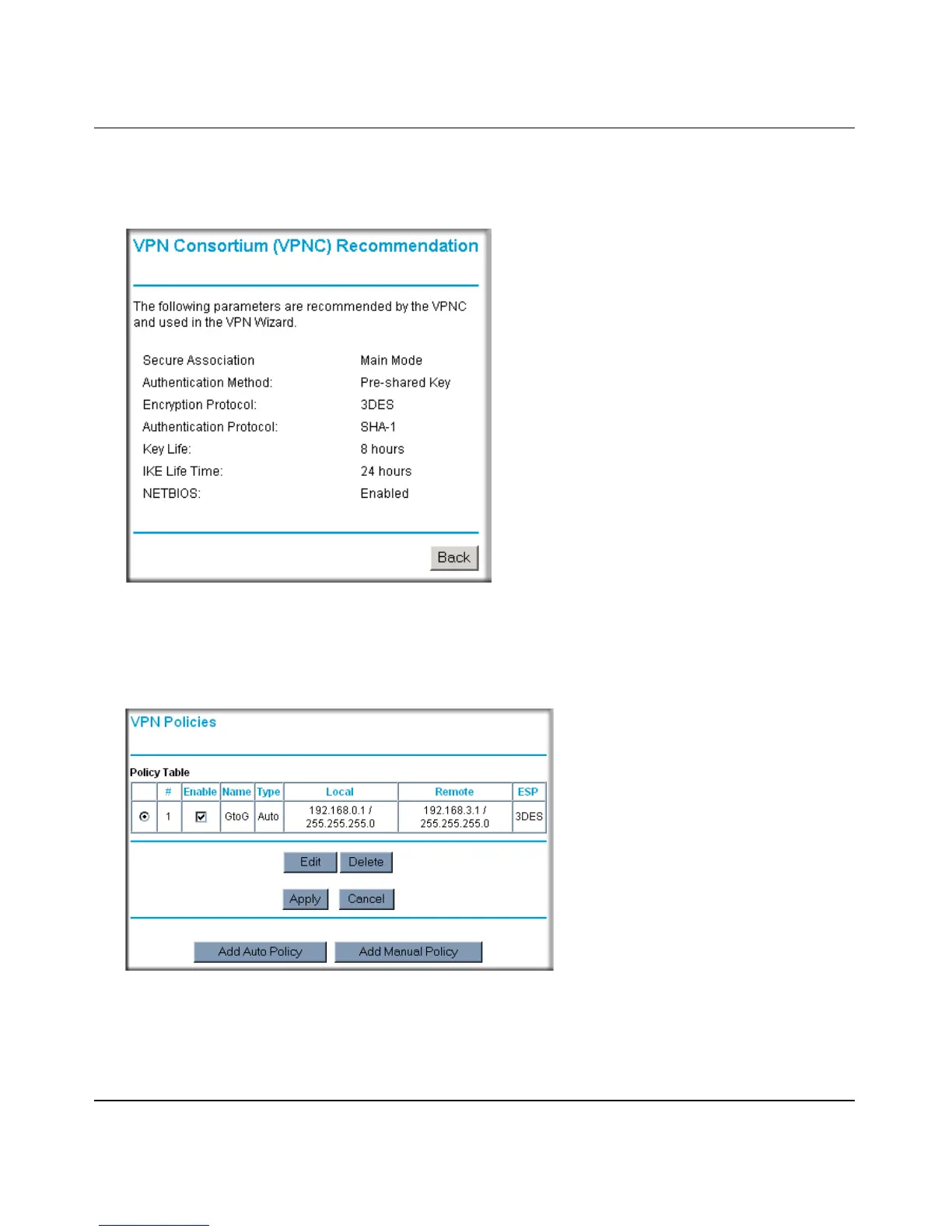

Figure 5-28: VPN Recommended Settings
5.
Click Done on the Summary screen (see Figure 5-27) to complete the configuration
procedure. The VPN Policies menu below displays showing that the new tunnel is enabled.
Figure 5-29: VPN Policies
