7. Click the setup bridge mode wireless settings button.
8. Enter the WiFi settings of the other router to which this router will connect, that is, the settings of the
router that will function as a bridge:
a. From the Choose a Wireless Network menu, select the WiFi network frequency (2.4 GHz or 5
GHz).
For 802.11ac mode, select 5 GHz.
b. In the Name (SSID) field, enter the WiFi network name (SSID).

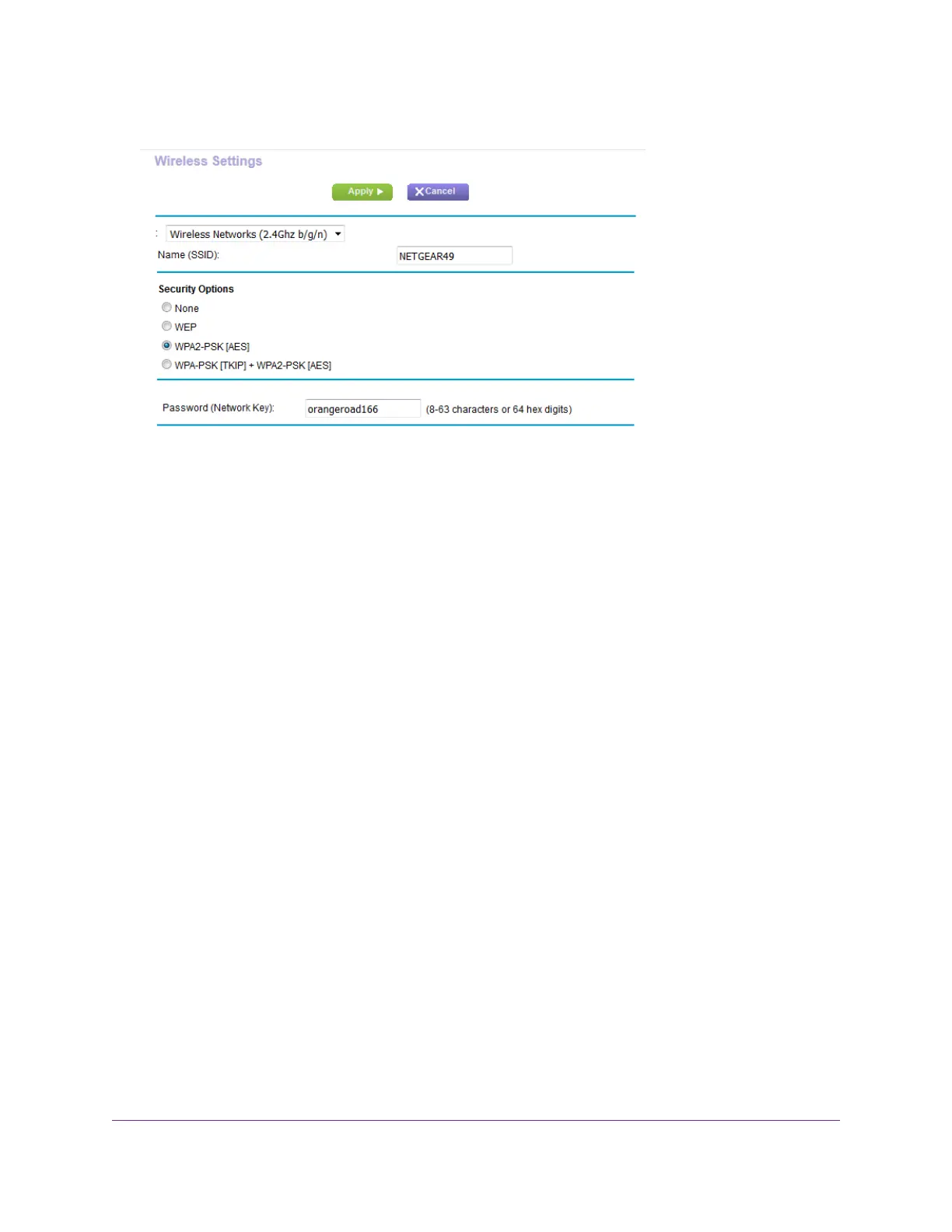

c. In the Security Options section, leave the WPA2-PSK [AES] radio button selected or select another
radio button.
d. If prompted, type the passphrase (the WiFi password that you use to connect with WiFi to the other
router).
9. Click the Apply button.
The Wireless Settings pop-up window closes and the Router / AP / Bridge Mode page displays again.
10. On the Router / AP / Bridge Mode page, click the Apply button.
Your settings are saved.The router restarts.
11. To reconnect, wait a few minutes, close and restart your browser, and do the following:
a. Launch a web browser from a computer or mobile device that is connected to the network.
If you use a WiFi connection, use the SSID, WiFi security mode, WiFi password that you specified
in Step 8.
b. Enter http://www.routerlogin.net.
A login window opens.
c. Enter the router user name and password.
The user name is admin.The default password is password.The user name and password are
case-sensitive.
The BASIC Home page displays.
Manage the WiFi Network Settings
153
Nighthawk AC1900 Smart WiFi Router Model R6900P
