NETGEAR VEVG2610-1FXAUS

Manage Your Network
95
Dual Band Wireless VDSL2 + Ethernet Gateway
The BASIC Home screen displays.
4. Click the Advanced tab.
The WAN pane displays these WAN Internet port settings:
• MAC Address.
The MAC address of the WAN Internet port.
• IP Address/Mask
. The IP address of the WAN Internet port.
• Connection
. The type of WAN Internet port connection.
• IP Subnet Mask. The subnet mask.
• Domain Name Server. The IP address of the Domain Name Server
.
View WAN Statistics
 To view the WAN statistics:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or www.routerlogin.com
.
A login screen displays.
3. Enter the gateway user name and password.
The user name is admin.
The default password is password
. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Click the Advanced tab.
5. In the W
AN pane, click the Show Statistics button.

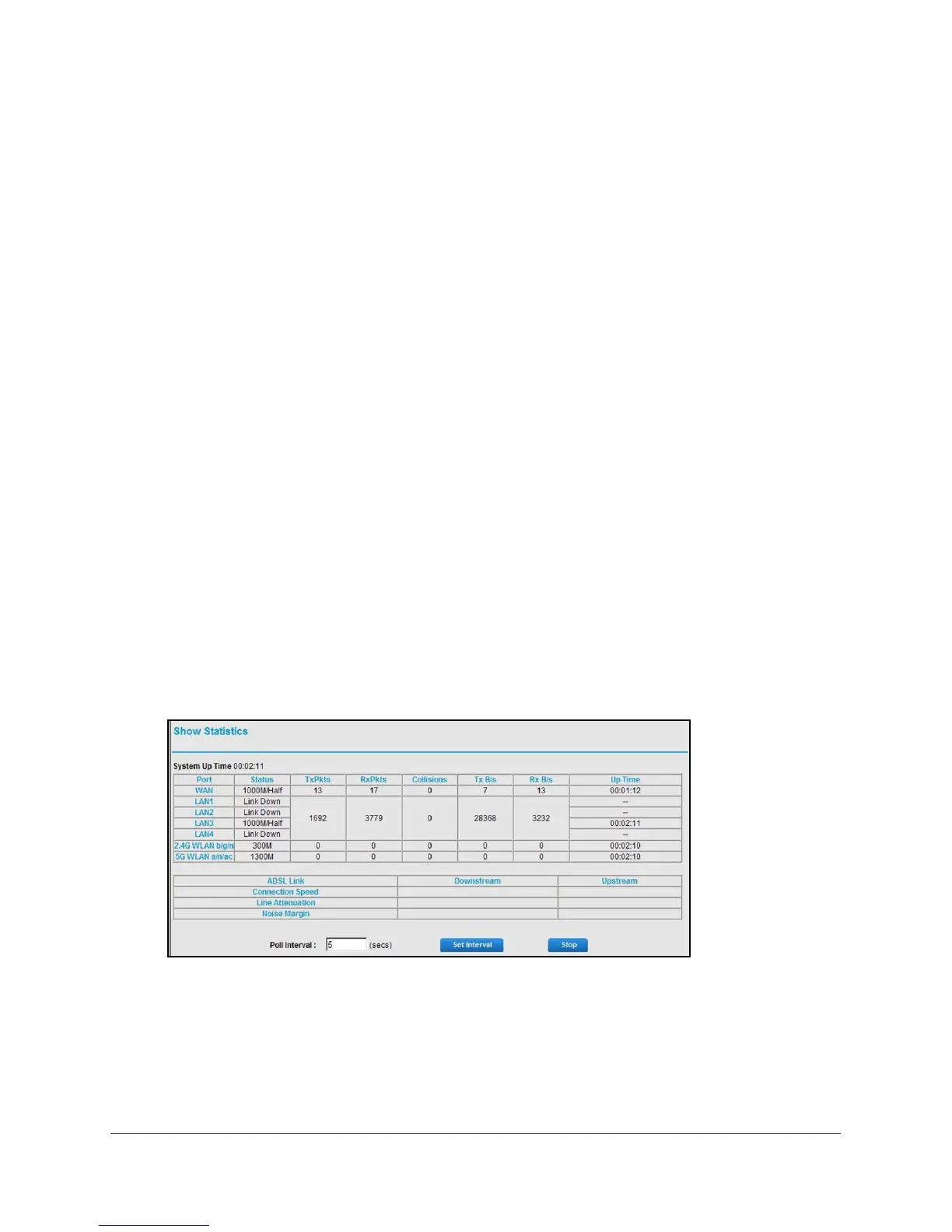

The following information displays:
• System Up Time.
The time that elapsed since the gateway was last restarted.
• Port. The statistics for the WAN (Internet) and LAN (Ethernet) ports. For each port,
the screen displays the following information:
- Status. The link status of the port.
