Netis WF-2403 User Manual

Portable Wireless-N Router/AP User Manual
17
Figure 3-7

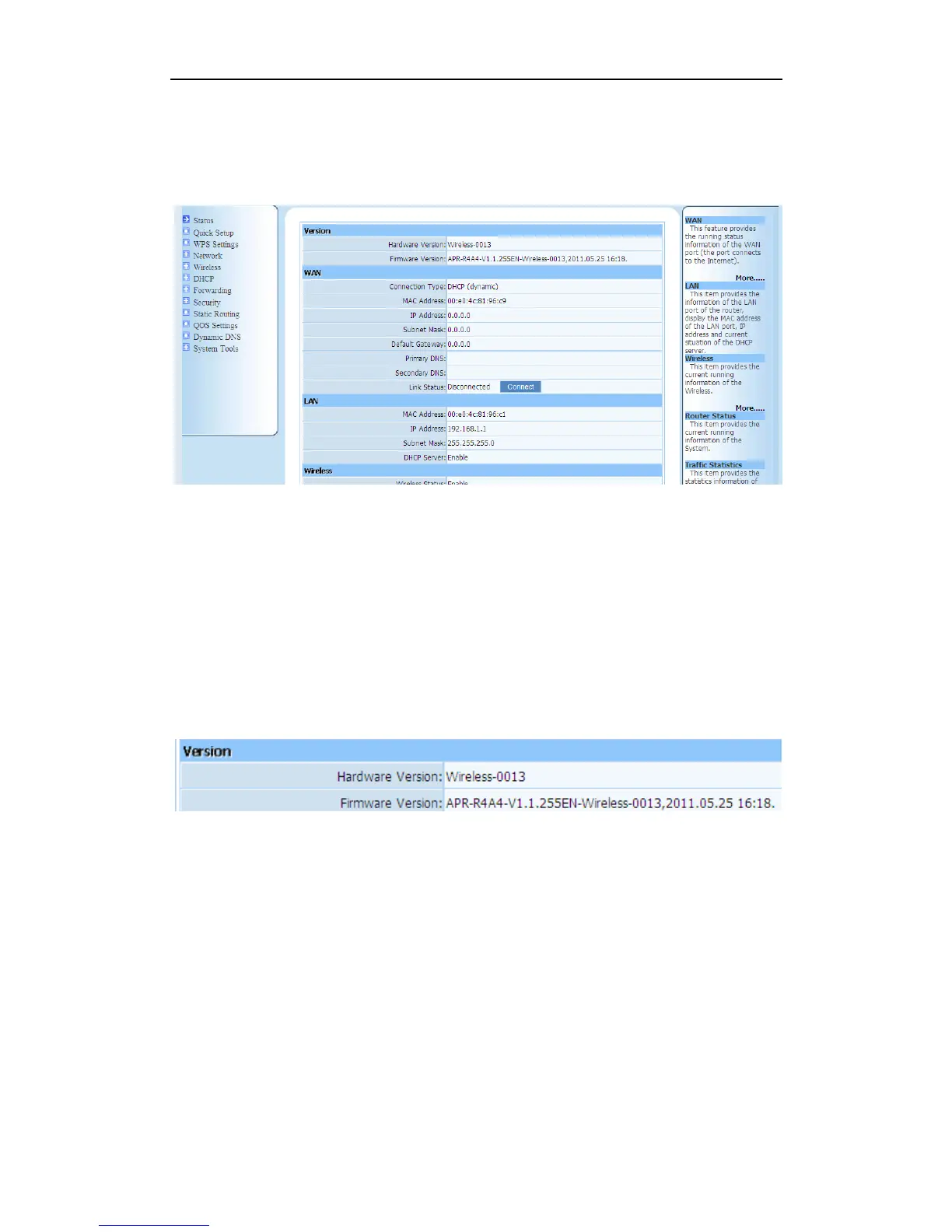

If you can see the picture as below(figure 3-8), that means you have successfully login web
management page of PORTABLE WIRELESS-N ROUTER /AP. You can start configuring
your PORTABLE WIRELESS-N ROUTER /AP now.
Figure 3-8
3.2. Status
This feature provides running status information and detailed information about router.
3.2.1. Version
Show the hardware version and firmware version.
Figure 3-9
3.2.2. WAN
This feature provides running status information of the WAN port (the port connect to the
Internet)

Netis WF-2403 Specifications

General

VPN support	PPTP, L2TP, IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB version	2.0
Rack mounting	No
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
DHCP client	-
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-PSK, WPA2-PSK
Certification	FCC, CE
Storage temperature (T-T)	-30 - 80 °C
Operating temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	Activity, Link, Power, WLAN
Cables included	LAN (RJ-45), USB

Weight and Dimensions

Weight	- g
