Netis WF-2403 User Manual

Portable Wireless-N Router/AP User Manual
49
name “guest” and Password “guest” in the dialog box, click OK.

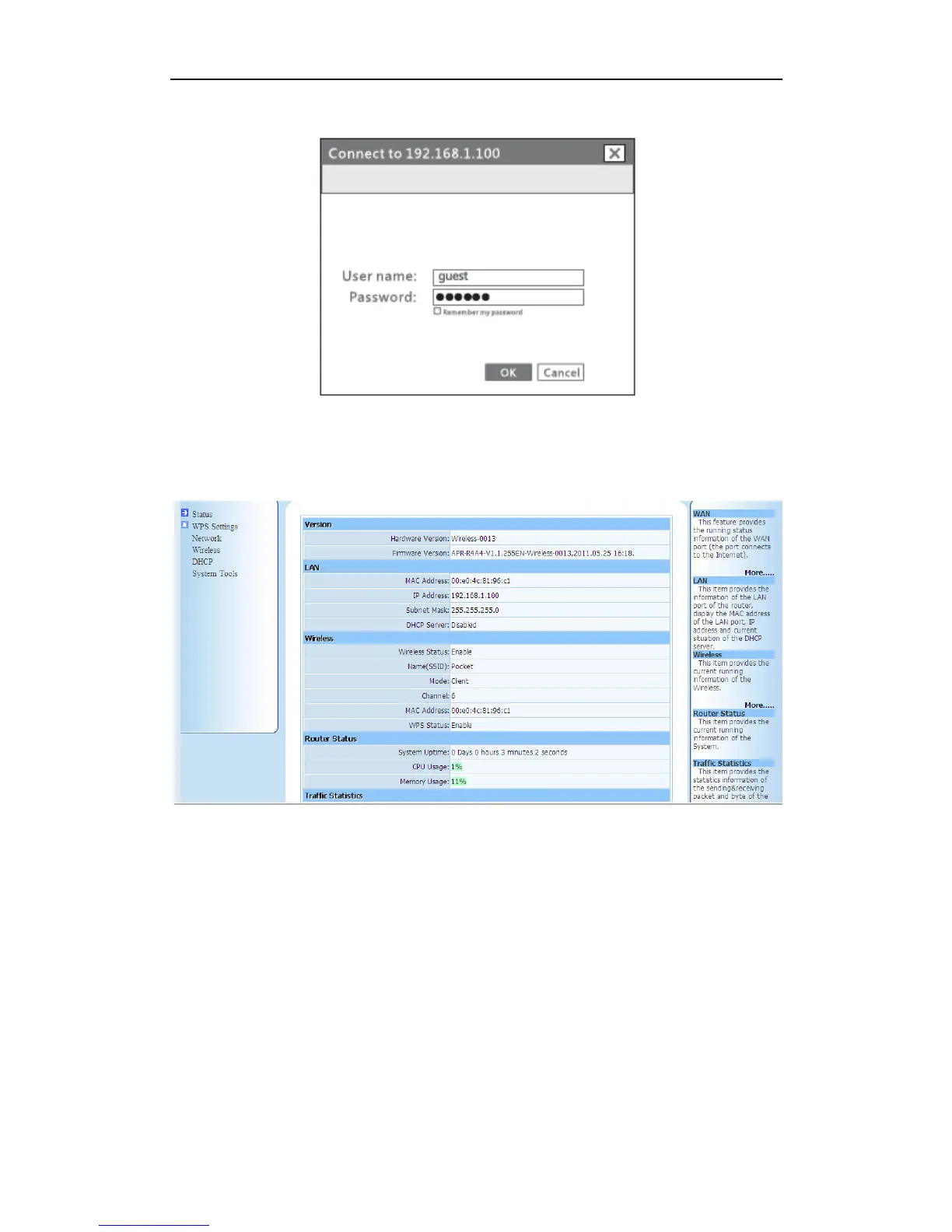

Figure 4-5
If you can see the picture as below(figure 4-6), that means you have successfully login web
management page of PORTABLE WIRELESS-N ROUTER /AP. You can start configuring
your PORTABLE WIRELESS-N ROUTER /AP now.
Figure 4-6
As you can see, when the device works under client mode, there are 7 items in the web page.
These items have already been described in AP-Router mode, so you can refer to
corresponding item in chapter 3. Please pay attention on chapter 4.2, which will show you
how to connect internet under client mode.
4.2. How to connect internet under client mode
1) Click “Wireless” to open wireless setting page, then click “AP Scan”.

Netis WF-2403 Specifications

General

VPN support	PPTP, L2TP, IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB version	2.0
Rack mounting	No
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
DHCP client	-
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-PSK, WPA2-PSK
Certification	FCC, CE
Storage temperature (T-T)	-30 - 80 °C
Operating temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	Activity, Link, Power, WLAN
Cables included	LAN (RJ-45), USB

Weight and Dimensions

Weight	- g
