Netis WF-2403 User Manual

Portable Wireless-N Router/AP User Manual
43

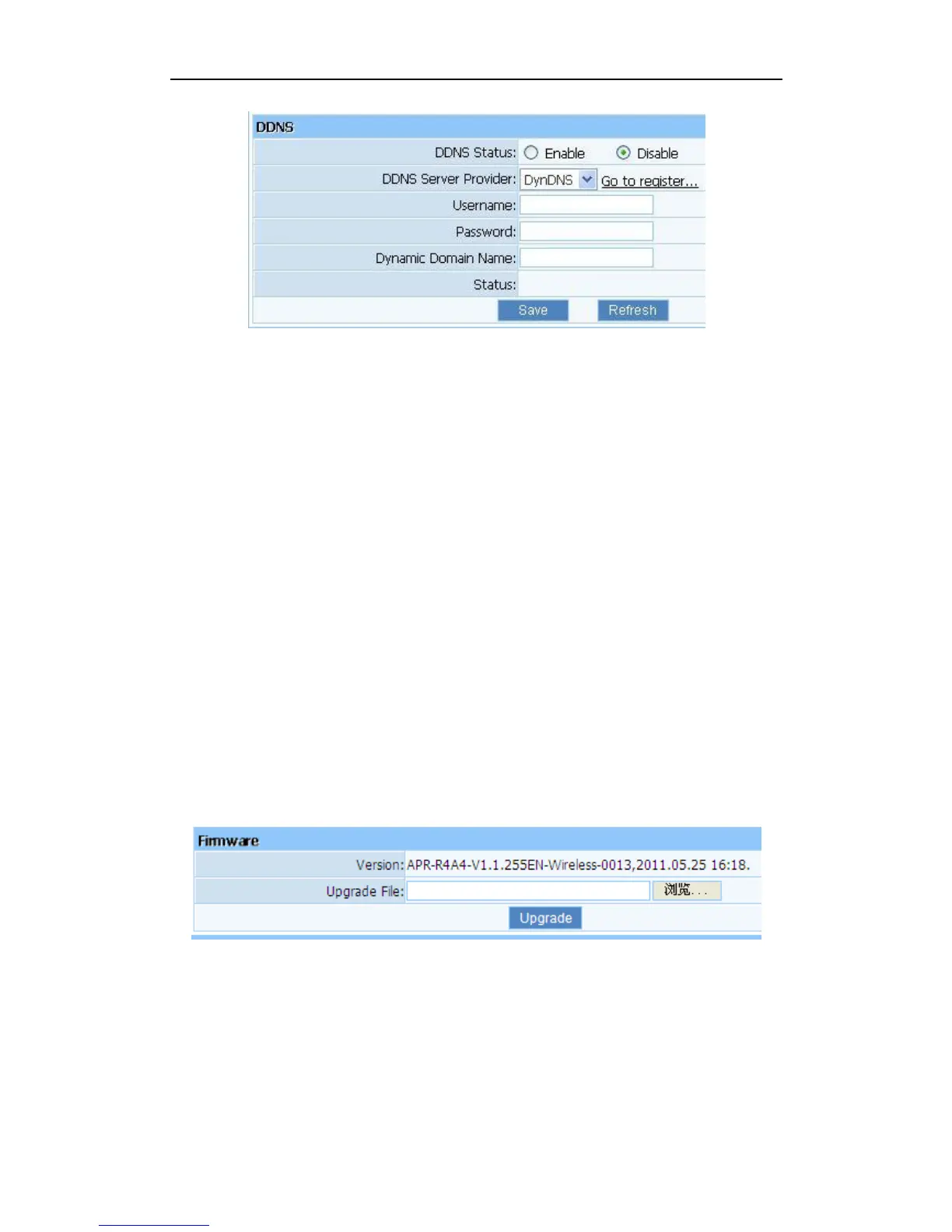

Figure 3-54
 DDNS Status: Current status of DDNS server.
 DDNS Server Provider: For example, if you want to use service of “roay.cn”, you have to
first register and accounts for it. Other DDNS service providers as the same.
 Username, Password, Dynamic Domain Name: After register an DDNS account from
DDNS service providers, you will get “User Name”, “Password”, ”Dynamic Domain
Name”, Input information in appropriate field.
3.13. System Tools
System management includes password setup, web Setup, upgrade, reboot, restore, WOL and
System time
3.13.1. Firmware
Click "Browse..."button and select a File to upgrade, after you have selected the appropriate file,
click "Upgrade" button to execute upgrade procedure. Do not cut off the power supply during
the process of upgrading.
Figure 3-55
3.13.2. Time Settings
You can choose the time server and the time zone for the system time.

Netis WF-2403 Specifications

General

VPN support	PPTP, L2TP, IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB version	2.0
Rack mounting	No
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
DHCP client	-
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-PSK, WPA2-PSK
Certification	FCC, CE
Storage temperature (T-T)	-30 - 80 °C
Operating temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	Activity, Link, Power, WLAN
Cables included	LAN (RJ-45), USB

Weight and Dimensions

Weight	- g
