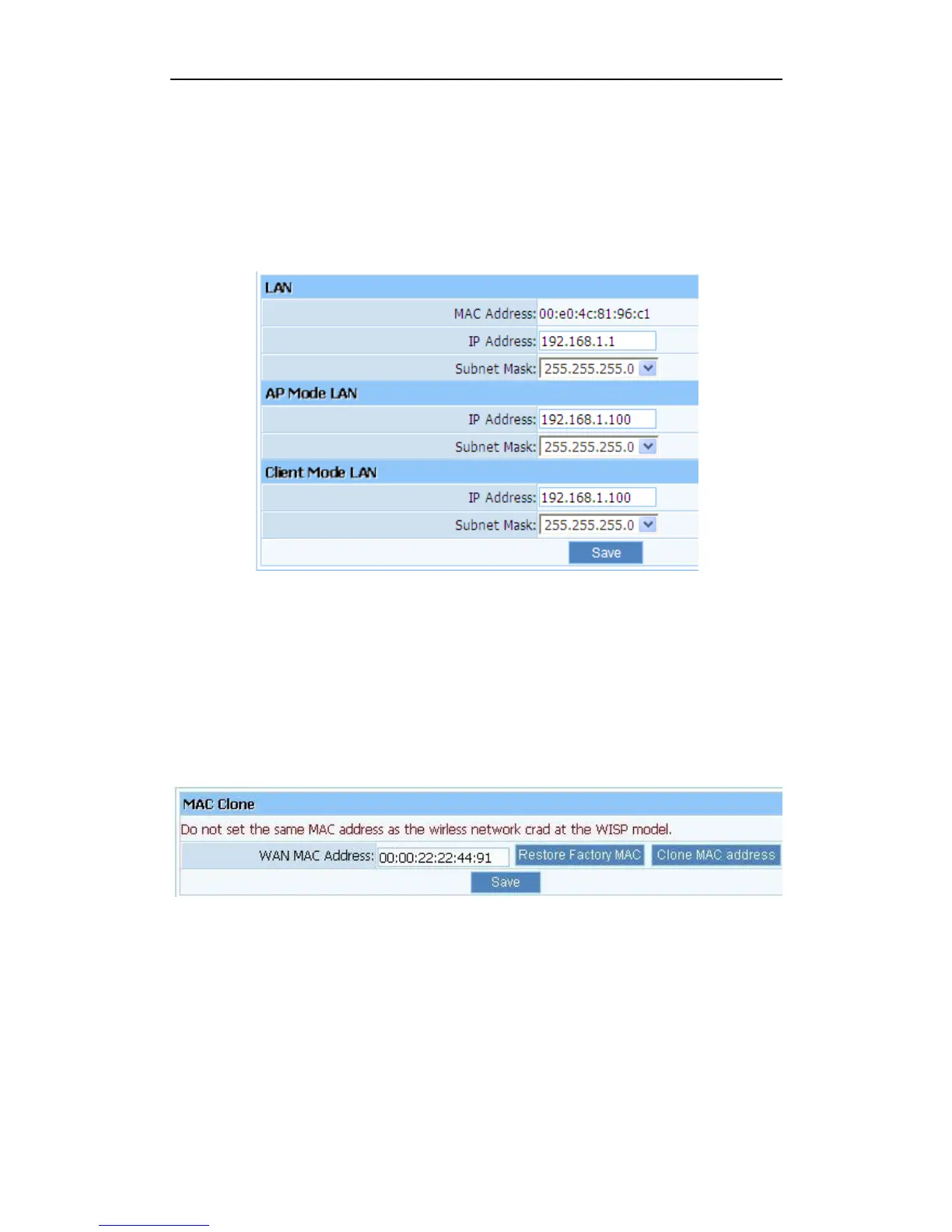

3.5.2. LAN
The IP address of LAN port is used for access router itself by computers that connect to the
router directly; here you can set IP address you need. The IP address format is like
***.***.***.***, and default IP address is 192.168.1.1, the default subnet mask is
255.255.255.0.
Figure 3-281
3.5.3. MAC Clone
The WAN port of router has a unique MAC address assigned by manufacturer; it called as
“Default MAC”. The “Clone MAC” is used for some special situations; For example, ISP only
allows certain MAC address to access the Internet, thus you can modify your WAN port’s MAC
address in accord with the requirement of ISP, avoiding ISP’s detection.
Figure 3-29
3.5.4. IGMP Proxy
Here you can set the IGMP Proxy ‘Router’ and ‘Bridge’.
