Netis WF-2403 User Manual

Portable Wireless-N Router/AP User Manual
24

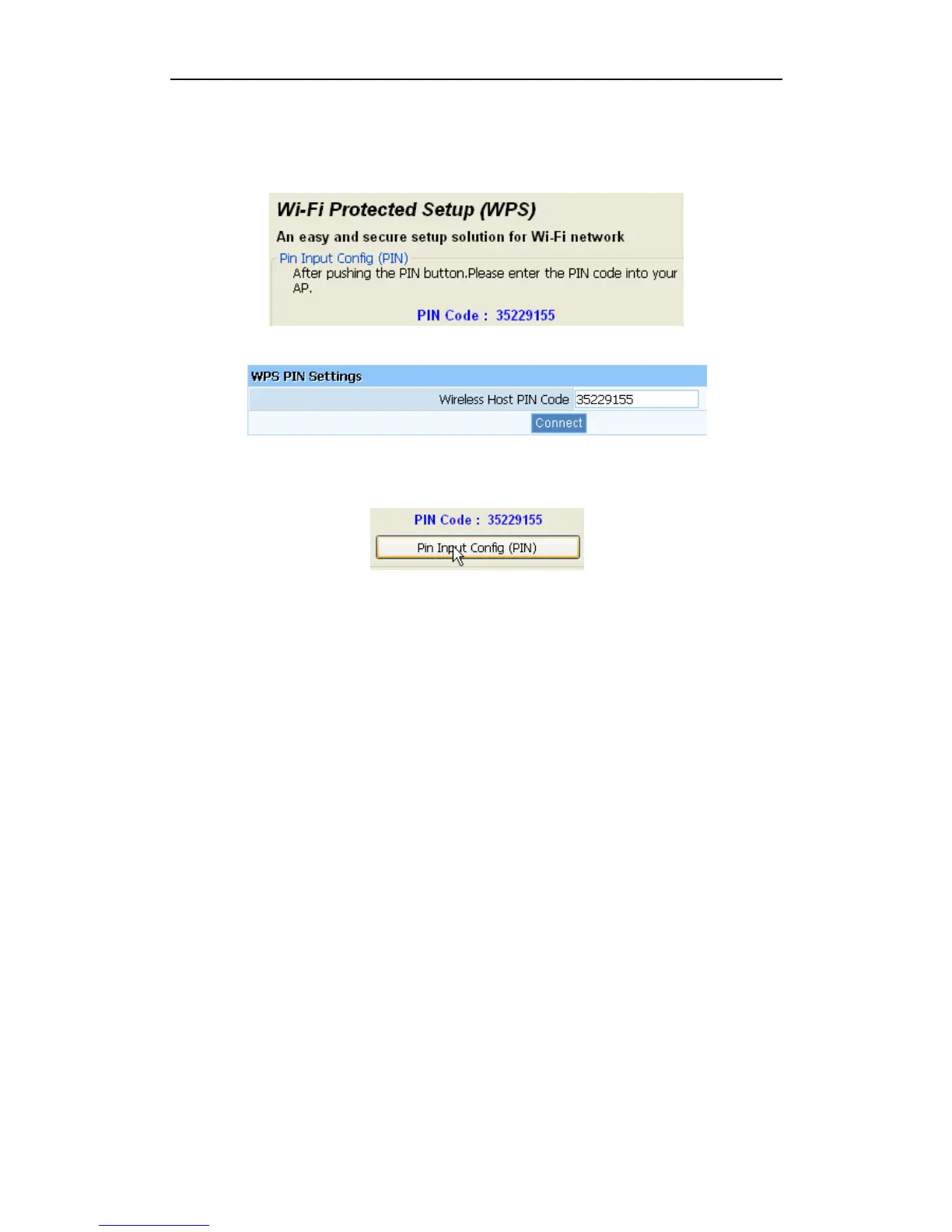

Method 2:
1. Input the PIN code of the adapter’s WPS page into the router’s WPS configure page, then
click ’connect’
Figure 3-23
Figure 3-24
2. Push the ‘PIN Input Config (PIN)’ in the Wi-Fi protect setup of the adapter
Figure 3-25
3. Select this router in the pop-up window, then click ‘Select’
4. The connection between the adapter and the router is be established automatically.
Method 3:
1. Select ‘Input PIN from AP’ in WI-FI protect setup page, input PIN of the router, then click
‘PIN Input Config (PIN)’
2. Select this router in the pop-up window, then click ‘Select’
3. The connection between the adapter and the router is be established automatically.
Remark
If there is more than one AP in the PBC mode when you use the method 1, there will be session
overlap. Please using method 2/3 or wait for a while push the button again.
3.5. Network
3.5.1. WAN
This item provides two access types for you to configure the WAN parameters. They are
wired access and wireless access.

Netis WF-2403 Specifications

General

VPN support	PPTP, L2TP, IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB version	2.0
Rack mounting	No
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
DHCP client	-
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-PSK, WPA2-PSK
Certification	FCC, CE
Storage temperature (T-T)	-30 - 80 °C
Operating temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	Activity, Link, Power, WLAN
Cables included	LAN (RJ-45), USB

Weight and Dimensions

Weight	- g
