Netis WF-2403 User Manual

Portable Wireless-N Router/AP User Manual
34
 Preamble Type: "Short Preamble" is suitable for heavy traffic wireless network. "Long
Preamble" provides much communication reliability; the default setting is "Long
Preamble”.

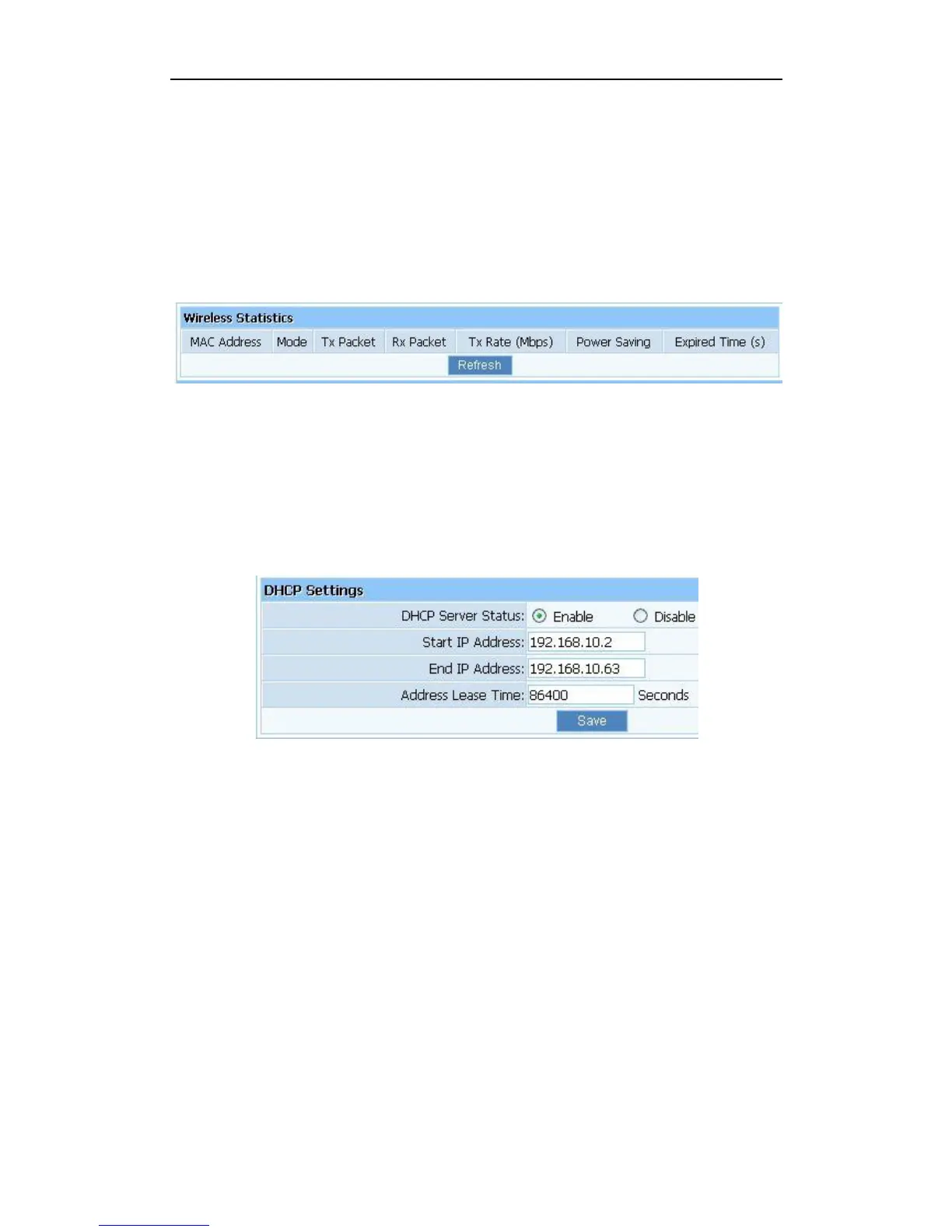

3.6.5. Wireless Statistics
Display current status of the wireless client associate with AP.
Figure 3-39
3.7. DHCP
3.7.1. DHCP Settings
Figure 3-40
 DHCP Server Status: Keep the default setting “Enable”, so router is able to use DHCP
function. If a DHCP server has already existed in the network, please select “Disable”.
 Start IP Address: The IP Address is used for allocate IP address by DHCP server; enter the
start IP address.
 End IP Address: The IP Address is used for allocate IP address by DHCP server; enter the
end IP address.
3.7.2. DHCP Clients List
Display the state of assigned IP by DHCP Server.

Netis WF-2403 Specifications

General

VPN support	PPTP, L2TP, IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB version	2.0
Rack mounting	No
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
DHCP client	-
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-PSK, WPA2-PSK
Certification	FCC, CE
Storage temperature (T-T)	-30 - 80 °C
Operating temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	Activity, Link, Power, WLAN
Cables included	LAN (RJ-45), USB

Weight and Dimensions

Weight	- g
