Netis WF-2403 User Manual

Portable Wireless-N Router/AP User Manual
38
tunnel, the router supports IPSEC pass-through, PPTP pass-through and L2TP pass-through.

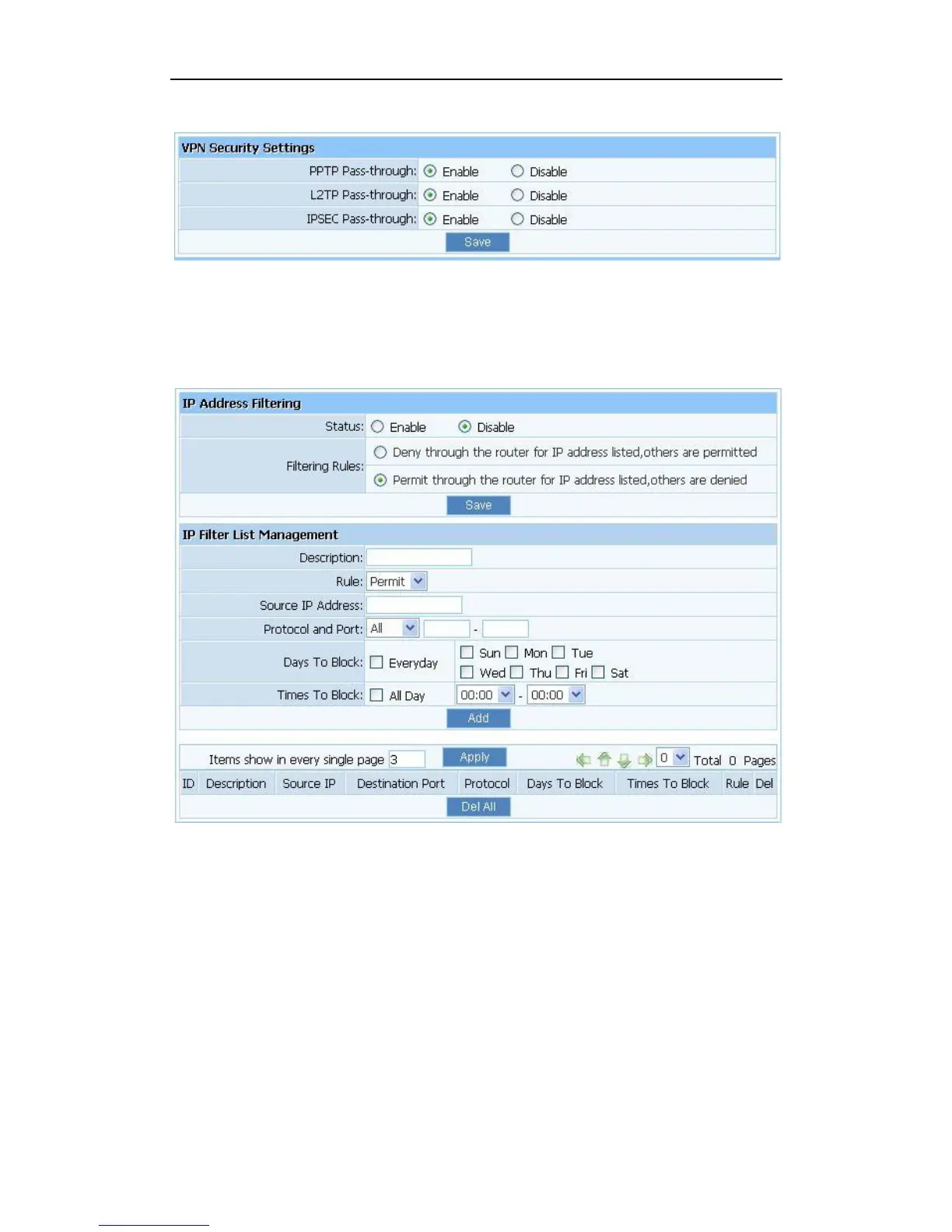

Figure 3-48
3.9.2. IP Address Filtering
Figure 3-49
 Status: the default is disable. The rules of “Internet access control” based on source IP,
port number and protocol.
 Description: describe IP Firewall list to tell from different IP Firewall lists.
 Rule: you can select permit or deny. The default is permit.
 Source IP address: input the source IP address that you want to control. The default
format is ***.***.***.***(e.g: 192.168.2.3).
 Protocol and Port: If the rule has already existed in “Protocol Template”. You can select
appropriate item and apply it. Or you can input protocol type and port number manually,
click “add” button, then the item will displayed in the list.

Netis WF-2403 Specifications

General

VPN support	PPTP, L2TP, IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB version	2.0
Rack mounting	No
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
DHCP client	-
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-PSK, WPA2-PSK
Certification	FCC, CE
Storage temperature (T-T)	-30 - 80 °C
Operating temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	Activity, Link, Power, WLAN
Cables included	LAN (RJ-45), USB

Weight and Dimensions

Weight	- g
