Netis WF-2403 User Manual

Portable Wireless-N Router/AP User Manual
45

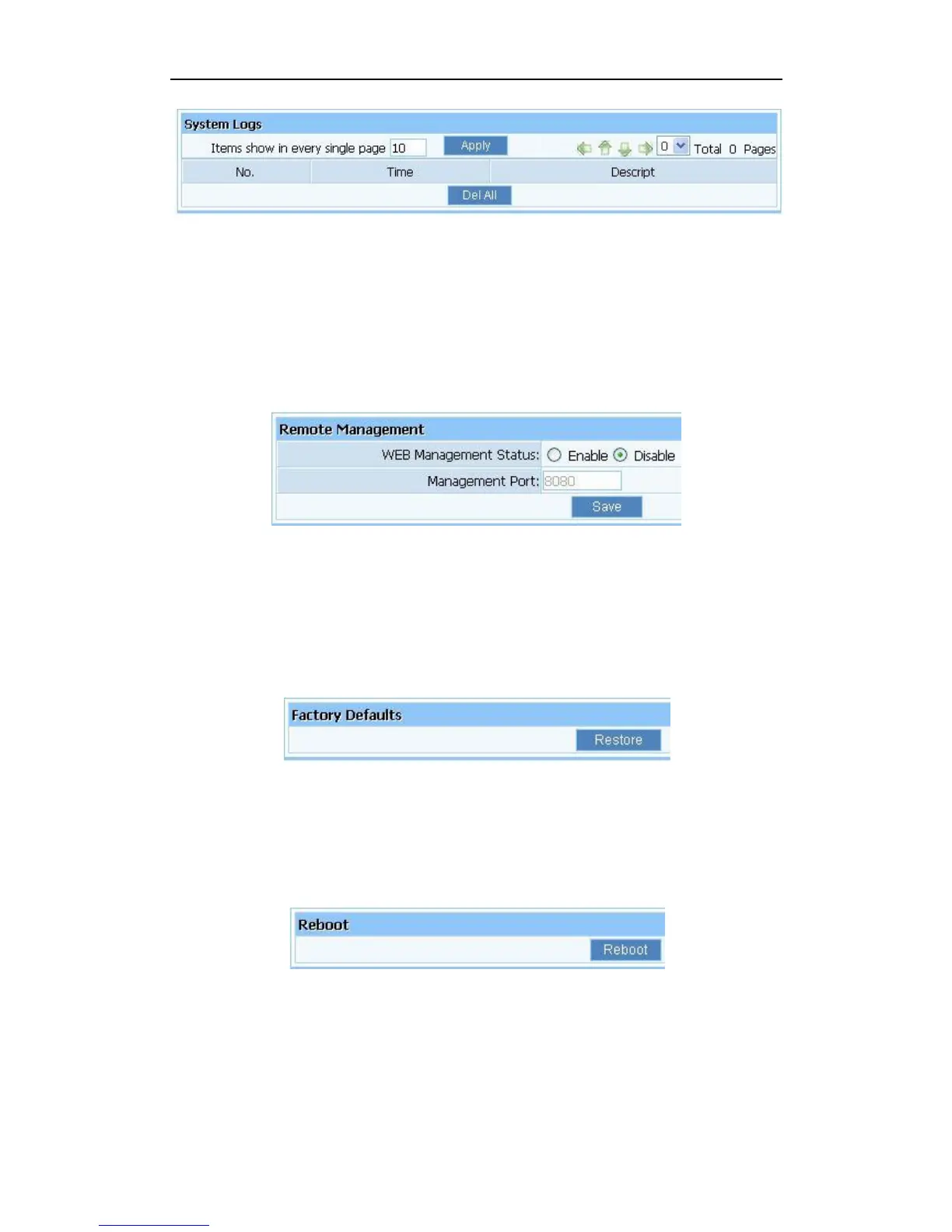

Figure 3-59
3.13.6. Remote Management
WEB Management Status: the default is disable. Router can be accessed on the remote site
using “Web setup”. Check the “Management Port” and enter the port number and then press
“save” button to enable web management.
Figure 3-60
3.13.7. Factory Defaults
Click "Restore" button, the Router will erase all of your settings and replace them with the
factory defaults, make sure you have backup current settings before click this button.
Figure 3-61
3.13.8. Reboot
Click “Reboot” button to restart the router.
Figure 3-62
3.13.9. Backup
Click “Backup Parameter ” button to backup system parameter as a file. you can recovery

Netis WF-2403 Specifications

General

VPN support	PPTP, L2TP, IPSEC
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB version	2.0
Rack mounting	No
Frequency range	2.4 - 2.4835 GHz
USB ports quantity	1
DHCP client	-
Security algorithms	128-bit WEP, 64-bit WEP, SSID, WPA-PSK, WPA2-PSK
Certification	FCC, CE
Storage temperature (T-T)	-30 - 80 °C
Operating temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	Activity, Link, Power, WLAN
Cables included	LAN (RJ-45), USB

Weight and Dimensions

Weight	- g
