7 MAINTENANCE
PAGE
7.2

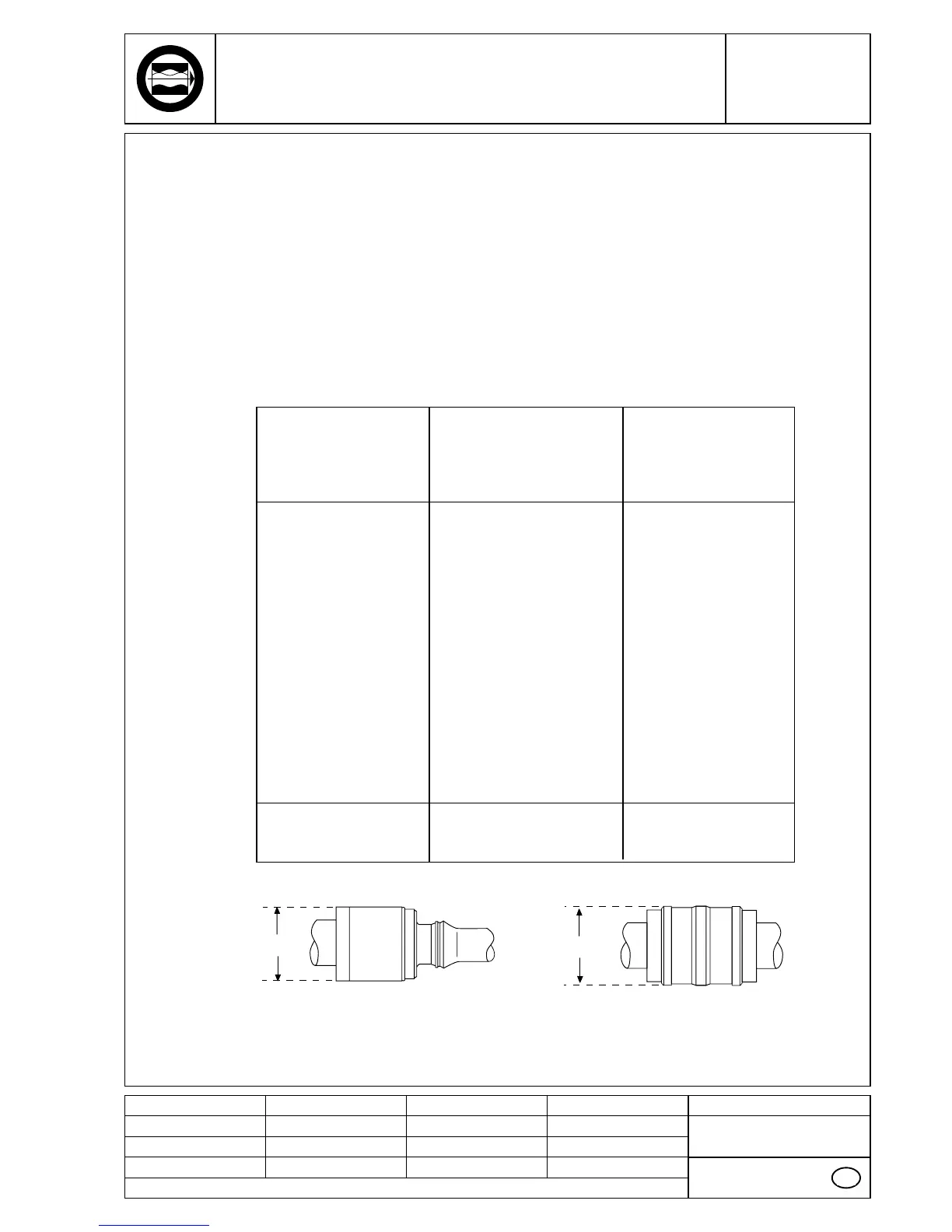

7.3 Lubricating the Pin Joints with SM-Pin Joint Seals
■ It is advisable to change the oil and check the seals
of the pin joints:
– when renewing worn joint parts
– when opening the pump for any reason.
The quantity of oil added per pin joint is
a function of the joint external diameter D:
GB
Joint external Basic Quantity of oil
diameter D joint size per joint
in mm in cm
3
(see sketch)
28 NM 015 1,5
30 NM 021 2
40 NM 031 5
54 NM 038 15
65 NM 045 22
76 NM 053 36
83 NM 063 78
102 NM 076 165
125 NM 090 205
148 NM 105 450
162 NM 125 470
Journal cross joint
175 NM125 1650
D
D
Journal cross joint
Pin joint
