9 Removal and Fitting of End Stud, Stator
and Pump Housing
The pump with attached pipework should be empty
and must have cooled off!
Disconnect the pipework on the suction side and
pressure side of the pump.
Caution for pumps with ceramic rotors!
Where a pump is fitted with a ceramic rotor (1999) the following
operations should be carried out with great care.
Do not use any force or sharp tools! Special care must be taken
to prevent heavy strokes, vibrations or impact by a hammer.
2035/1G
2035/2
2035/1
2005
3020
3015
A
3070

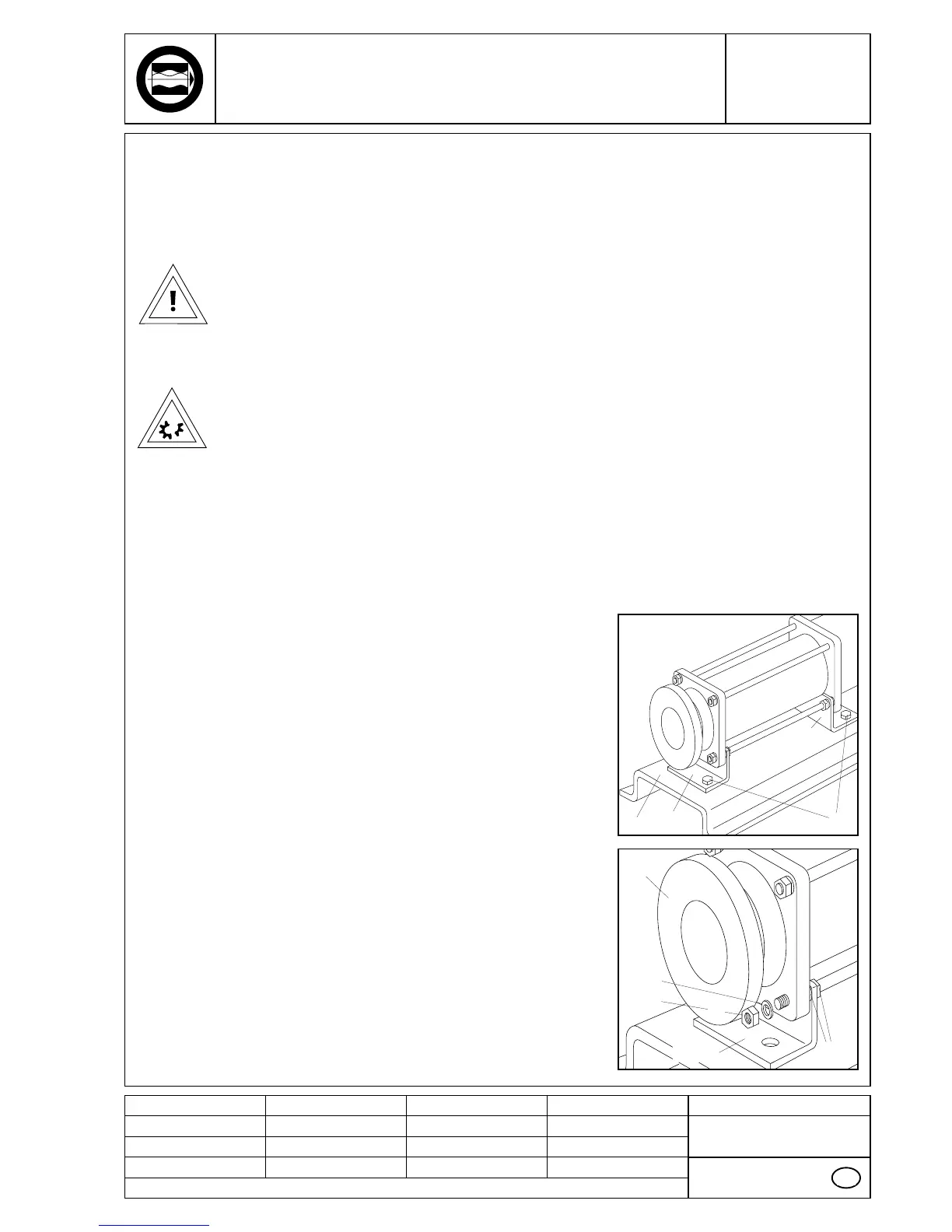

Dismantling
Remove the securing screws (S) from support feet
(2035) to baseplate (G).
Unscrew the hex nuts A (3020) and remove with
spring washers (3015), then withdraw the end stud
(2005) and first support foot (2035/1) with washers
(3070).
■
■
