NETZSCH NEMO - Before Start-Up; Revision; Wartung

7 MAINTENANCE
PAGE
7.3R
text no.
R 07402-1/1
issued: 18.05.2011 Revision: 3
copy to:
Before start-up:
I Fill vessel to about two thirds or up to MAX mark on the sight glass.
Wartung:
I In regular intervals check the oil level and colour of the buffer fluid. Control intervals
should be determined by the user according to his experience in operation.
p
3
8
11
1
9
B
≥
15
p
1
Ⱦ
14
12
10
5
2
6
7
3
15
13
≥
1m
4
AF

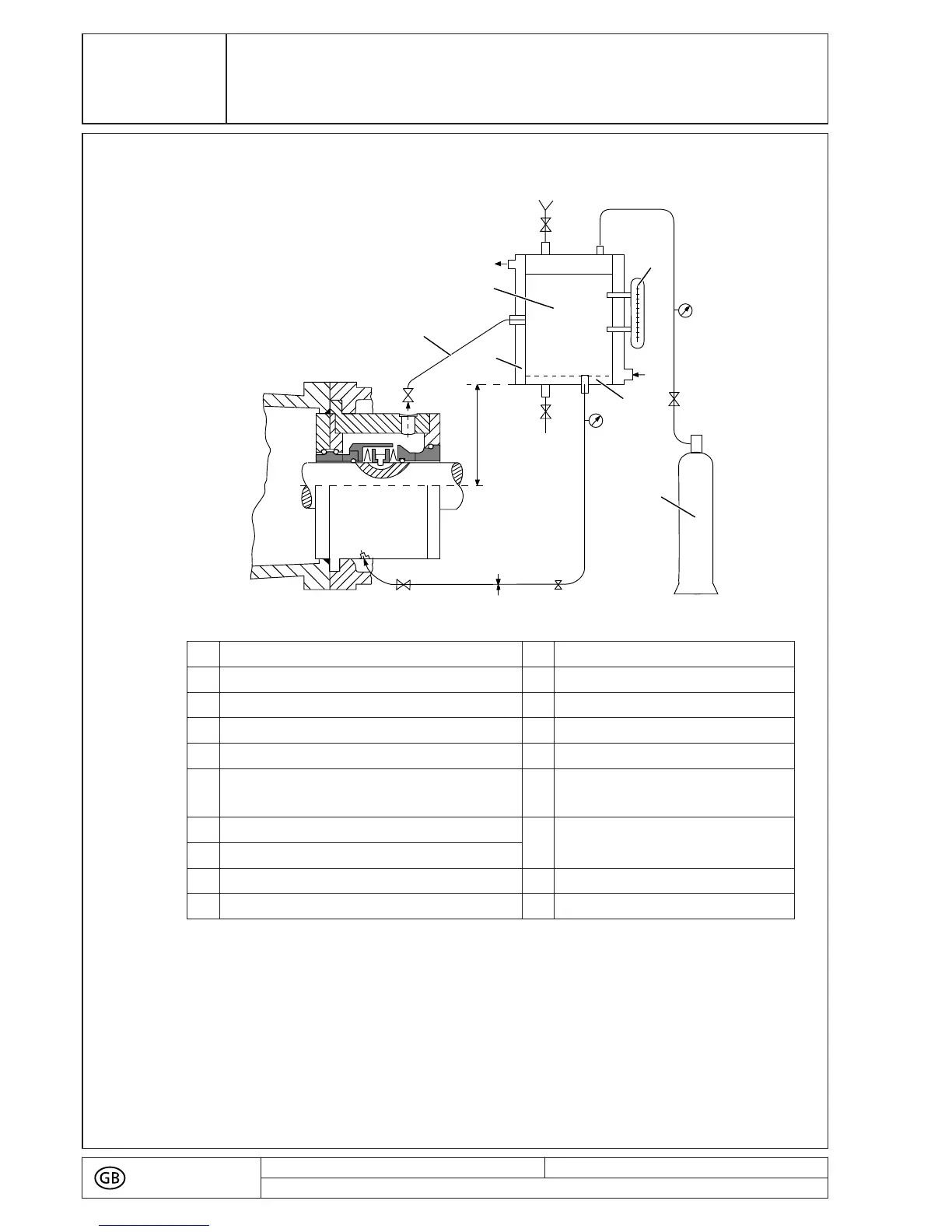

1 Vessel, capacity about 5 - 10 liters 11 Coolant outlet
2 Sight glass (MIN/MAX marks) 12 Sump deposit zone, ca. 50 mm
3 Nitrogen bottle (possibly compressed air) 13 Inlet valve
4 Safety valve 14 Outlet valve
5 Manometer 15 Waste outlet
6
Thermometer (if possible with MIN/MAX
indicator)
A Atmosphere
7 Drain valve
B pipe mounting, no bubbles
8 Refill device for buffer fluid
9 Cooling jacket or cooling spiral, inside F pumped media
10 Coolant inlet
