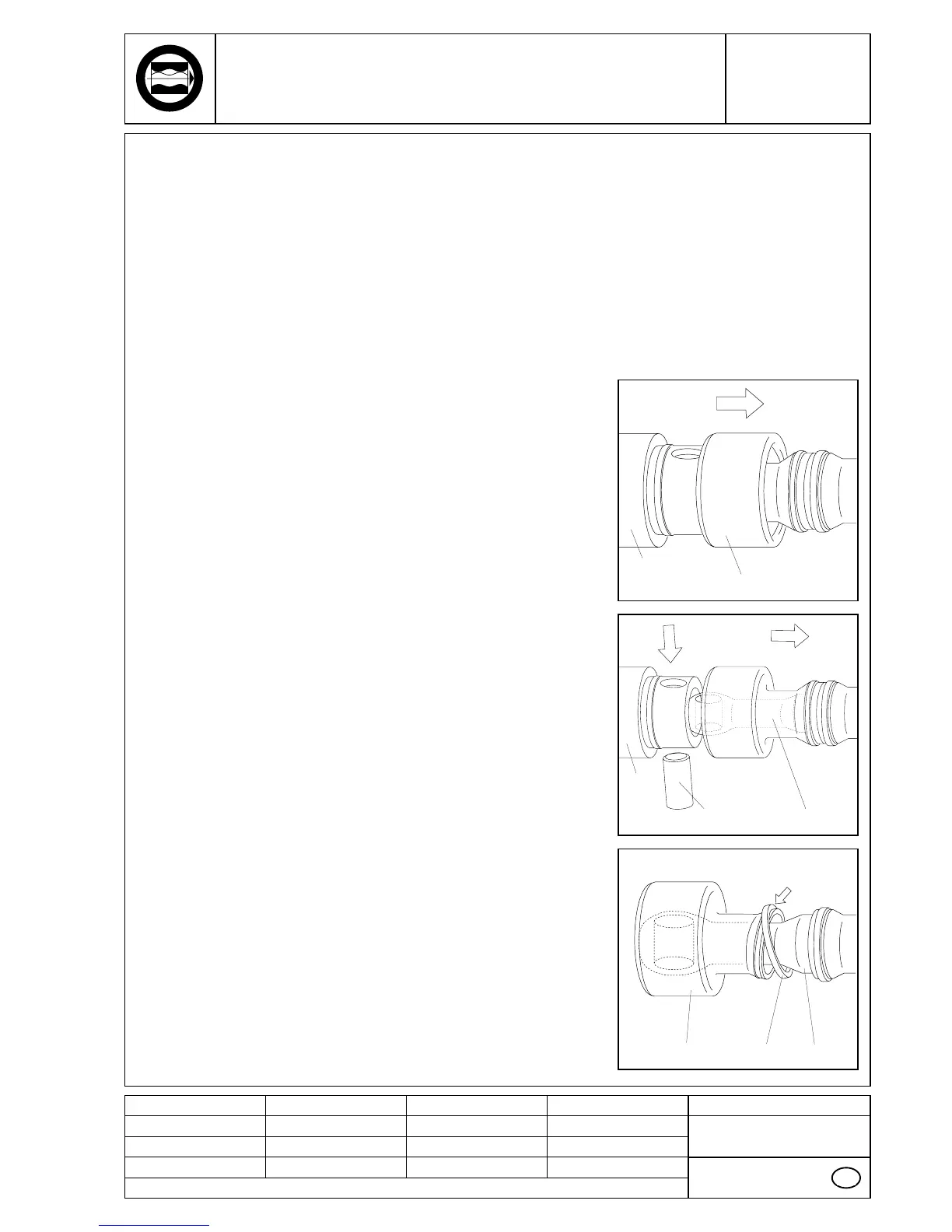

10.3 Dismantling and Assembly of the Rotating Parts
with Pin Joints with SM-Pin Joint Seal
(joint basic size NM015)
For removal and refitting of the rotor (1999) and coupling rod (1998)
the pin joints should be dismantled and re-assembled as follows:
Dismantling:
Push the SM-pin joint seal (8235) away from the
rotor (1999), drive shaft (1005) or connecting shaft
(1050) so the bore for the pin (5075) comes free.
Press the pin (5075) out of the rotor (1999),
connecting shaft (1050) or drive shaft (1005).
Then withdraw the coupling rod (1998) from the
bore of rotor (1999), connecting shaft (1050) or drive
shaft (1005).
Push the SM-pin joint seal (8235) towards the head
of coupling rod (1998). In the narrow coupling rod
section press the clamp ring (5425) out of the
groove of the seal. Then slip the SM-pin joint seal
(8235) and clamp ring (5425) off over the head of the
coupling rod (1998).
■
■
■
5075
8235
1999
1005, 1050
1999
1005
1050
8235
1998
19985425
