9 DISMANTLING AND ASSEMBLY
OF THE PUMP HOUSING
PAGE
9.1
Date Name Signed Revision:
issued 24.06.03 Mangel Substitute for issue
approved 25.06.03 Denk of
released 25.06.03 Denk
text no. 30100
copy to:

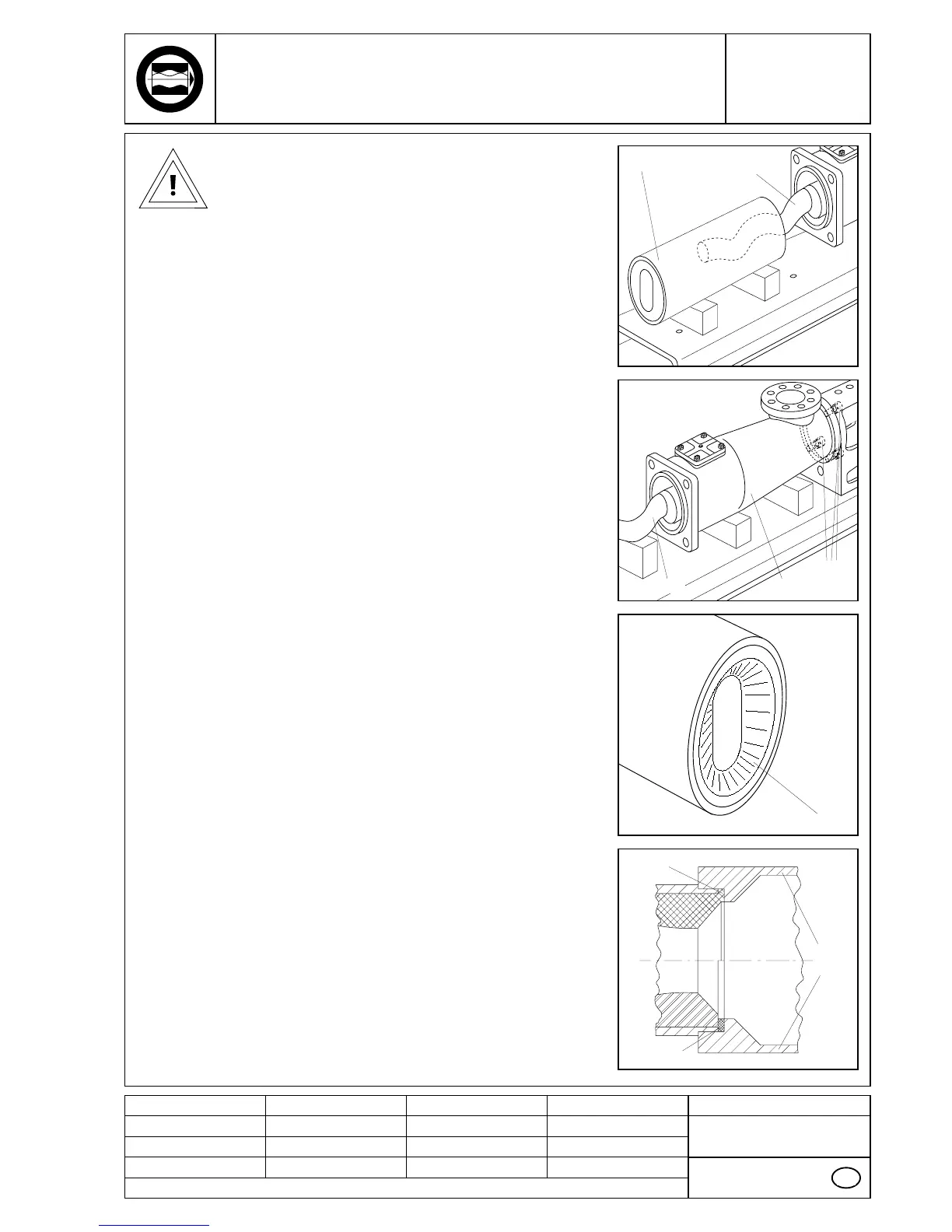

Remove the hex nuts (2030) with spring washers
(2025).
Pull the pump housing (2010) off forward.
■
■
3005 1999
Caution for pumps with tubular rotors:
Where the walls of tubular rotors are worn in the
wear zones, pumping medium may occur inside the
rotor and may come out when pulling off the
stator.
Ensure that protective measures have been taken
when pumping dangerous media!
Pull the stator (3005) out forward.
A stator extractor can be supplied as special
accessory.
■
1/2 geometry
GB
20101999
2030
2025
E
A
B
D
8005
2005
2010
Assembly
Refitting is a simple reversal of this procedure.
When refitting the stator (3005) check direction of
stator (3005) is correct! The funnel-shaped inflow
side (E) of the stator (3005) must show to
– the pump housing (2010) when rotation is
anti-clockwise
– the end stud (2005) when rotation is clockwise
when viewed on pump shaft end.
Elastomer stators (A) have integrated front side
sealing profiles (D). They don't need additional gas-
kets for sealing off the end stud (2005) and the
pump housing (2010).
Solid stators (B) have no integrated front side sea-
ling profiles. Therefore additional gaskets (8005)
should be installed to seal off the end stud (2005) as
well as the pump housing (2010).
■
■
■
