9 DISMANTLING AND ASSEMBLY
OF THE PUMP HOUSING
PAGE
9.1R
Revision:
Date Name Signed
Substitute for issue issued 24.06.03
Mangel
of approved 25.06.03
Denk
text no. 30100
released 25.06.03
Denk
copy to:

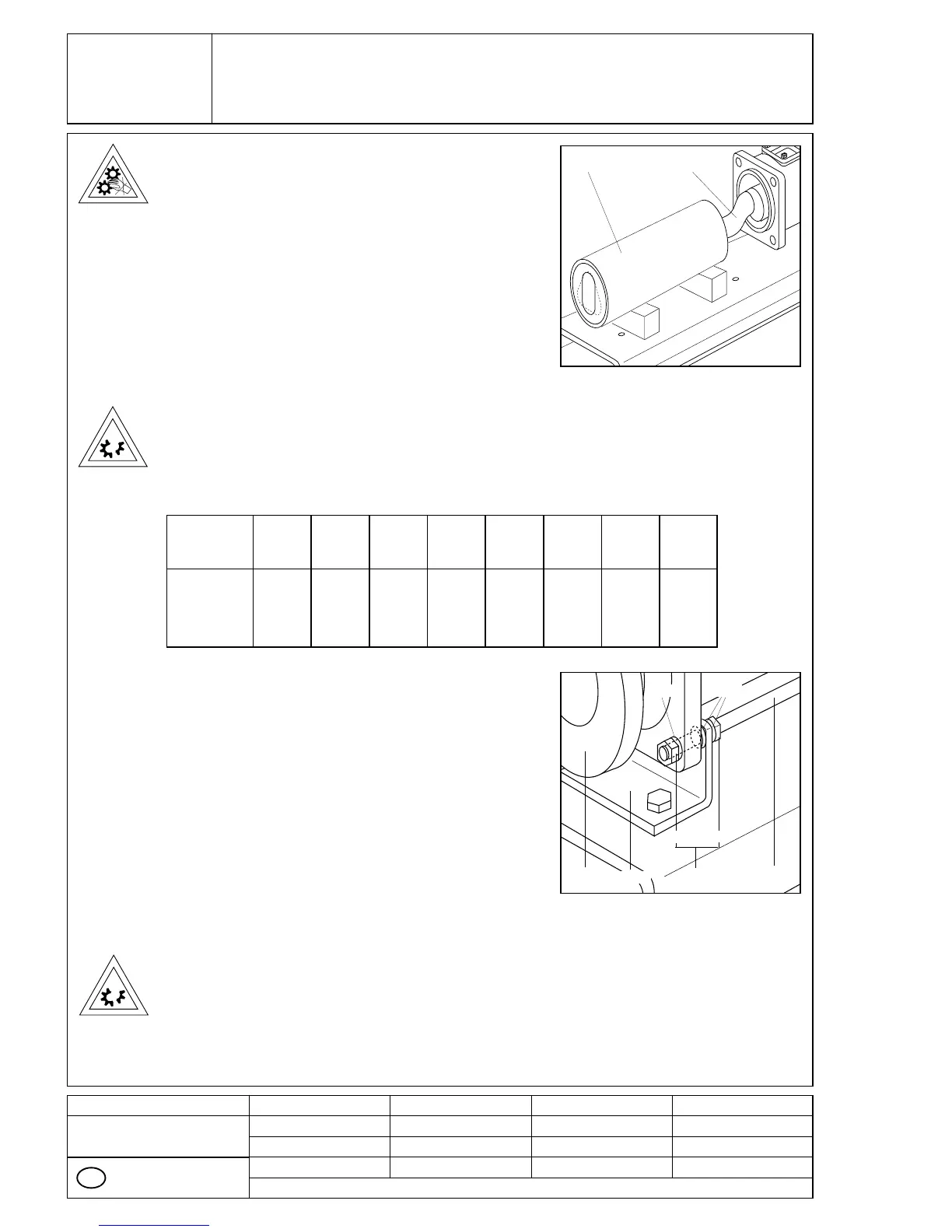

Be careful when engaging the stator (3005) and
rotor (1999). Do not trap your fingers!
Do not reach inside the stator!
Push the stator (3005) with a rotating movement on
to rotor (1999).
Apply an assembly device and some glycerine to
ease engaging the stator (3005) and rotor (1999).
■
3005 1999
GB
Fastening the end stud (2005):
Screw the hex nuts C (3020) down into the thru bolts
(3010) as far as possible.
Slip on the first washers (3070), the support foot
(2035), the second washers (3070), the end stud
(2005) and tighten with spring washers (3015) and
hex nuts A (3020).
Finally, fasten the support foot (2035) from behind
with the two hex nuts C (3020).
When tightening hex nuts (2030) a gap will remain between
drive stool (0085) and pump housing (2010).
Please do not try to close this gap by overtightening the nuts!
Drive stool (0085) may break!
Torque values for
hex nuts (2030):
■
■
2005
30103020
3015 3070
2035
A
C
Ensure during refitting that the O-ring (8015) or, where a heating jacket
(3025) is installed, the O-rings (8030) are in perfect condition and will sit
correctly.
Ensure that the drain plug (2015) is not screwed too tightly into the pump
housing (2010), since otherwise its conical thread may break the pump
housing (2010).
The torque should be about 40 - 50 Nm.
Size M6 M8 M10 M12 M16 M20 M24 M30
Required
torque8 1530457580100120
Nm
