• For two axis systems, only two axes of data will be
transmitted

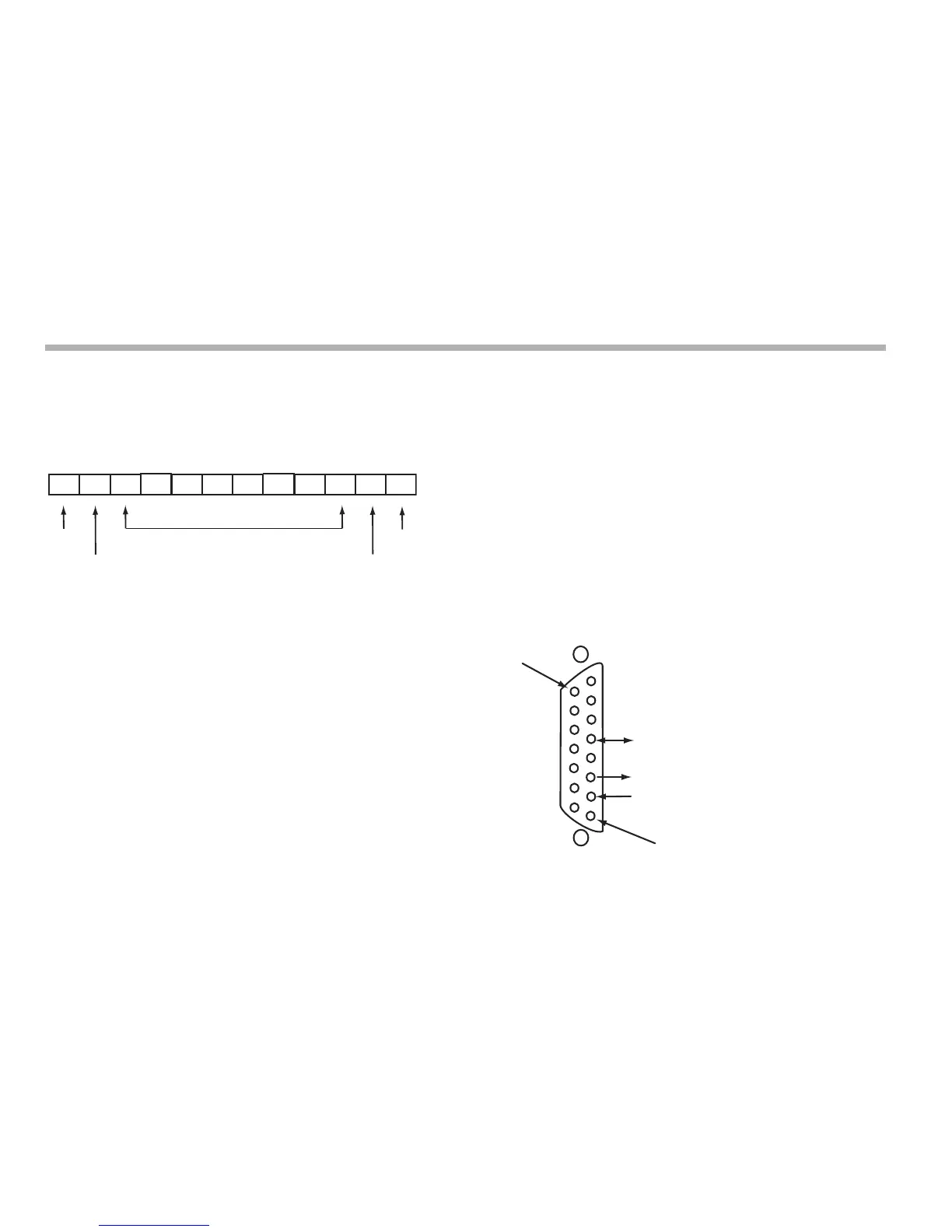

• The data packet structure of 12 characters is defined as
follows:
The Axis ID is the character shown in the axis 15-segment
display at the time of printing. The exception is that for three-
axis Lathe applications a lower case ‘z’ is used to denote the
compound Z’-axis. An upper case ‘Z’ is used to denote the
standard Z-axis.
System settings
Baud rate = Configurable CR
(300, 1200, 2400, 4800, 9600, 14400, 19200, 38400)
Data bits = 8
Parity bit = Configurable (Even, Off, None)
Stop bits = 1
Flow control = None
Default system settings
Serial option = None
Serial rate = 1.0 (i.e. once per second)
Baud rate = 9600
Parity bit = None
Connections
You connect the RS232 to the C80 via a 15-pin D-type
connector at the rear of the display.
