Newall C80 User Manual

Connections
2-1
N
Connections
This chapter shows the cable connections for the C80.

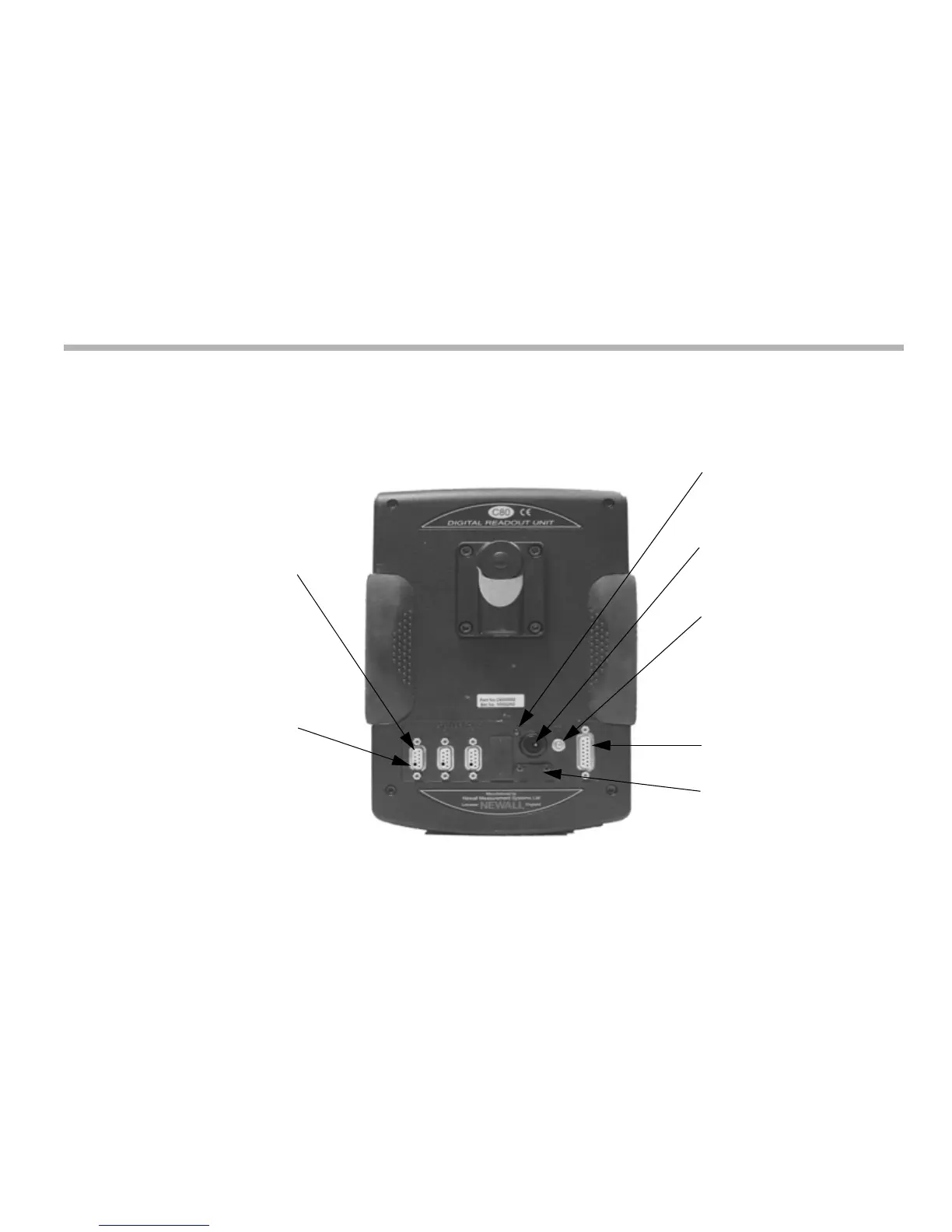

Cable connections
Power Indicator Lamp
2.5mm Power Inlet
15 Vdc ±10% @1A
Equipotential Terminal
(Should be grounded to
machine, using the
lead provided)
RS232 Connection
Cable Anchor
(The power cable should
be secured)
Blanking Plug
(Do not remove these, as they
prevent you accidentally
connecting incorrect encoders)
Encoder Inputs
9-way ‘D’
(All plugs should be
screwed finger tight)
