Mill functions
8-1
N
Mill functions
This chapter describes the special functions available in Mill
mode.
Mill functions are available when you have configured the C80
for either Mill or Generic operation.
Bolt hole circle
You cannot use arc contouring and bolt hole circle functions at
the same time.
This function is also known as Pitch Circle Diameter (PCD).
This function calculates the locations of the holes, given the
following parameters:
1. Plane (X,Y; X,Z or Y,Z)
2. Circle Centre location
3. Circle Diameter
4. Number of Holes (up to 99)
5. Starting Angle (measured anti-clockwise from three o’clock)

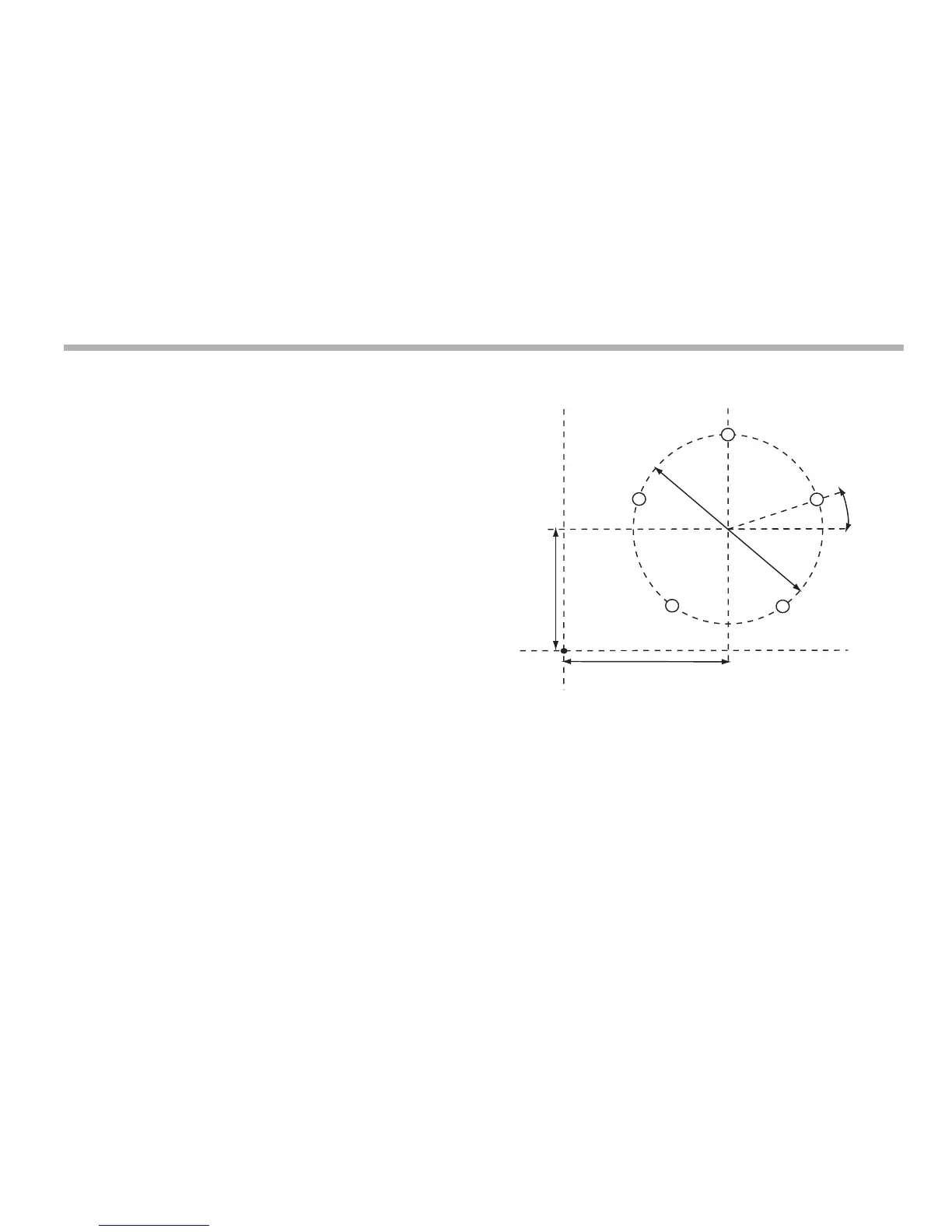

Example
