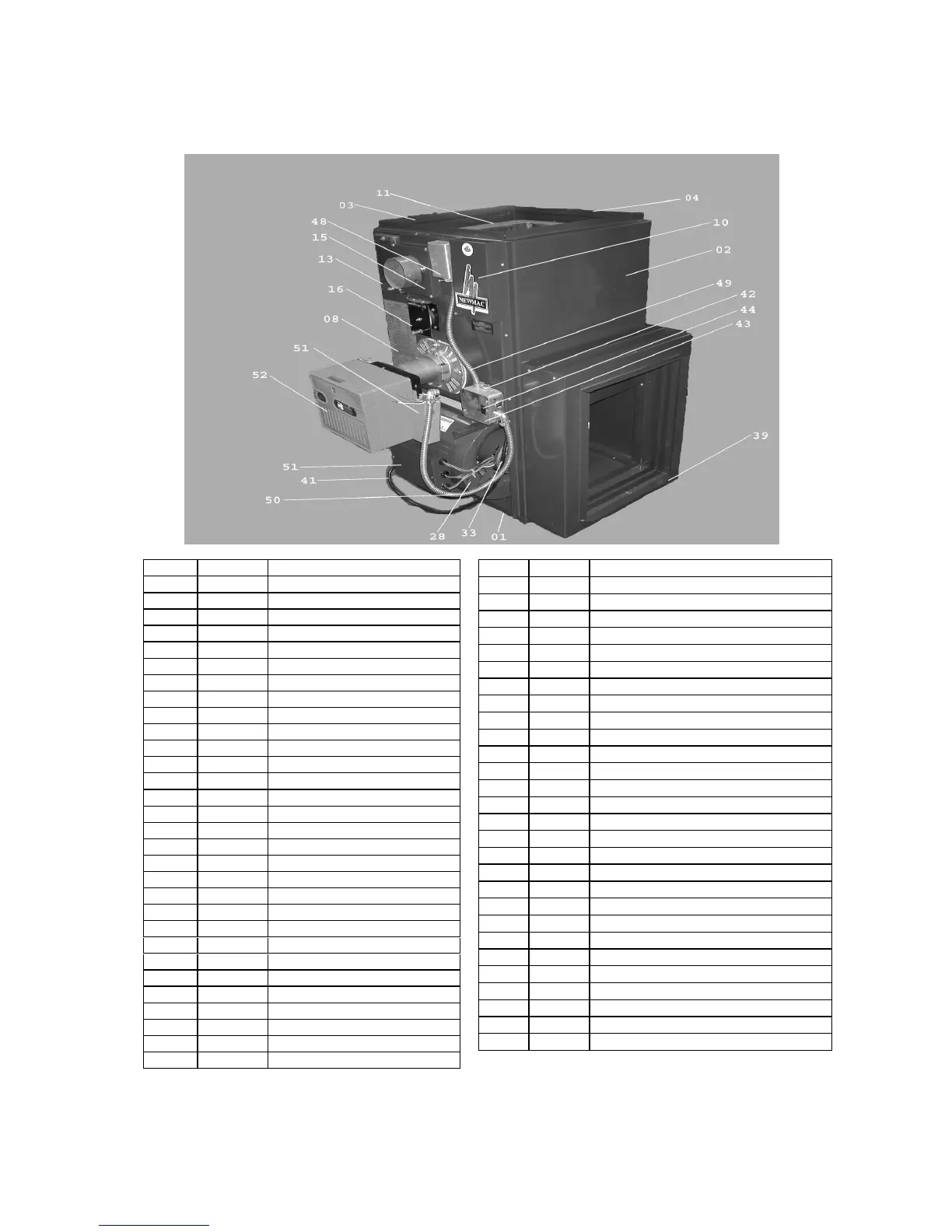

TABLE 9 LFR PARTS LIST
Item No. Part No. Description
01 4110507 Base Panel
02 4110503 Side Panel RH
03 4110504 Side Panel LH
04 4110506 Rear Panel
05 4110505 Fan Partition
06 4110517 Side Cover, Blower
07 4110512 Front Blower Access Panel
08 4110500 Front Panel
09 4110515 Cleanout Cover Left Casing
010 4110514 Cleanout Cover Right Casing
011 4160301 Heat Exchanger Assembly
012 2080063 Cleanout Cover Gasket
013 3100411 Cleanout Cover
014 4110515 Breech Collar
015 4110514 Breech Cover
016 4120479 Inspection Door Assembly Complete
017 4110509 Inspection Door Plate
018 4110510 Inspection Door Support
019 4110511 Inspection Port Cover
020 2080065 Inspection Door Gasket
021 2070018 Inspection Door Hinge Pin
022 2220002 Torsion Spring
023 3140122 Inspection Door Gasket Retainer Disk
024 4060250 Smoke Pipe Assembly
025 2080064 Smoke Pipe/Breech Gasket
026 3100443 Breech Cover Plate
027 4010310 Stainless Steel Baffle
028 4050200 10” Direct Drive (DD) Blower Assembly
027 4010310 Stainless Steel Baffle
030 4050115 Blower Speed Junction Box Assembly
Item No. Part No. Description
031 2010040 5uF 370v Capacitor
032 2040116T GT10DD or DCT-1020-1020-5 Blower
033 2020007 1/3HP 4 speed Direct Drive Motor
034 4110502 Fan Slide, 10"
035 2040114T G9DD, DC- or DCT-916-916-5 Blower
039 4110501 Filter Rack Assembly
040 2180007 20" x 25" Furnace Air Filter
041 2200010-2 48" Blower Wire Harness
042 2200101 4" x 4" Junction Box
043 2200103 4" x 4" Junction Box Cover, switch type
044 2200258 Low Speed Switch
045 2010041 Honeywell R8258A Fan Center (optional)
046 2080067 Front Casing Lower White Gasket
047 2080116 Front Limit Control Yellow Insulation
048 2010024 8" Fan/Limit Control, Honeywell L4064A1086B
049 4050194 Fan and Limit Cable Set, 16"
050 4050195 Burner Cable Set, 30"
051 2010034 Riello Switching Relay, AL1008
052 5400010 Oil Burner, Riello 40F3-6
052A
5400011PP
Oil Burner, Riello BF3-6
054 Cleaning tool
052B 2110147 Oil Burner, Beckett AFG70MM (NM701)
052C 5400032
Oil Burner, Beckett Pre & Post AFG70MM (NM702)
052D 2110162 Oil Burner, Carlin EZ Pro
052E 5400056 Oil Burner, Carlin Pre & Post EZ Pro
