Newmac LFR-75 - Beckett Burner Model Afg60 Yhhs Exploded Assembly

29

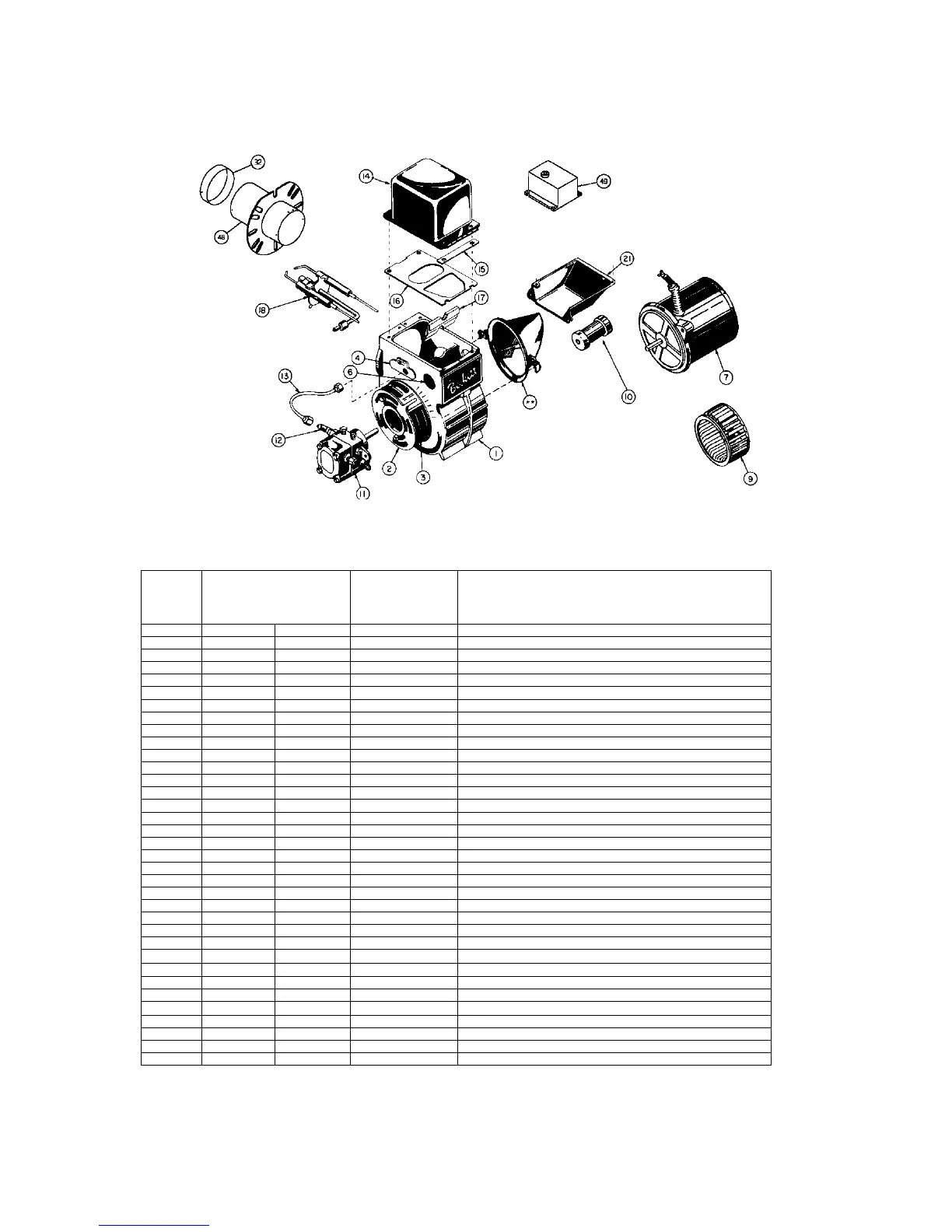

FIG. 20. BECKETT BURNER MODEL AFG60YHHS EXPLODED ASSEMBLY
BECKETT BURNER MODEL AFG60HYYS PARTS LIST
PART NUMBER
ITEM
NO.
BECKETT NEWMAC
BURNER MODEL
AFG60YHYS
NM504
DESCRIPTION
1 5877 2090024 X Burner Housing Assembly
2 3709 X Air Shutter
3 3492 X Air Band
4 3493 X Escutcheon Plate
5941 X Adjusting Plate Assy
7 2456 2020012
X
PSC Drive Motor, 3450 RPM
9 2999 2090056 X Blower Wheel
10 2454 2090011 X Flexible Coupling
11 21844U 2060012 X Pump Clean Cut A2EA - 6520
51573 2090058 Suntec Pump c/w Soilenoid Valve
12 2256 Pump Nozzle Port Fitting
13 5636 Connector Tube Assembly
14 2442 2090025
X
Ignition Transformer (10,000 Volt)
51771U 2090064 X Electronic Ignitor (14,000 Volt)
17 3708 2090044 X Low Firing Rate Baffle
18 2090047 X 6" Electrode assembly
21 5770 X Junction Box Kit
26 3-666 X Knurled Locknut
27 2-13 X Nozzle Adapter - Single
28 1-49 X Electrode Clamp
36 3384 X 3-3/8U Static Plate
47 2110006 X Endcone , F3
31517 2110015 X Ceramic Heat Shield
2110016 X Ceramic Heat Shield Holder
48 2090040 6" SS Air Tube c/w Welded Flange
49 7456U 2010069 X Primary Relay, Honeywell R7184B
2090067 Primary Relay, Honeywell R7184P
3416 2080051 X Flange Gasket
51770 2090061 Field Controls AirBoot
7006 2010006 X Cad Cell C554A1455B Honeywell
2100130 Nozzle, Delavan 0.65 X 70
o
A
2100131 Nozzle, Delavan 0.75 X 70
o
A
2100128 X Nozzle, Delavan 0.85 X 70
o
A
2100132 Nozzle, Delavan 1.00 X 70
o
A
2100140 Delavan Stop Drop (Pro Tek)
