Newmac LFR-75 - Aero Burner Model Hf-Us-2 X Exploded Assembly

30

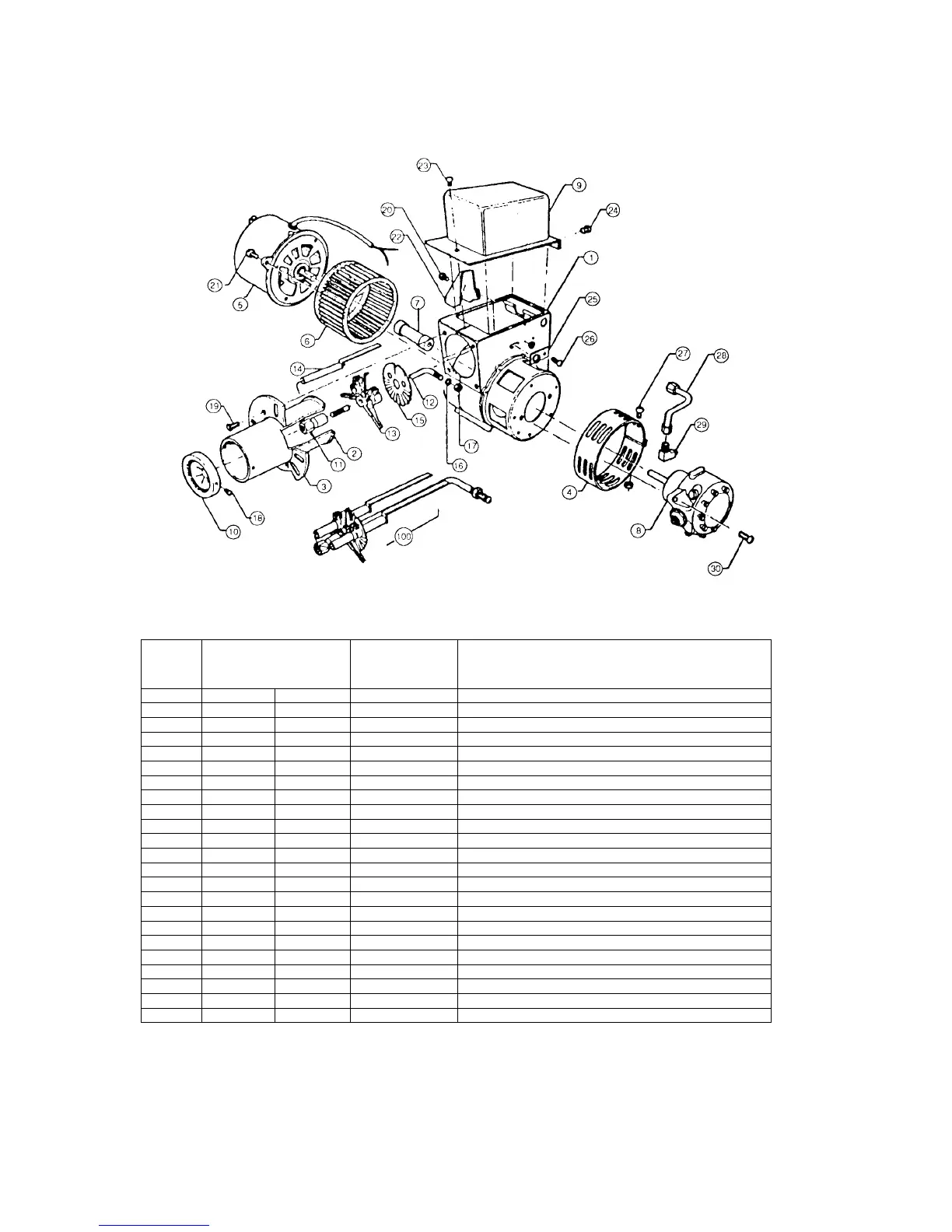

FIG. 21. AERO BURNER MODEL HF-US-2X EXPLODED ASSEMBLY
AERO BURNER MODEL HF-US-2X PARTS LIST
PART NUMBERITEM
NO.
AERO NEWMAC
QTY
REQ'D
DESCRIPTION
1 35222100 2090016
1
HF-US Housing
2 35040000
1
Blast Tube, 6"
3 35161000 2090017
1
Mounting Flange - Fixed
26200005
1
Flange Spacer (Specify 5" Insertion & 6" Air Tube)
4 2090013
1
Air Band, 3 Hole
5 2020011
1
Motor 1/7 hp, 3450 rpm
6 35152329 2090021
1
Fan, 508-229-HF-US-(S) SV
7 35171223 2090011
1
Coupling
8 2060004 2060004
1
Pump
9 35382740 2090002
1
Transformer, 2721-456
Electronic Ignitor
10 35141900 2110005
1
End Cone, AFC-2X
2090020
2
End Cone Screws, Stainless Steel
12 2090030
1
Tube, Oil Delivery 5"
19 35202202
4
Blast Tube Screw (specify length)
25 35330000
1
Slide Plate
26 35203901
1
Slide Plate Locking Screw
27 35193201
1
Air Band Locking Nut
28
1
Oil Line Assembly
33 35182400 2080050
1
Oil Burner Mounting Gasket 1/8"
100
1
Electrode Assembly
2010002
1
Primary Control, Honeywell R8184G
2010006
1
CAD Cell, Honeywell C554A1455B
