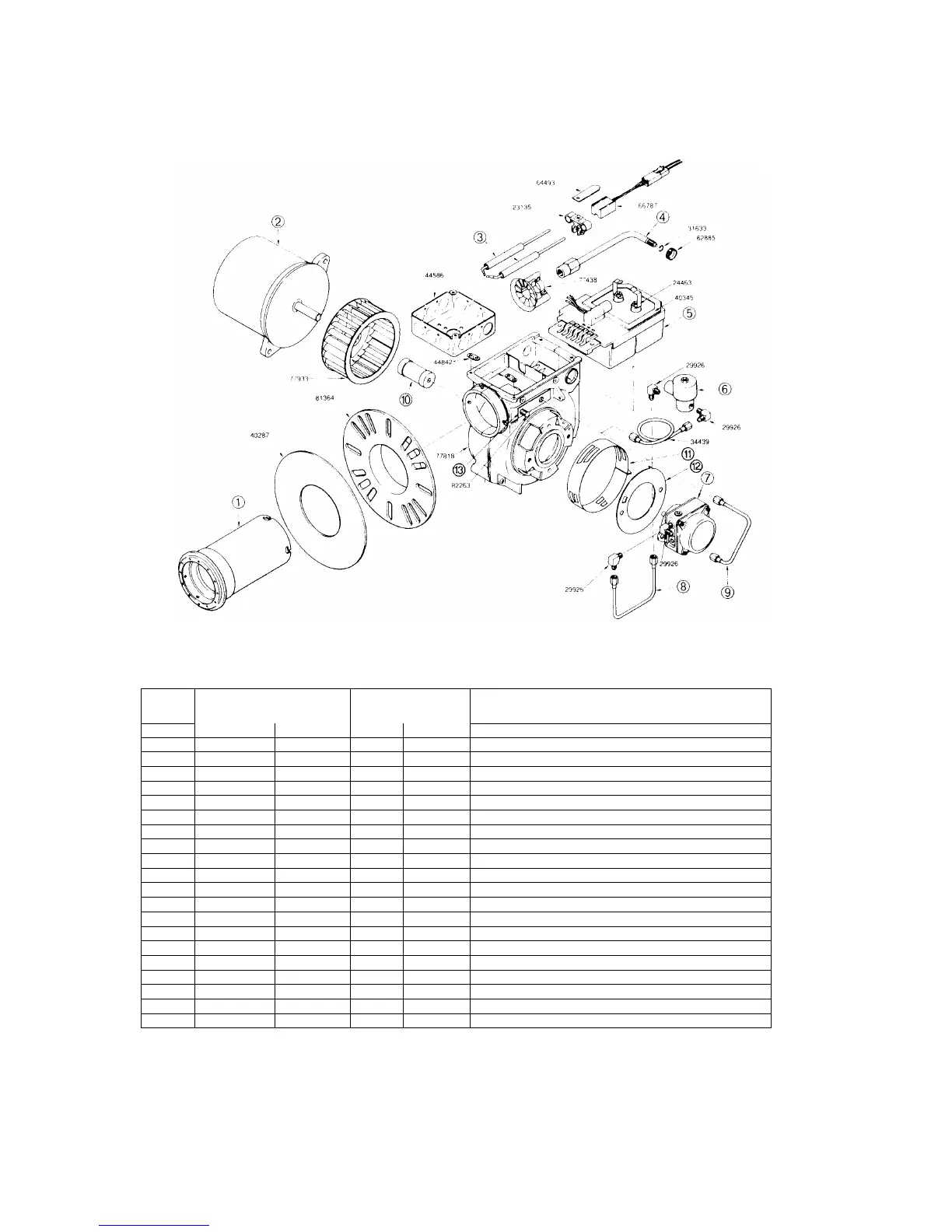

FIG. 22. CARLIN EZ-PRO EXPLODED ASSEMBLY
CARLIN EZ-PRO PARTS LIST
ITEM
NO.
PART NUMBER
QTY
REQ'D
DESCRIPTION
CARLIN NEWMAC EZ-PRO EZ-PRO PP
1 77735 X X 7" Air Tube c/w Welded Flange
2 98022 X X Motor, 1/6 hp, 3450 rpm
3 X X Electrode Wire, Set of 2
4 X X Nozzle Line / Adapter Assembly
5 41000SOCAS X X 14 kV Transformer / Ignitor
40200-02 X Primary Control, Interrupted Duty
60200-02 X Primary Control, Interrupted Duty, pre & post purge
6 X Oil Valve ( in pump)
7 22996 2060004 X Fuel Unit, Std. Single Stage, Suntec A2VA-7116
8 34397 X Oil Line, 3/16 OD, Std. Fuel Unit to Oil Valve
9 34470 X Oil Line, 3/16 OD, Std. Fuel Unit to Nozzle Line
10 75564 X X Coupling, For Std. Fuel Unit, Approx. 2-3/8" OAL
11 77594 X Air Band
12 77586
X
Air Shutter
13 81570 X X Head Positioning Bar Kit
4015300K X X Flame Detector
81695 X X CAD Cell Assembly c/w Harness
77933 X X Blower Wheel
40212 X X Flange Gasket
2090063 X Field Controls AirBoot (Field Controls p/n 4626802)
