May 2023 10

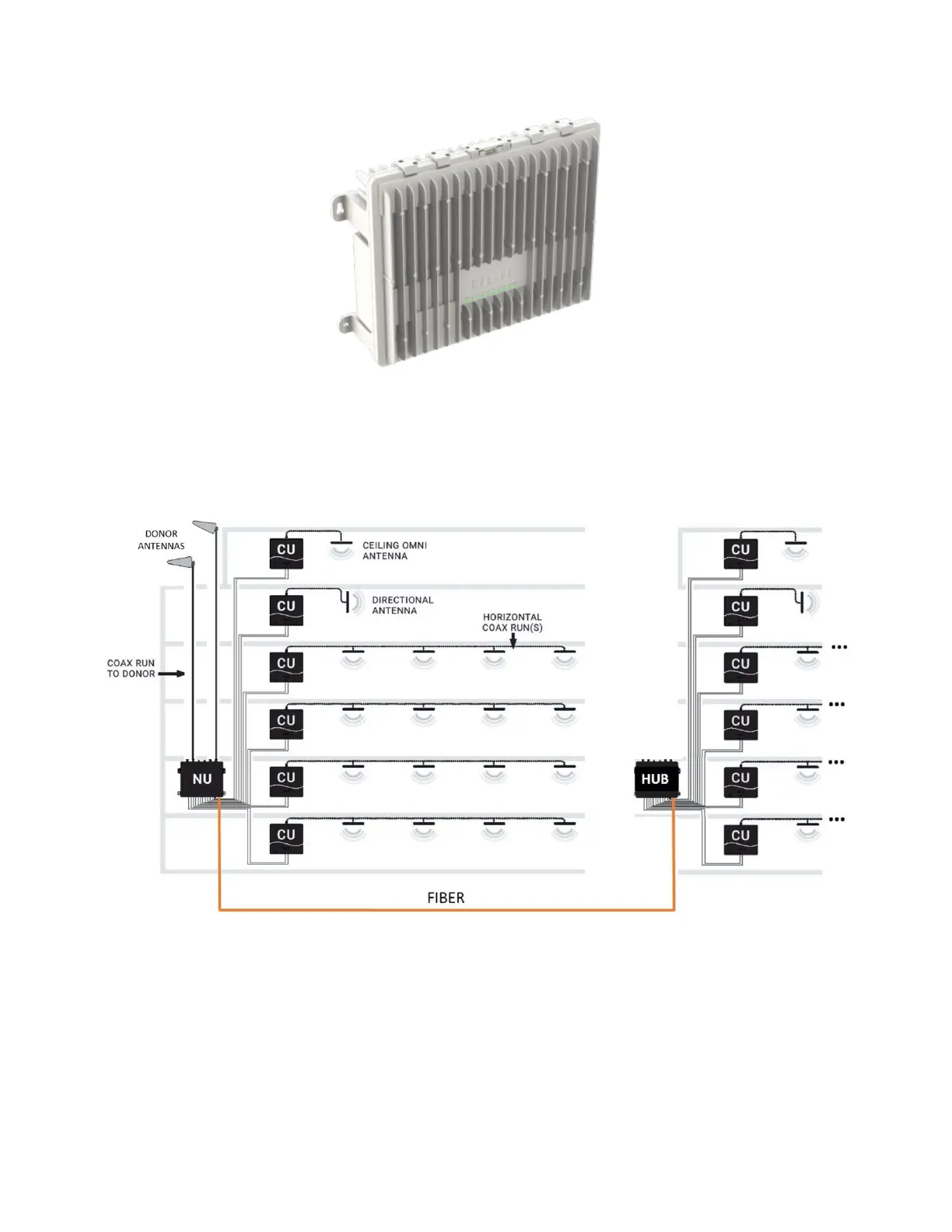

QUATRA EVO FIBER HUB
Model Number: Q40-Z1FNU
Figure 2: QUATRA EVO Installation with Fiber HUB
d. QUATRA 4000 Range Extender and Fiber Range Extender
The QUATRA Range Extender (QRE) unit is a device that extends the standard 100-meter
category cable length from NU to CU up to 200 meters. It is installed halfway along the NU to
CU cable and requires no external power. There are two RJ45’s on the input (NU) side, and
two RJ45’s on the output (CU) side. Traditional Ethernet extenders do not understand
QUATRA signaling and will not work with QUATRA.
