Dual Operator Mode
In this mode, connect a dedicated operator donor antenna to each donor port.

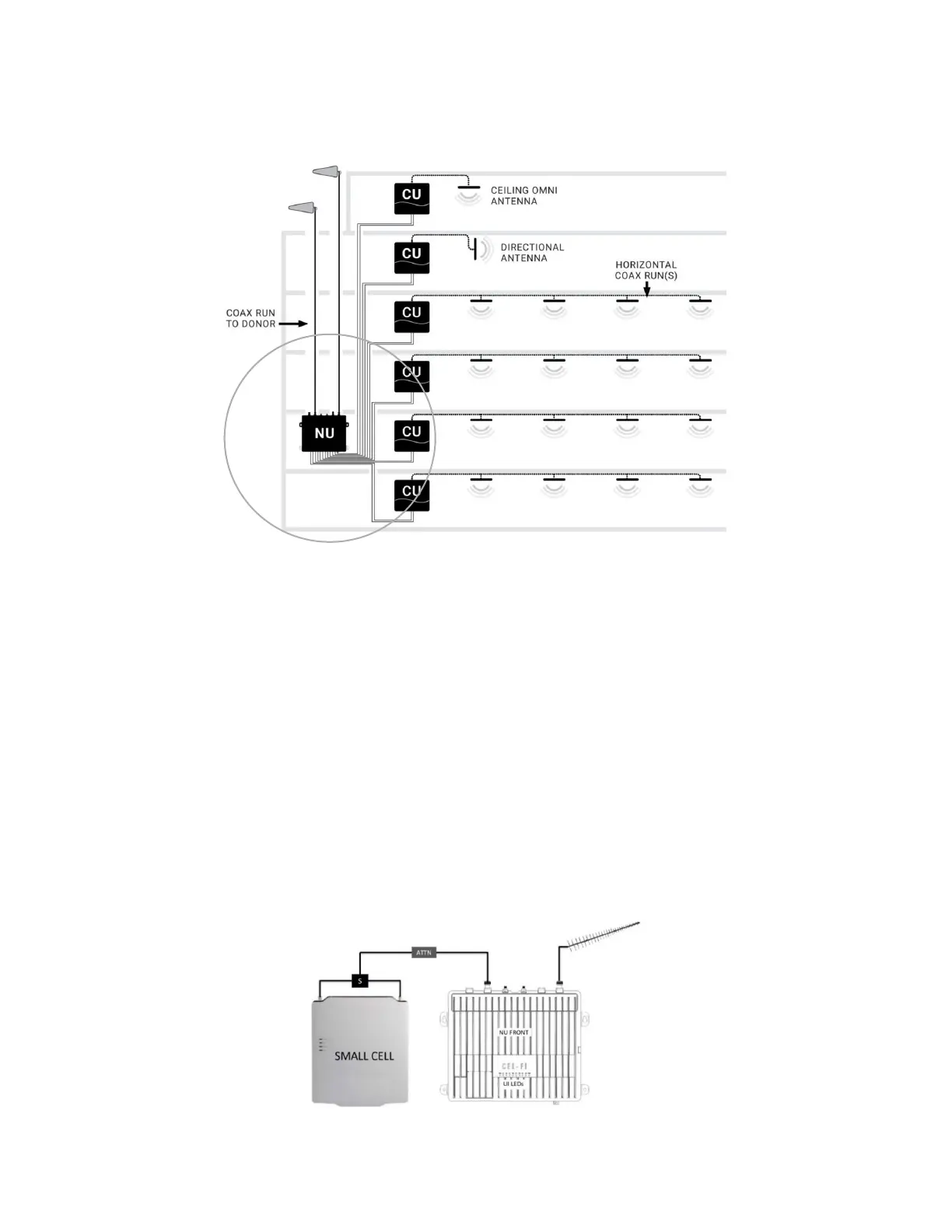

Figure 13: Antennas in Dual Operator Mode
Cellular Small Cell Donor Input
If a small cell is used as the donor source, it should be commissioned and its service verified
according to its setup procedure, so it is already providing tested service before EVO is
powered ON. The recommended input signal level for a small cell, after connection losses and
attenuation, should be between -75 and -80 dBm RSRP into the NU donor port for that
operator. It is easy to verify this power level using the Radio Data page on the WAVE Portal
once the system is operational. 60 dB is a typical attenuation level. However, your value may
be different depending on the output power of the small cell.
Note
For more information about connecting small cells, see the QUATRA Approved Small Cell
Guide.
Figure 14: Small Cell Donor Input
To Next Page
