NEXTIVITY CEL-FI QUATRA EVO - Network Unit (NU); Figure 1: QUATRA EVO Hardware Components and Ports

May 2023 8

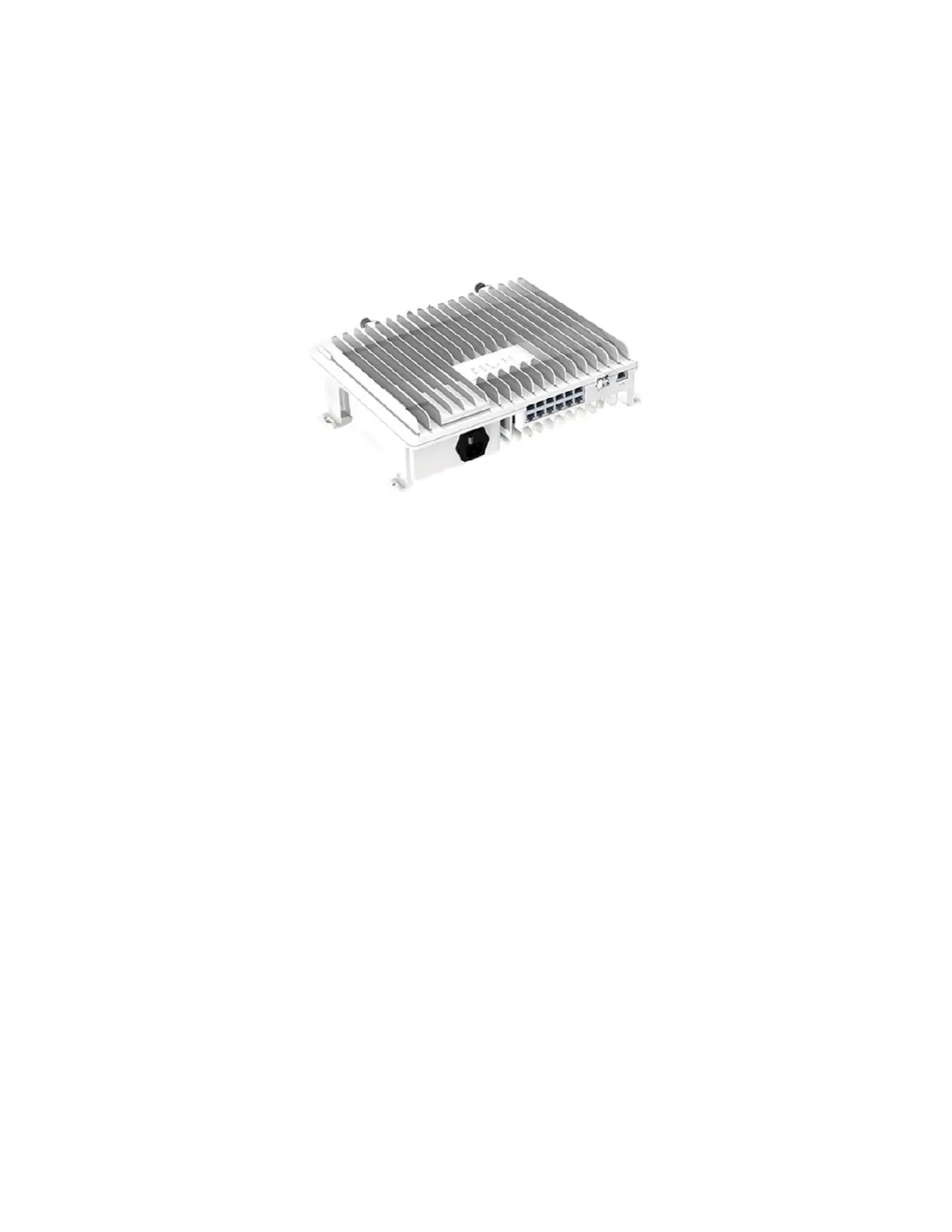

Figure 1: QUATRA EVO Hardware Components and Ports
a. Network Unit (NU)
The NU is the head end for the QUATRA EVO system. The signal sources (one for each
port/operator) are connected to the NU. Then they are digitized and distributed over two
Category cables to each CU, along with power (PoE) for the CU.
QUATRA EVO NU
Note
Only cellular signals may be connected to the donor ports. Other types of radio signals will not
work and may damage the system.
The NU has two (2) N-type(f) RF ports on the top for operator donor signals.
There are two (2) SMA(f) ports on the top of the NU. One functions as the external antenna
connection for the unit’s internal cellular modem (CELL), and the other is for GPS. The GPS
port is unused (future functionality).
Power
• AC Power Supply (inside the NU)
• AC power cord
Physical Interface
• RJ45 ports (13)
• Twelve RJ45 ports (2 for each of the 6 CUs)
• One LAN port for remote management
• SFP+ module dock (for use with a Fiber HUB)
• N-type(f) RF Ports (2) for Donor Antennas
• SMA(f) ports (2 for the internal LTE modem)
User Interface
• LED interface (front) to indicate system status
• Power
• CU1
• CU2
• CU3
