CU Unistrut Hardware Mounting Option
The CU may also be mounted using Unistrut mounting hardware configurations. Consult your
Unistrut supplier for hardware options to suit your installation environment.
The example below shows the CU being bolted to a Unistrut C-Channel using two 1/4-20
thread bolts.

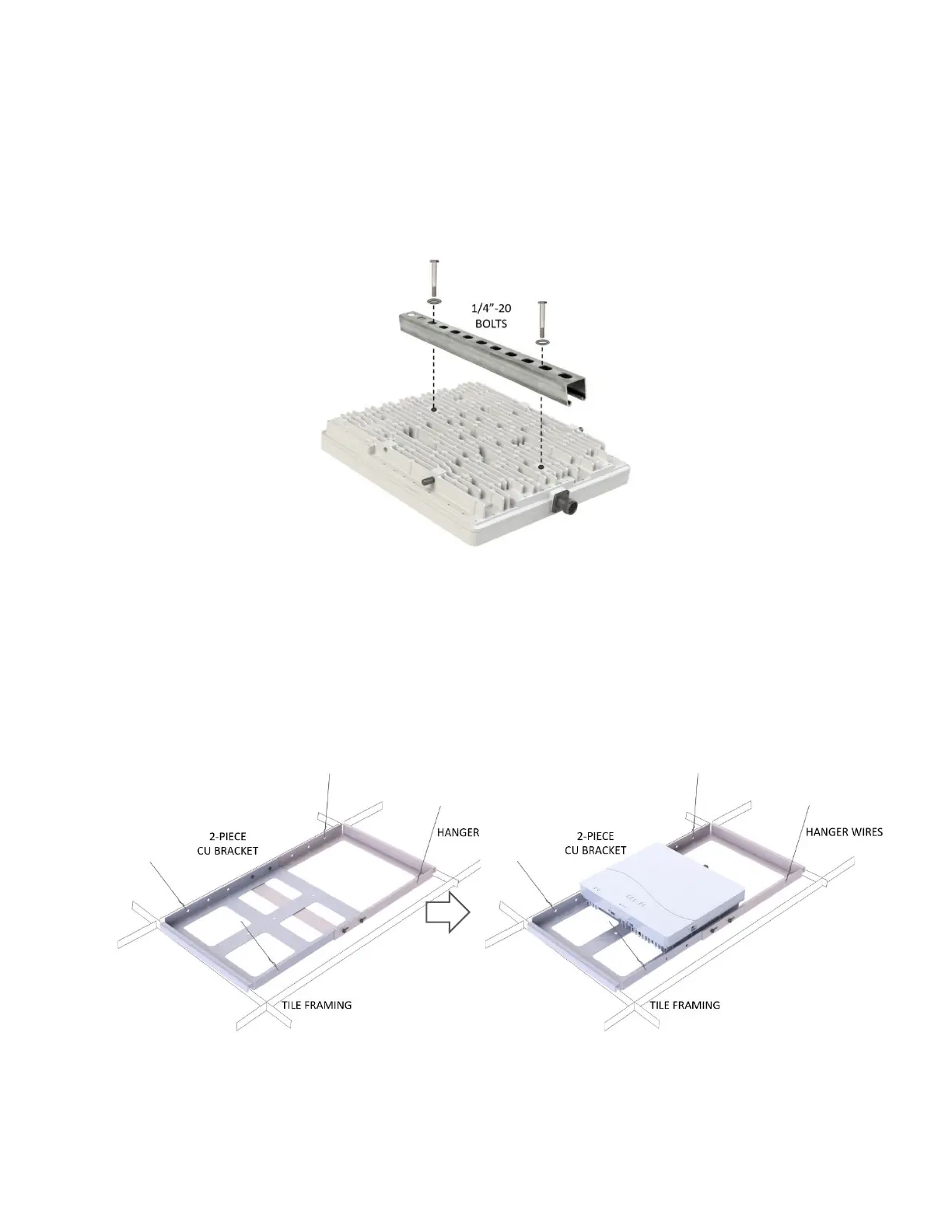

Figure 15: Unistrut Hardware Mounting Option
CU Ceiling Tile Bracket Mounting Option
The CU may be mounted on a suspended ceiling frame, using the optional Ceiling Tile
mounting bracket (see the bracket mounting instructions that come with the bracket kit).
Figure 16: Ceiling Tile Bracket Mounting Option
