NEXTIVITY CEL-FI QUATRA EVO - Real World Example 4; Figure 11: Larger 300 K Ft Building with Two NU+HUB Systems, Dual Operator

May 2023 18
d. Real World Example 4
This building uses two donor antennas - one for each operator. The donor feeds are split two
ways to feed the two systems. Each QUATRA EVO NU is connected to a HUB, and the NUs
and HUBs are connected to CUs throughout the building, and then each CU is connected to a
DAS field, providing coverage to the building.

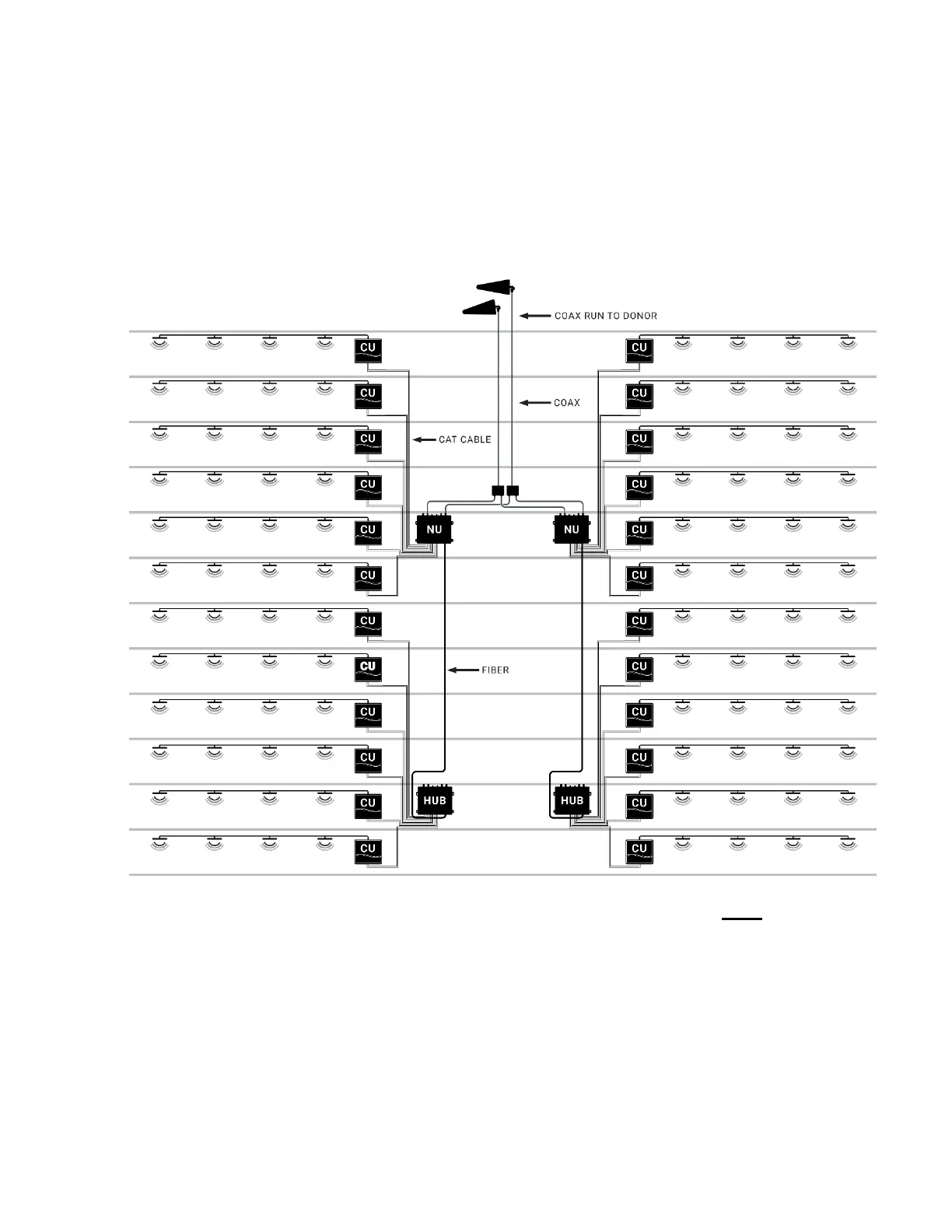

Figure 11: Larger 300K ft
2
Building with two NU+HUB Systems, Dual Operator
