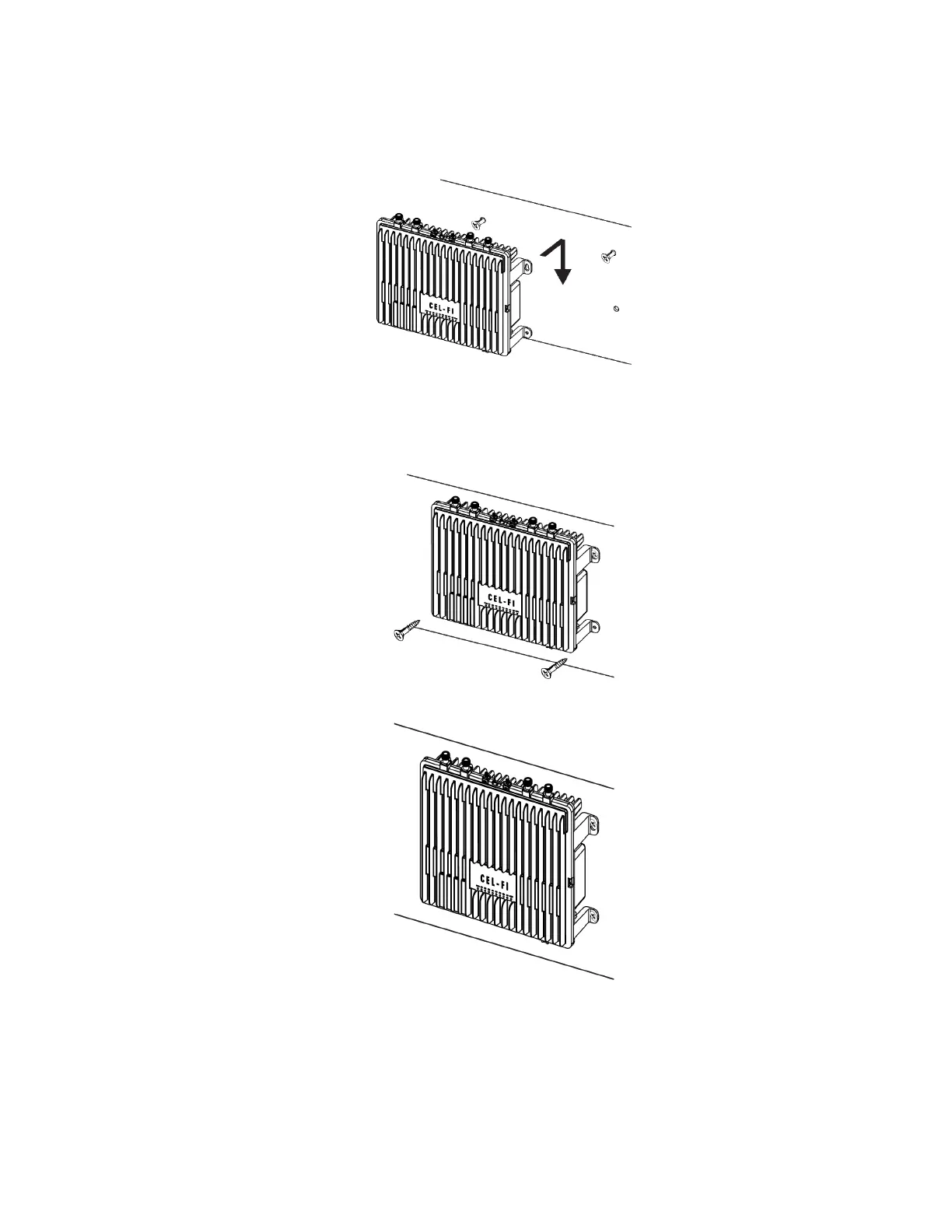

5. Partially screw in the top two screws.

6. Hang the unit from the top two screws, through the eyeholes. Adjust the unit to level and

then tighten the screws.

7. Screw in the bottom two screws.

8. Mounting is complete.
