GPS NAVIGATOR
B. IN A NEXUS NETWORK

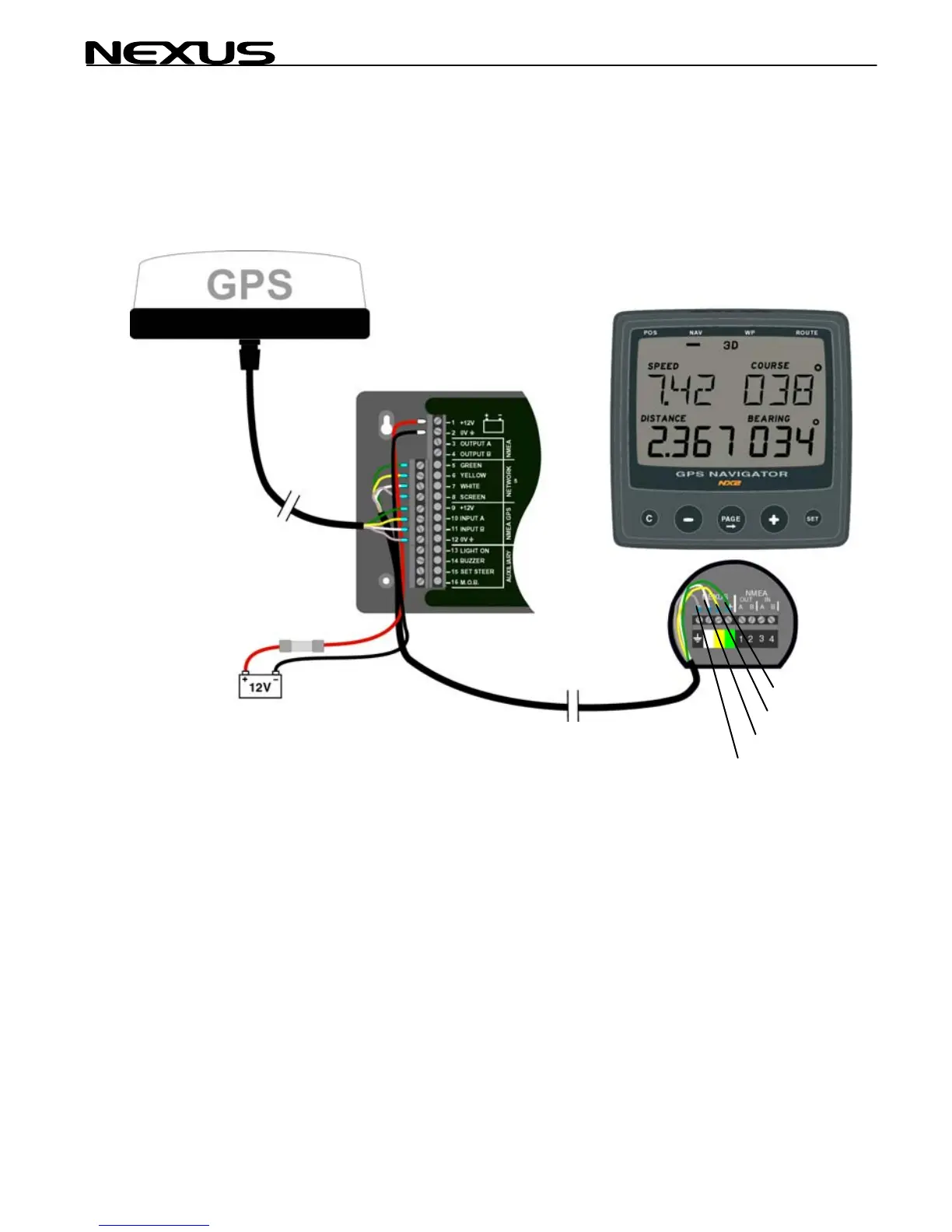

The NX2 GPS Navigator may be used in a Nexus Network. Connect the NX2 GPS
Antenna or other NMEA GPS direct to the Server. Connect the Nexus Network cable to
the instrument. Power will be supplied via the Nexus Network Cable
Green
Y
ellow
White
Screen
In this configuration, the instrument has to be set up as follows:
NEXUS POS see 7.7
MASTER see 7.7
