Nexus NX2 - Installation Alternatives

GPS NAVIGATOR
3.2 Installation alternatives

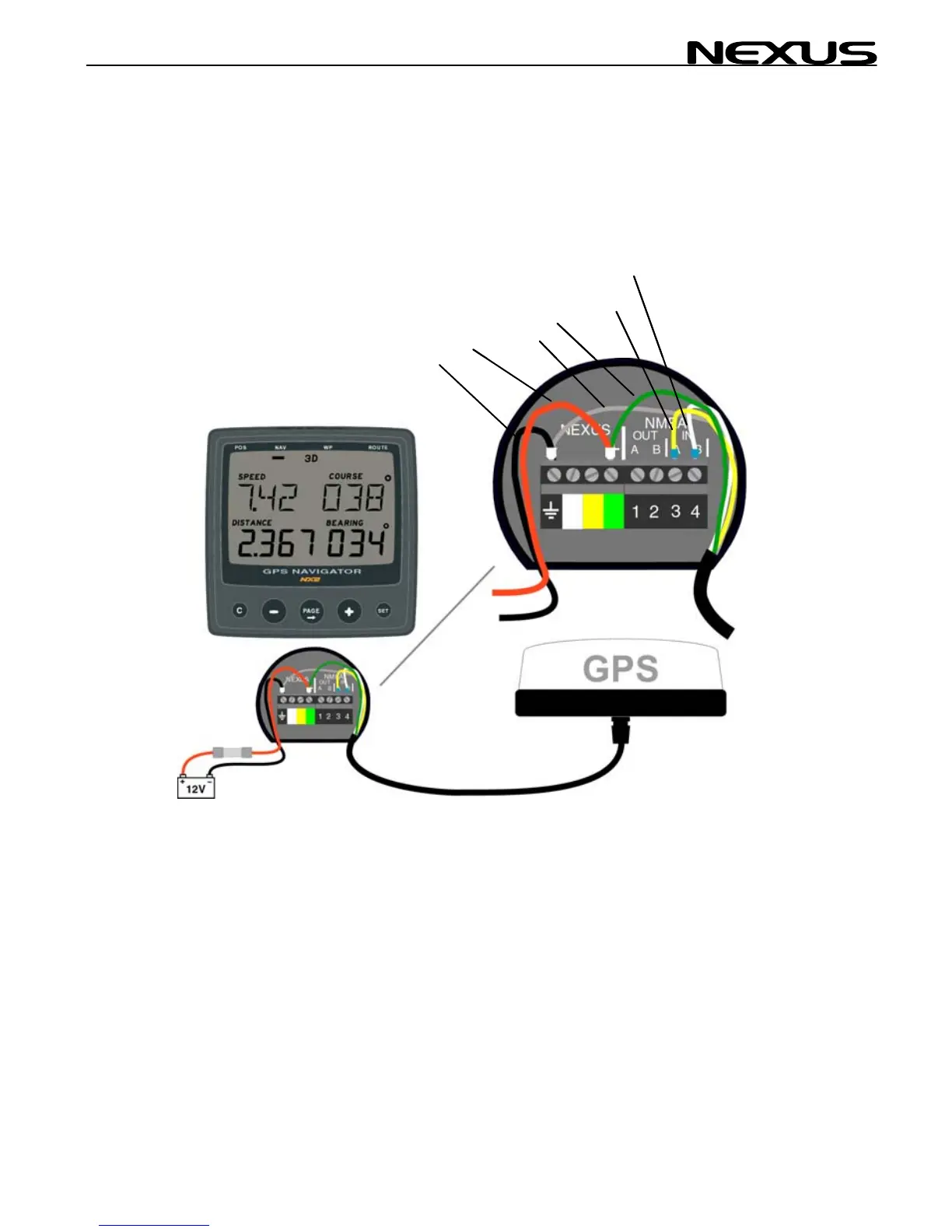

A. COMPLETE STANDALONE NX2 GPS NAVIGATOR INSTALLATION
The NX2 GPS Navigator may be used stand alone without a Nexus Network. Connect
the NX2 GPS Antenna or other NMEA GPS direct to the instrument. Power is also
connected according to figure below.
Green
Yellow
White
Screen
Red
Black
Green
Yellow
White
Screen
Red
Black
In this configuration, the instrument has to be set up as follows:
NMEA POS see 7.7
MASTER see 7.7
