GPS NAVIGATOR

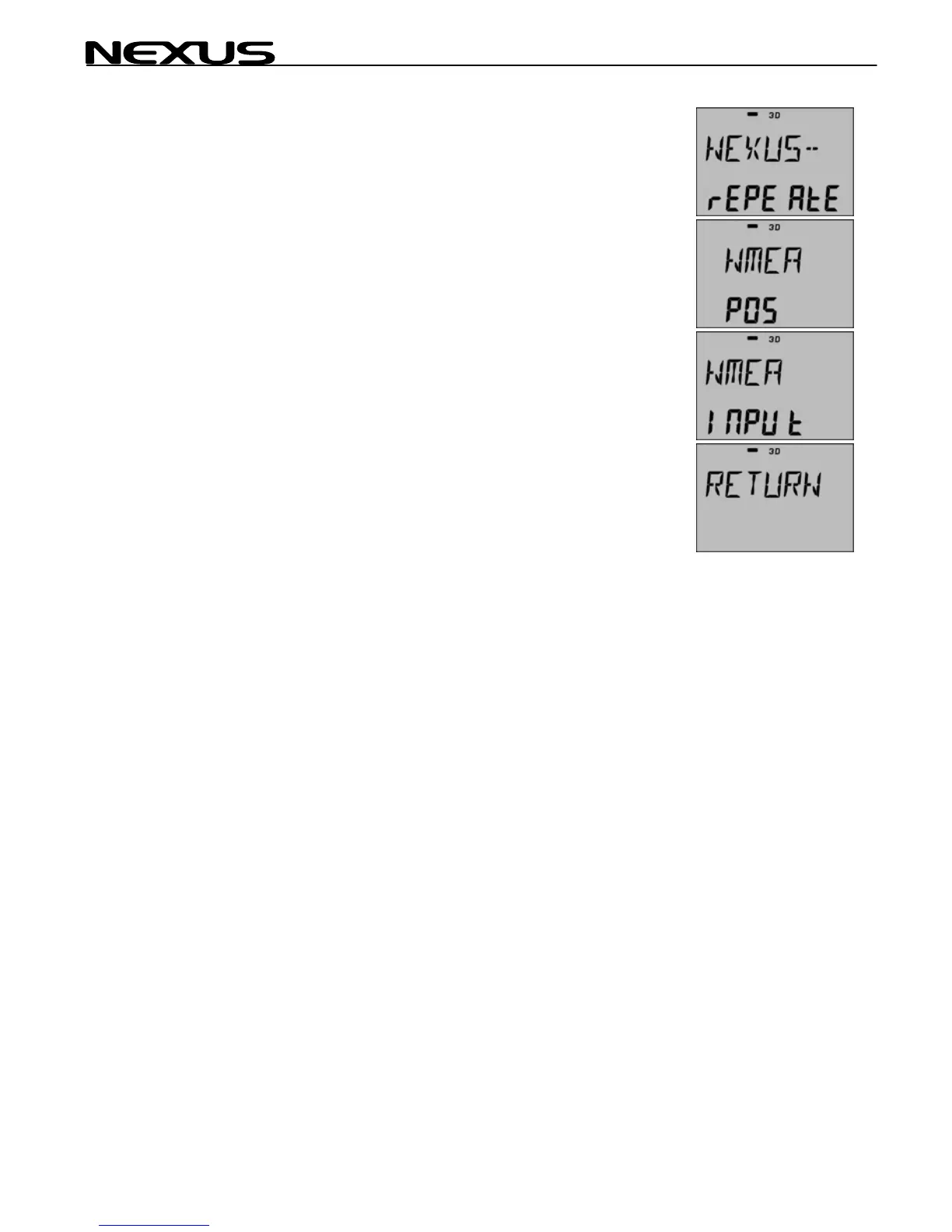

7.7 CONFIG
MASTER, NEXUS-REPEATER or NMEA-REPEATER.
NEXUS POS or NMEA P0S.
NMEA input or RTCM input.
RETURN from CONFIG setup.
Important! Always switch POWER OFF then ON to activate a
mode change.
MASTER
Primary navigation is performed in the MASTER instrument. Only
one MASTER instrument is allowed.
NEXUS REPEATER
The MASTER instrument can be remotely controlled from this
instrument. There is no difference in functions between a MASTER
and a REPEATER.
NMEA REPEATER
Navigation is processed by an external NMEA navigator and then
repeated here. The NMEA navigator is connected to THIS
instrument, you must therefore also select NMEA P05 as the
position source (see chapter 7.7.1). You can NOT use the GOTO
WP or ROUTES, as long as this instrument acts as a pure NMEA
repeater. The NMEA data is also converted and is sent out on the
NEXUS Network.
44
