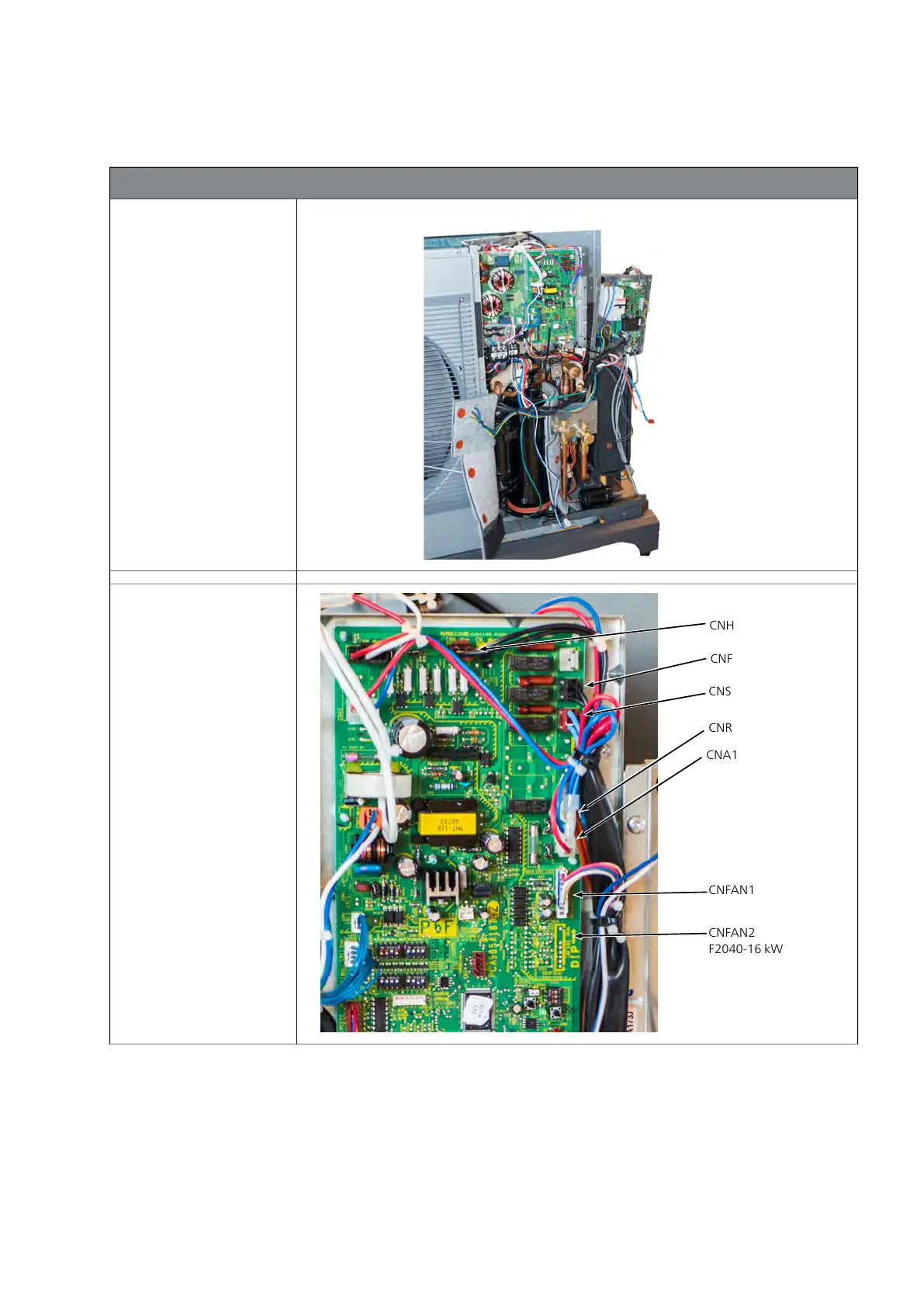

Compressor (CM)
5 Remove the compressor
insulation
CNFAN1
CNR
CNS
CNH
CNFAN2
F2040-16 kW
CNF
CNA1
6 Remove cable ties and dis-
connect the connectors in
the image (PWB1).
NIBE™ F2040Chapter 7 | Component replacement78
