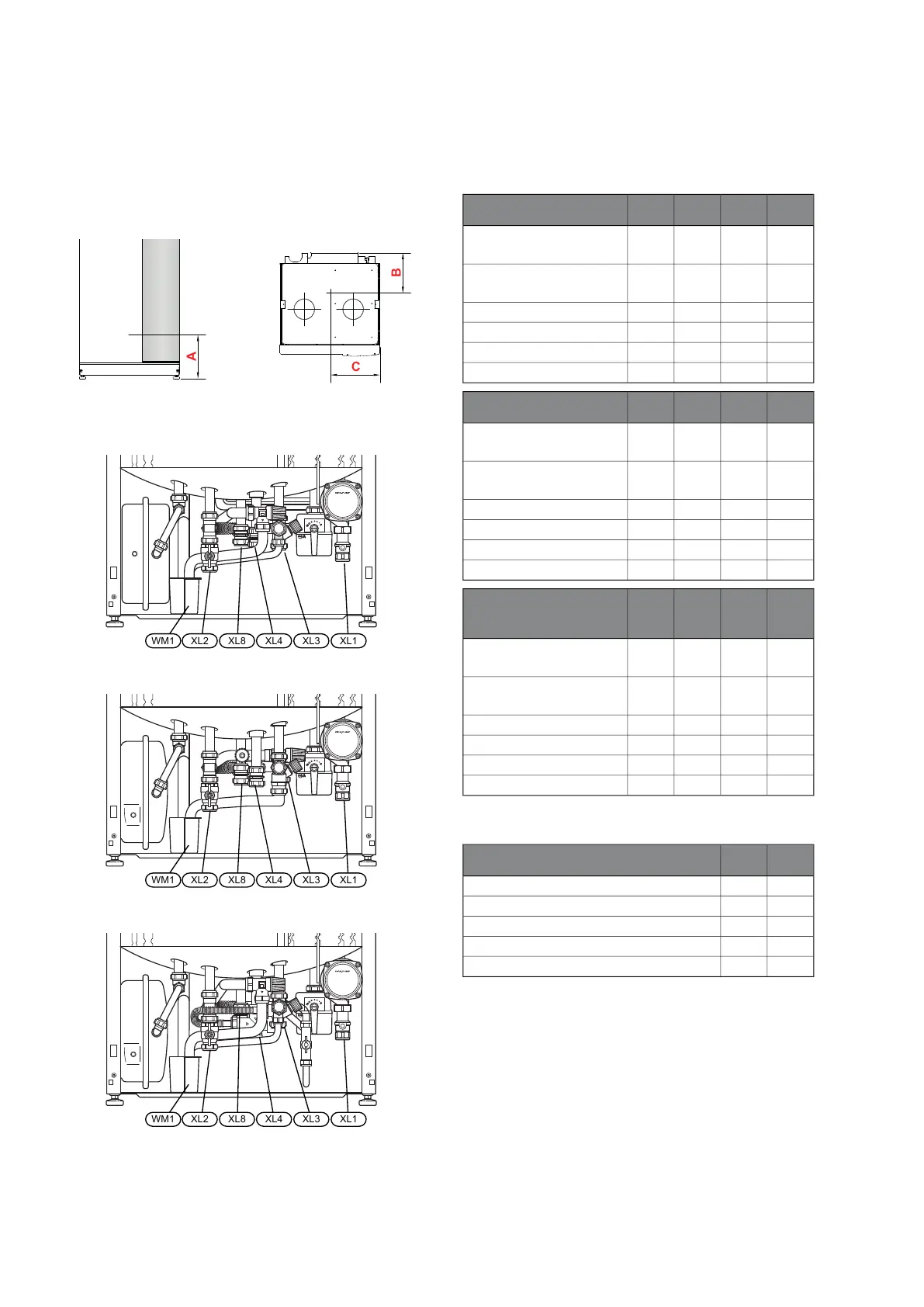

Nibe F370 Installer Manual

Dimensions and pipe connec-
tions
B
A
C
Copper
WM1 XL2 XL1XL3XL4XL8
Enamel
WM1 XL2 XL1XL3XL4XL8
Stainless steel
WM1 XL2 XL1XL3XL4XL8
Setting out dimensions
CBAConnection, copper
70400140(mm)XL1 Heating medium
supply
365425120(mm)XL2 Heating medium re-
turn
210455165(mm)XL3 Cold water
260400170(mm)XL4 Hot water
295290175(mm)XL8 Docking
42020060(mm)WM1 Drip tray
CBAConnection, enamel
70400140(mm)XL1 Heating medium
supply
365425120(mm)XL2 Heating medium re-
turn
210455165(mm)XL3 Cold water
260400170(mm)XL4 Hot water
295290175(mm)XL8 Docking
42020060(mm)WM1 Drip tray
CBAConnection, stainless
steel
70400140(mm)XL1 Heating medium
supply
365425120(mm)XL2 Heating medium re-
turn
210455165(mm)XL3 Cold water
260400140(mm)XL4 Hot water
295290175(mm)XL8 Docking
42020060(mm)WM1 Drip tray
Pipe dimensions
Connection
22(mm)XL1-XL2 Heating medium ext Ø
22(mm)XL3 Cold water ext Ø
22(mm)XL4 Hot water ext Ø
22(mm)XL8 Docking ext. Ø
32(mm)WM2 Overflow water discharge
15Chapter 4 | Pipe and ventilation connectionsNIBE™ F370

Nibe F370 Specifications

General

Type	Exhaust Air Heat Pump
Refrigerant	R290
Energy class	A++
Energy Efficiency Class (Space Heating, 35°C)	A++
Energy Efficiency Class (Space Heating, 55°C)	A+
Application	Residential
Hot Water Tank Volume	170 l
Heating Power	8.5 kW
