Nibe F370 Installer Manual

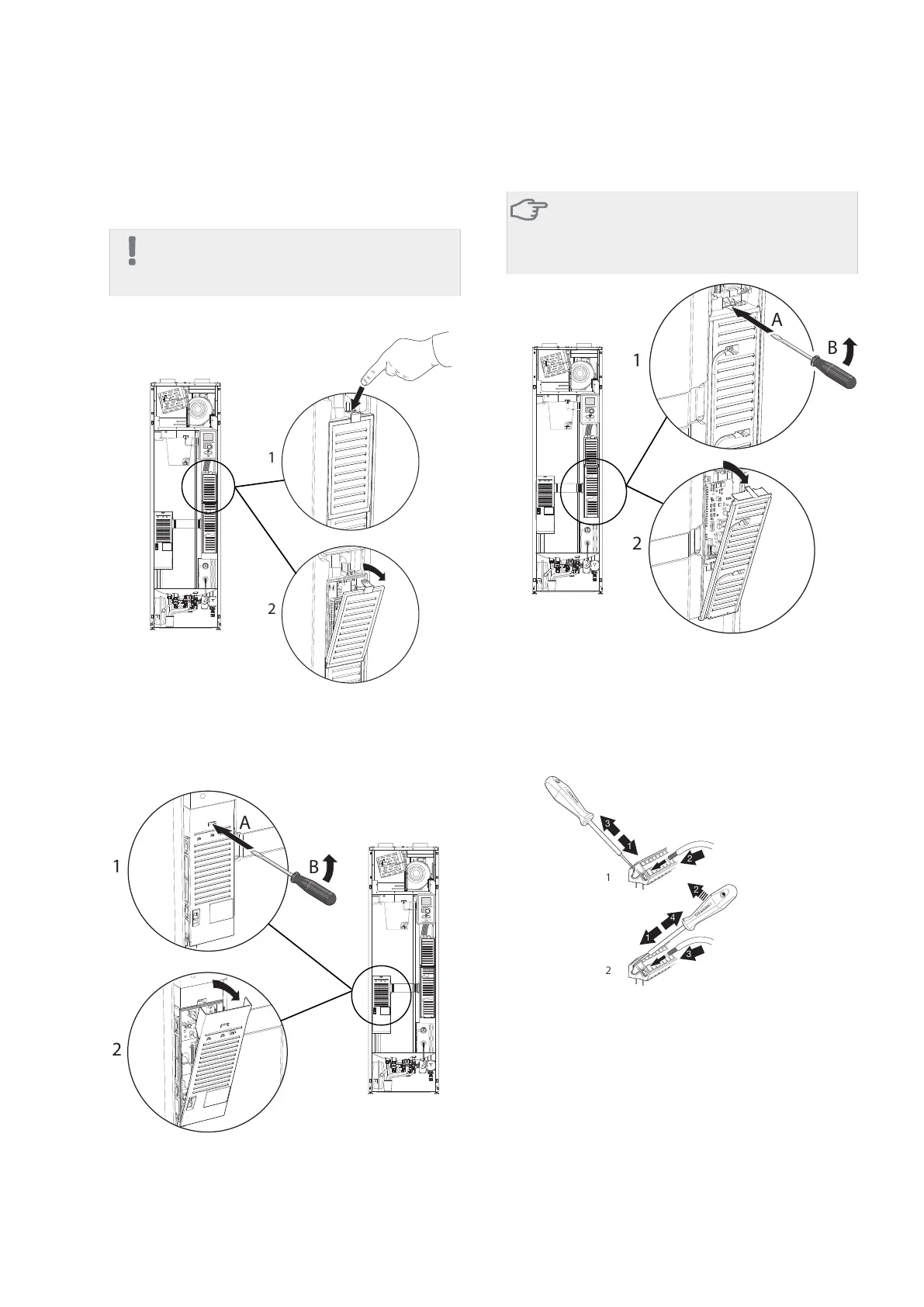

Accessibility, electrical connection
The plastic cap of the electrical boxes is opened using
a screwdriver.
NOTE
The cover for the input card is opened without
a tool.
Removing the cover, input circuit board
1
2
1. Push the catch down.
2. Angle out the cover and remove it.
Removing the cover, immersion heater circuit
board
1
2
A
B
1. Insert the screwdriver (A) and pry the catch care-
fully downwards (B).
2. Angle out the cover and remove it.
Removing the cover, base board
Caution
To remove the cover for the base board, the
cover for the input circuit board must first be
removed.
1
A
B
2
1. Insert the screwdriver (A) and pry the catch care-
fully downwards (B).
2. Angle out the cover and remove it.
Cable lock
Use a suitable tool to release/lock cables in the heat
pump terminal blocks.
LEK
1
1
2
2
3
3
1
2
3
3
4
1
2
LEK
1
1
2
2
3
3
1
2
3
3
4
1
2
1
2
NIBE™ F370Chapter 5 | Electrical connections20

Nibe F370 Specifications

General

Type	Exhaust Air Heat Pump
Refrigerant	R290
Energy class	A++
Energy Efficiency Class (Space Heating, 35°C)	A++
Energy Efficiency Class (Space Heating, 55°C)	A+
Application	Residential
Hot Water Tank Volume	170 l
Heating Power	8.5 kW
