Electrical connection
FIGHTER 1240
18

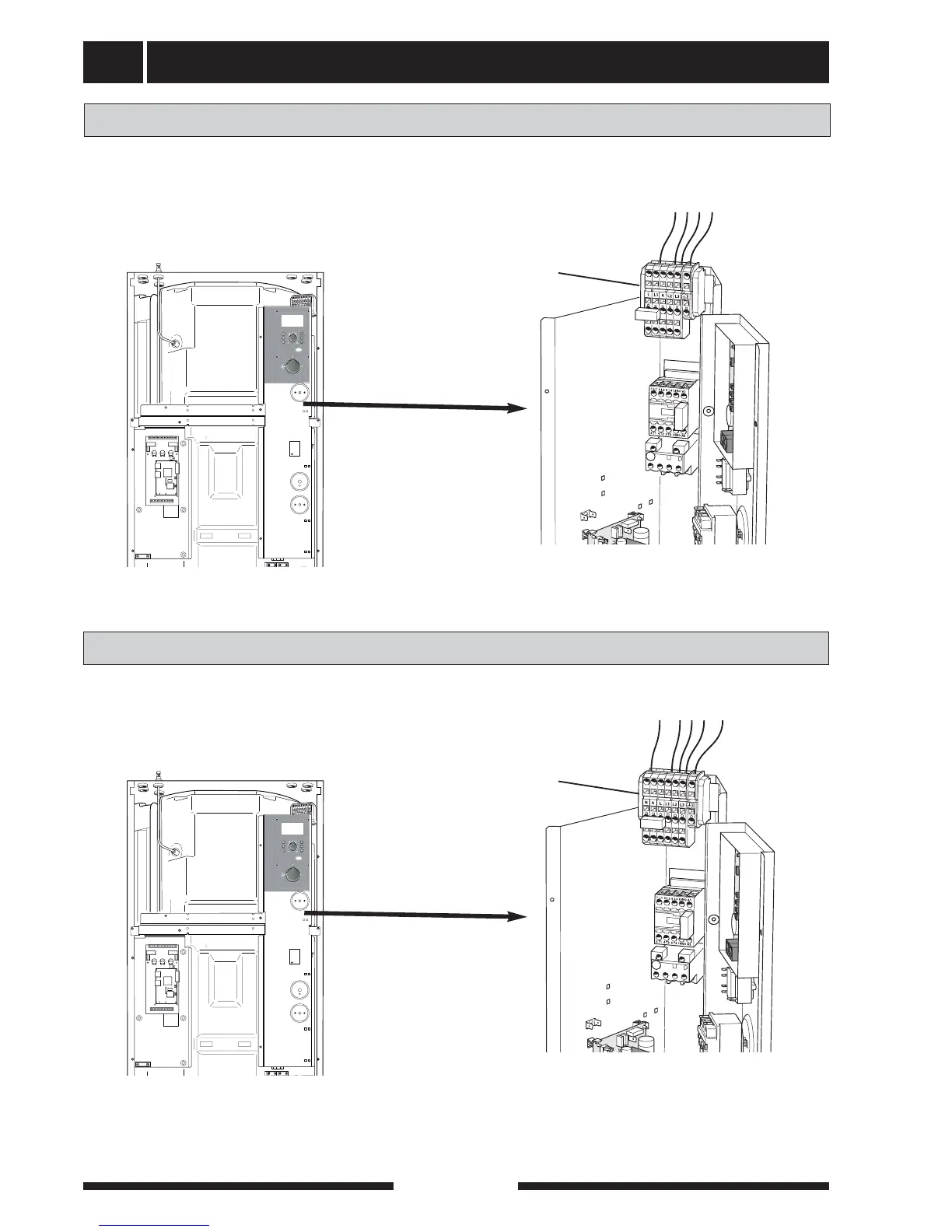

Connection on delivery
The heat pump is connected on terminal block -X9 to
3 x 400V + N + PE via the junction box with fuses.
Connection on delivery 3 x 400 V + N + PE
Connection on delivery
3 x 230 V: The heat pump is connected on terminal
block -X9 to 3 x 230 V + PE via the junction
box with fuses.
Connection on delivery 3 x 230 V (only applies to Norway)
L1 L2 L3
PE
-X9
L1 N L2 L3
PE
-X9
