Electrical connection
FIGHTER 1240
20

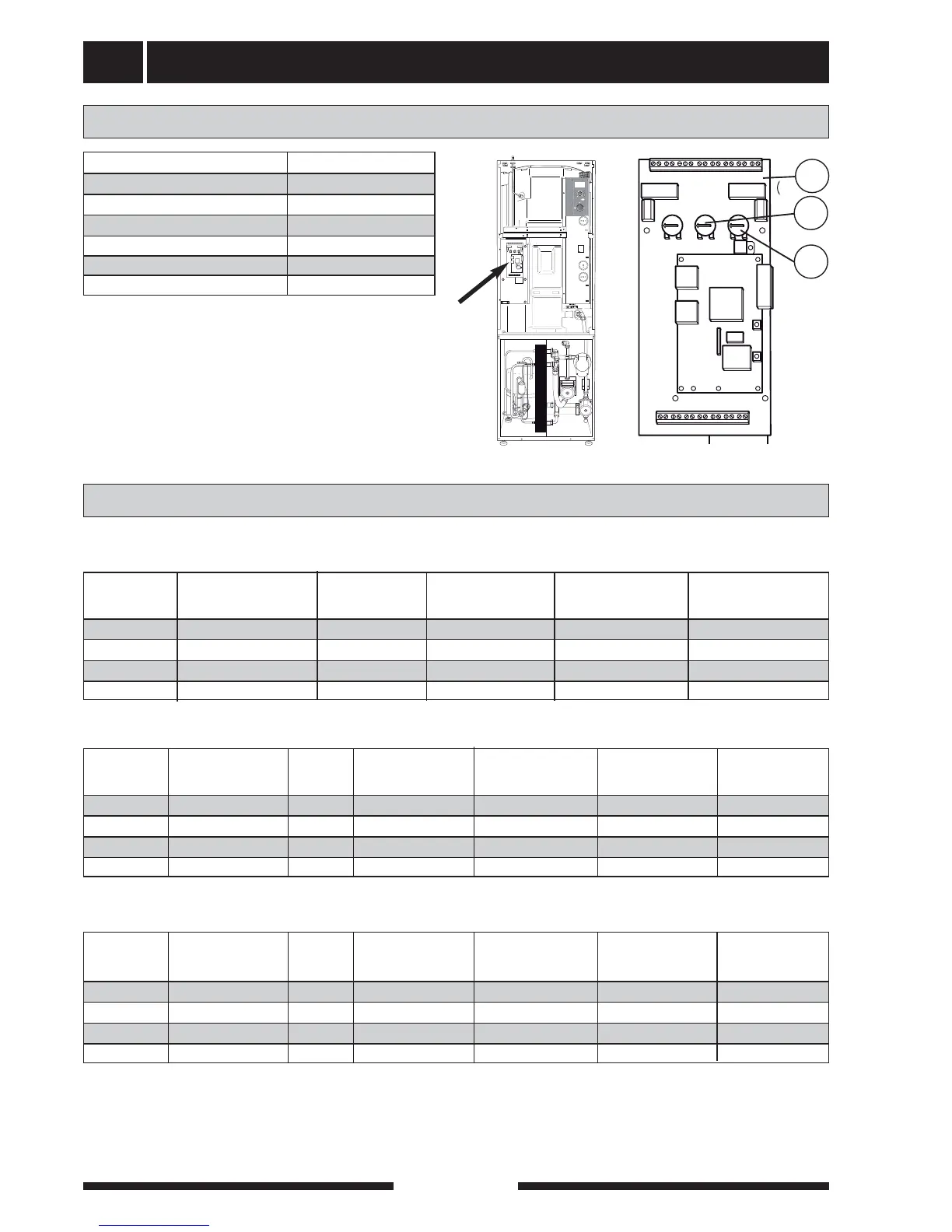

Max hot water temperature
The setting of the different maximum hot water tem-
peratures is done using the knob (102) on the load
monitor card (2). The setting can be checked in the
menu 9.2.1.
*Factory setting.
65 C*
75 E
50 A
Boiler temperature Knob position
55 B
70 D
80 F
Max phase current
The setting of the different max outputs is done using
the knob (101) on the load monitor card (2). The set-
ting can be checked in the menu 8.3.5.
*Factory setting.
9 6 C* 14,4 15,7 16,6 18,1
9 0 A 5,8 7,2 8,0 9,5
Max electrical Immersion heater, Knob Max phase (A) Max phase (A) Max phase (A) Max phase (A)
output output (kW) position FIGHTER 1240 -6 FIGHTER 1240 -8 FIGHTER 1240 -10 FIGHTER 1240 -12
9 3 B 10,1 11,5 12,3 13,8
9 9 D 18,8 20,2 21,0 22,5
6 4 C* 26,8 34,2 40,7
6 0 A 9,6 17,0 23,5
Max electrical Immersion heater, Knob position Max phase (A) Max phase (A) Max phase (A)
output output (kW) FIGHTER 1240-5 FIGHTER 1240 -8 FIGHTER 1240 -12
6 2 B 18,2 25,6 32,1
6 6 D 35,6 43,0 49,5
6 4 C* 21,9 24,3 26,6 32,3
6 0 A 9,5 12,0 14,3 20,0
Max electrical Immersion heater, Knob Max phase (A) Max phase (A) Max phase (A) Max phase (A)
output output (kW) position FIGHTER 1240 -6 FIGHTER 1240 -8 FIGHTER 1240 -10 FIGHTER 1240-12
6 2 B 15,7 18,2 20,5 26,2
6 6 D 28,2 30,7 33,0 38,7
3 x 230 V
230 V
3 x 400 V
LEK
101
102
2
